5059-0-15-80-34-01-10-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 5059-0-15-80-34-01-10-0

Preview

5059-0-15-80-34-01-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size107KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

5059-0-15-80-34-01-10-0 Overview

PCB Terminal

5059-0-15-80-34-01-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	5059
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

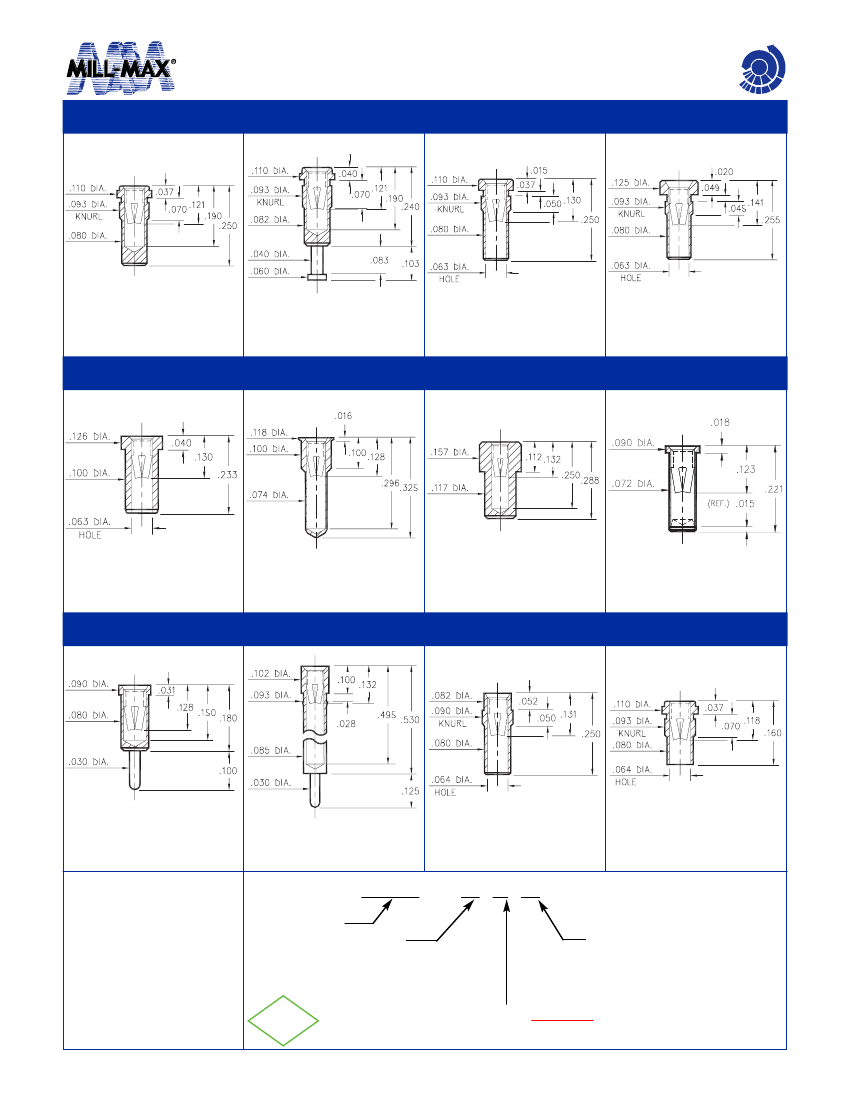

PIN RECEPTACLES

for .032” - .046” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

0359

0358

0360

0343

0359-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0358-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0360-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0343-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0356

6659

0347

0329

0356-0-15-XX-34-XX-10-0

Solder mount in .102 min.

mounting hole

6659-0-15-XX-34-XX-10-0

Solder mount in .102 min.

mounting hole

0347-0-15-XX-34-XX-10-0

Solder mount in .120 min.

mounting hole

0329-0-15-XX-34-XX-10-0

Solder mount in .075 min. mounting

hole. “knock out” bottom.

0814

5059

8360

9359

0814-0-15-XX-34-XX-04-0

Solder mount in .082 min.

mounting hole

5059-0-15-XX-34-XX-04-0

Press-fit in .090 mounting hole

8360-0-15-XX-34-XX-10-0

Press-fit in .087 mounting hole

9359-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - 0 - 15 - XX - 34 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200μ” TIN/LEAD OVER NICKEL

80

200μ” TIN OVER NICKEL

15

10μ” GOLD OVER NICKEL

SPECIFY CONTACT FINISH:

01

200μ” TIN/LEAD OVER NICKEL

80

200μ” TIN OVER NICKEL

27

30μ” GOLD OVER NICKEL

CONTACT

#34

CONTACT (DATA ON PAGE 212)

w w w. m i l l - m a x . c o m

152

516-922-6000

5059-0-15-80-34-01-10-0 Related Products

	5059-0-15-80-34-01-10-0	MFR-50BRD184R	MFR-50BRD72597R	MFR50SDBCMB196R
Description	PCB Terminal	Fixed Resistor, Metal Film, 0.5W, 184ohm, 350V, 0.1% +/-Tol, 25ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Metal Film, 0.5W, 597ohm, 350V, 0.1% +/-Tol, -25,25ppm/Cel,	Fixed Resistor, Metal Film, 0.5W, 196ohm, 300V, 0.5% +/-Tol, -15,15ppm/Cel,
Is it Rohs certified?	incompatible	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Objectid	-	1619637423	887149883	887729335
Country Of Origin	-	Mainland China	Mainland China	Mainland China
YTEOL	-	6.85	6.8	7
structure	-	Tubular	Tubular	Cylindrical
JESD-609 code	-	e3	e3	e3
Lead diameter	-	0.6 mm	0.6 mm	0.55 mm
Number of terminals	-	2	2	2
Maximum operating temperature	-	155 °C	155 °C	155 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
Package diameter	-	3.3 mm	3.3 mm	2.4 mm
Package length	-	9 mm	9 mm	6.3 mm
Package shape	-	TUBULAR PACKAGE	TUBULAR PACKAGE	CYLINDRICAL PACKAGE
Package form	-	Axial	Axial	Axial
method of packing	-	TR, PAPER	TR	Bulk
Rated power dissipation(P)	-	0.5 W	0.5 W	0.5 W
resistance	-	184 Ω	597 Ω	196 Ω
Resistor type	-	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	-	MFR-50(BCTOL)	MFR-50(BCTOL)	MFR
technology	-	METAL FILM	METAL FILM	METAL FILM
Temperature Coefficient	-	25 ppm/°C	25 ppm/°C	15 ppm/°C
Terminal surface	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Tolerance	-	0.1%	0.1%	0.5%
Operating Voltage	-	350 V	350 V	300 V
