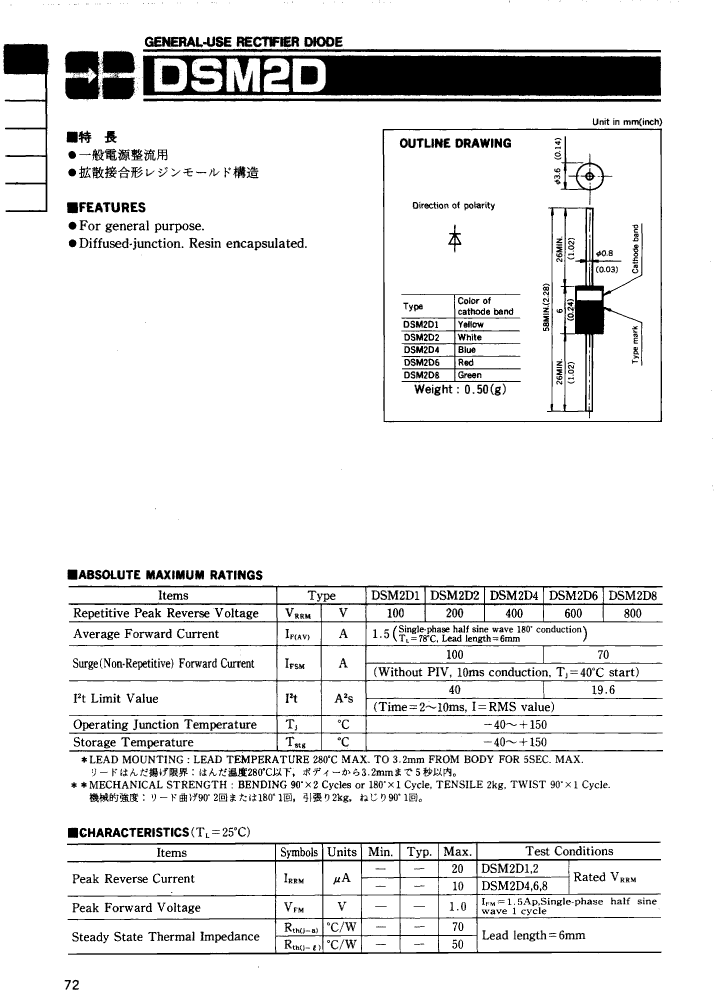

DSM2D4 datasheet, PDF - EEWORLD Datasheet

DSM2D4: Description1.5 A, 400 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size126KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

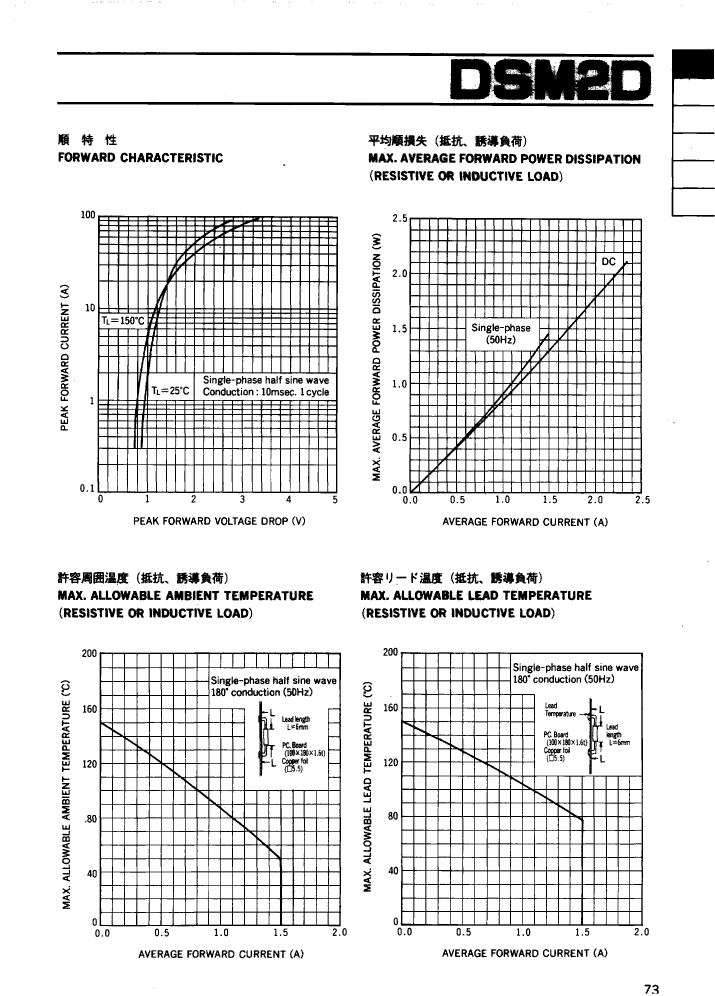

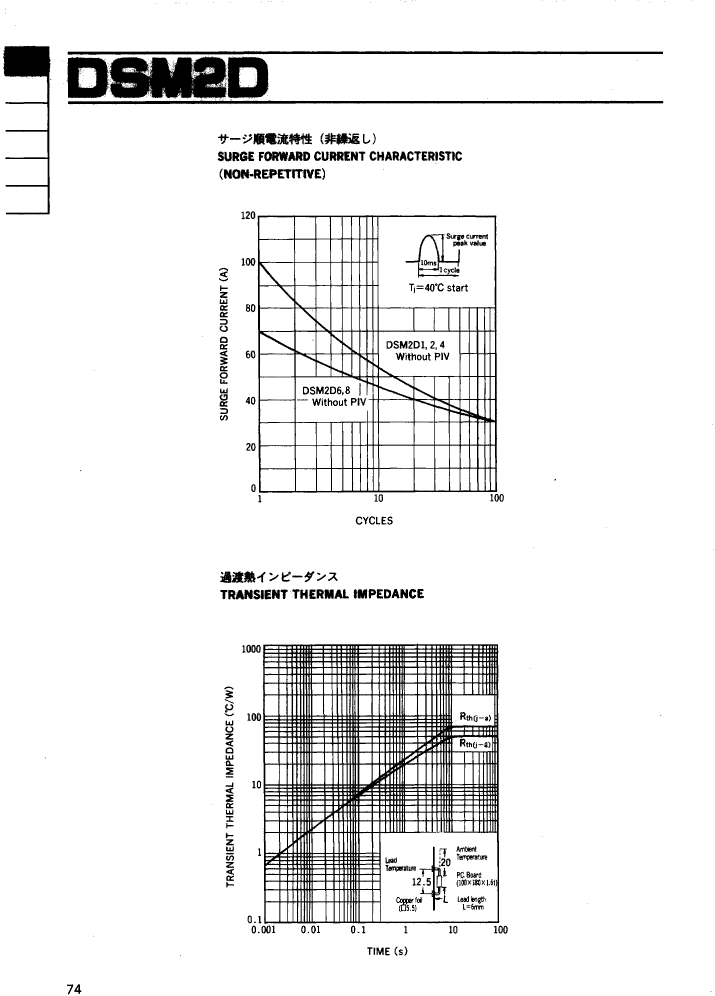

DSM2D4 Overview

1.5 A, 400 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2

Parameter Name	Attribute value
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	compliant
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum output current	1.5 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	DSM2D4	DSM2D1	DSM2D2	DSM2D8	DSM2D6
Description	1.5 A, 400 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	1.5A, 100V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	1.5 A, 200 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	1.5 A, 800 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	1.5A, 600V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	PLASTIC PACKAGE-2	O-LALF-W2
Contacts	2	2	2	2	2
Reach Compliance Code	compliant	unknown	compliant	compliant	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	100 V	200 V	800 V	600 V
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	-
