5343-3-06-1

Description
Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Latch & Eject
CategoryThe connector    The connector
File Size210KB,1 Pages
ManufacturerConexcon Group
Environmental Compliance
Download Datasheet Parametric View All

5343-3-06-1 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Latch & Eject

5343-3-06-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerConexcon Group
Reach Compliance Codeunknown
body width0.327 inch
subject depth0.701 inch
body length0.956 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability50 Cycles
Insulation resistance1000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number5343
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.9944 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts6
Base Number Matches1

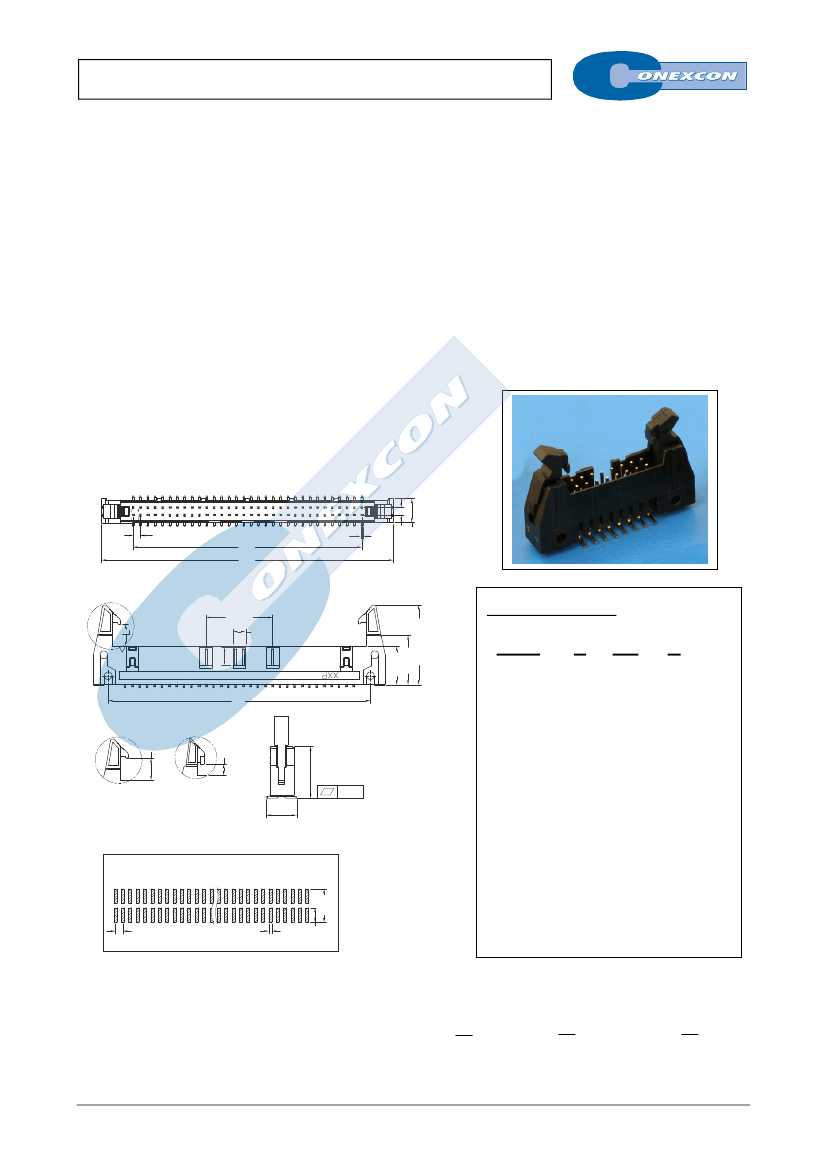

DUAL ROW TOP ENTRY SMT HEADER
5343 SERIES.
2.54 x 2.54 mm. (0.100 x 0.100”) pitch. With eject latch levers.
General Features
Electrical Features
Available in 6, 8, 10, 14, 16, 20, 24, 26, 30, 34, 40, 50,
60 and 64 circuits
Mates with IDC connectors 5435 and crimp housing
2646 series
Gold plated 0.64 mm square pin
Fully shrouded with polarized slot
Available long and short latch levers
Voltage rating: < 250V
Current rating: < 2 A
Contact resistance: < 20 mΩ
Dielectric withstanding Voltage: 500 V AC/minute
Insulation resistance: >1000 MΩ
Materials
Insulator: PBT UL 94V-0
Terminal: Brass
Operating temperature. -25ºC to +85ºC
RoHS compliant
Mechanical Features
Pin retention force to insulator: > 1.20 Kgf
Durability: 50 Cycles
Dimension Information
2.54±0.10
A
B
0.64
2.54±0.10
8.30±0.20
4.35
6.00
13.30
17.00
27.50±0.30
22.86
Ordering Information:
5343 -
1
T-
2
XX-
3
S
4
C
Long Latch
7.65
Short Latch
4.00
1. Connector Series
2. (T) Contact Plating
17.8±0.25
015
T =
2.
Tin plated
T =
3.
Gold flash over nickel
Recommended Finish
T =
5.
15µ” gold over nickel
T =
6.
30µ” gold over nickel
10.50±0.25
11.00
3. (XX) Number of circuits
RECOMMENDED PCB LAYOUT (Top Side)
(PCB Tolerance ±0.05)
Available in 6 through 64 circuits
4. (S) Latch Type
5.00
2.54
1.02
S =
1.
Short latch
S =
2.
Long latch
Dimensions:
(In mm.)
A
½
2.54
XX
1
2
B
½
2.54
XX
16.66
2
C
½
2.54
XX
6.46
2
(XX) = Number of circuits
A-XX
