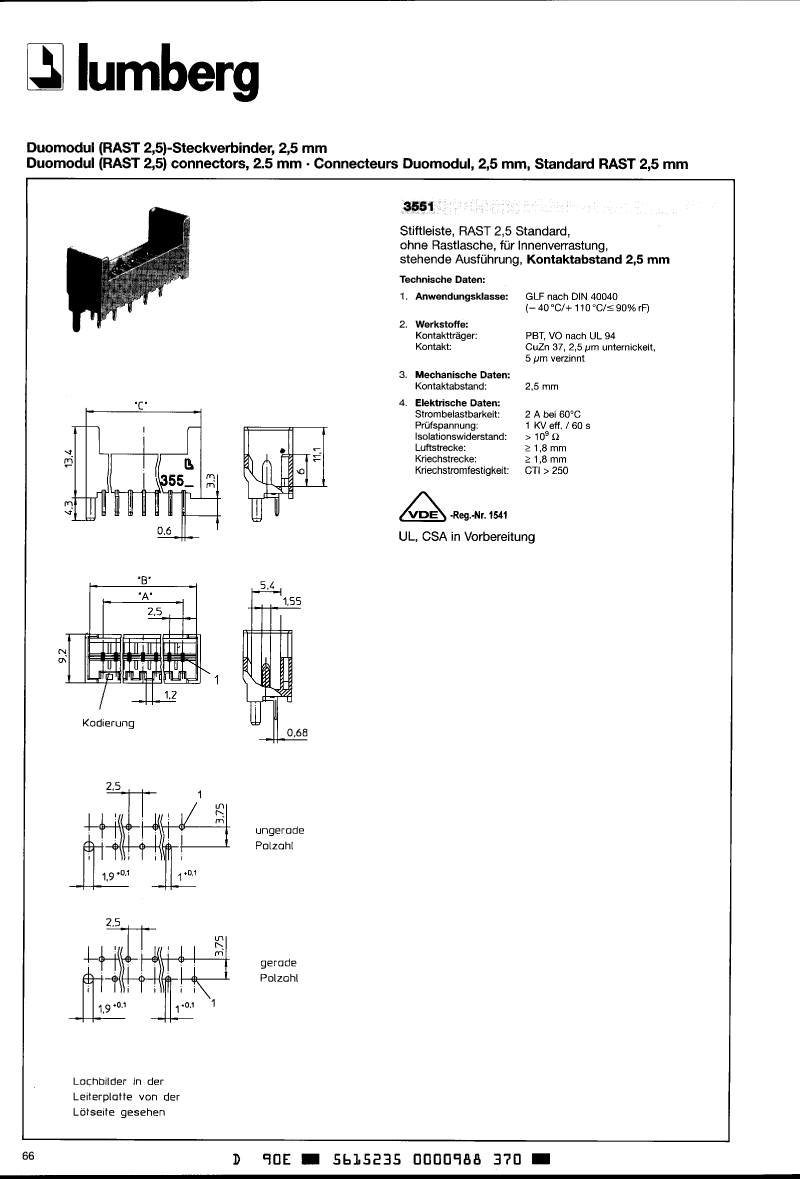

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Receptacle

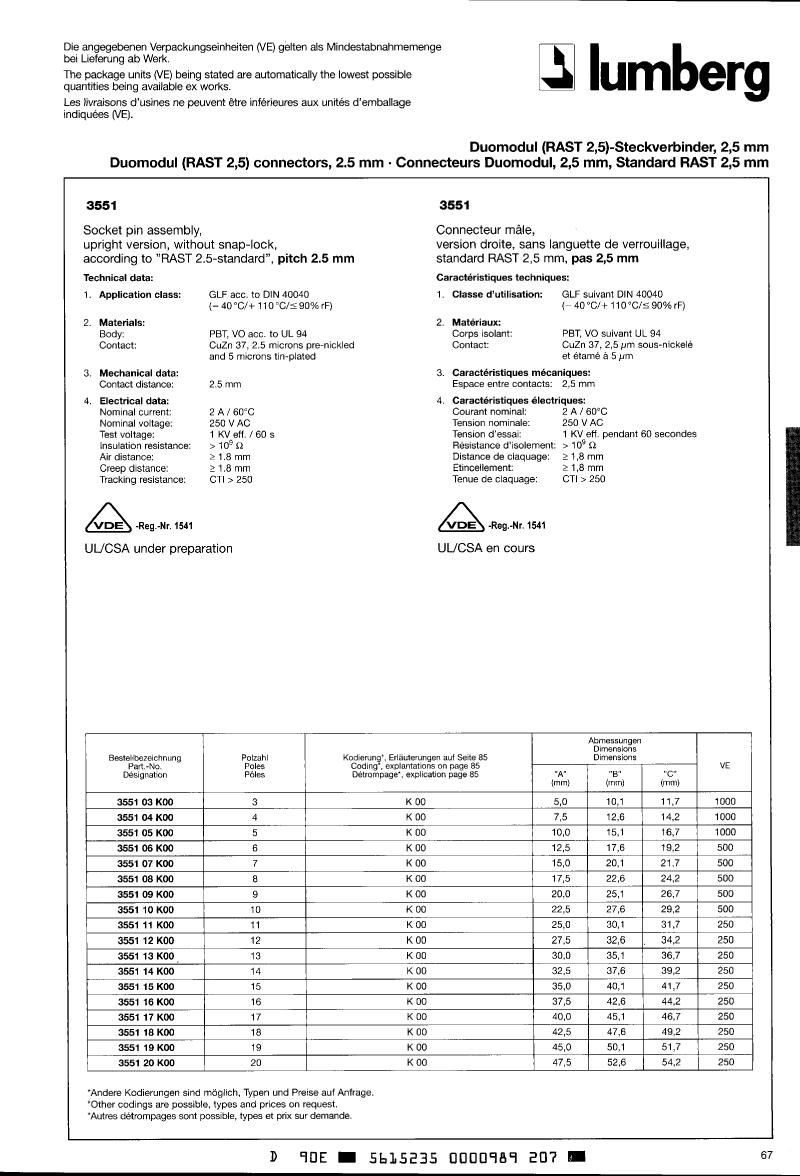

| Parameter Name | Attribute value |
| Maker | Lumberg |
| Reach Compliance Code | compliant |
| Board mount options | POLARIZATION POST |
| body width | 0.362 inch |
| subject depth | 0.528 inch |
| body length | 1.051 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN ON NI |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Insulation resistance | 1000000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 3551 |
| Plug contact pitch | 0.098 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 110 °C |
| Minimum operating temperature | -40 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 3.7592 mm |
| Plating thickness | 197u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.13 inch |
| Terminal pitch | 5.0038 mm |
| Termination type | SOLDER |
| Total number of contacts | 9 |
| Base Number Matches | 1 |
| 355109K00 | 355117K00 | 355119K00 | |
|---|---|---|---|
| Description | Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Receptacle | Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Receptacle | Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Receptacle |
| Maker | Lumberg | Lumberg | Lumberg |
| Reach Compliance Code | compliant | compliant | compliant |
| Board mount options | POLARIZATION POST | POLARIZATION POST | POLARIZATION POST |
| body width | 0.362 inch | 0.362 inch | 0.362 inch |
| subject depth | 0.528 inch | 0.528 inch | 0.528 inch |
| body length | 1.051 inch | 1.839 inch | 2.035 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN ON NI | SN ON NI | SN ON NI |
| Contact point gender | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 3551 | 3551 | 3551 |
| Plug contact pitch | 0.098 inch | 0.098 inch | 0.098 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 1 | 1 | 1 |
| Maximum operating temperature | 110 °C | 110 °C | 110 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 3.7592 mm | 3.7592 mm | 3.7592 mm |
| Plating thickness | 197u inch | 197u inch | 197u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 2 A | 2 A | 2 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.13 inch | 0.13 inch | 0.13 inch |
| Terminal pitch | 5.0038 mm | 5.0038 mm | 5.0038 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 9 | 17 | 19 |
