BYV133-35 datasheet, PDF - EEWORLD Datasheet

BYV133-35: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 35V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size284KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

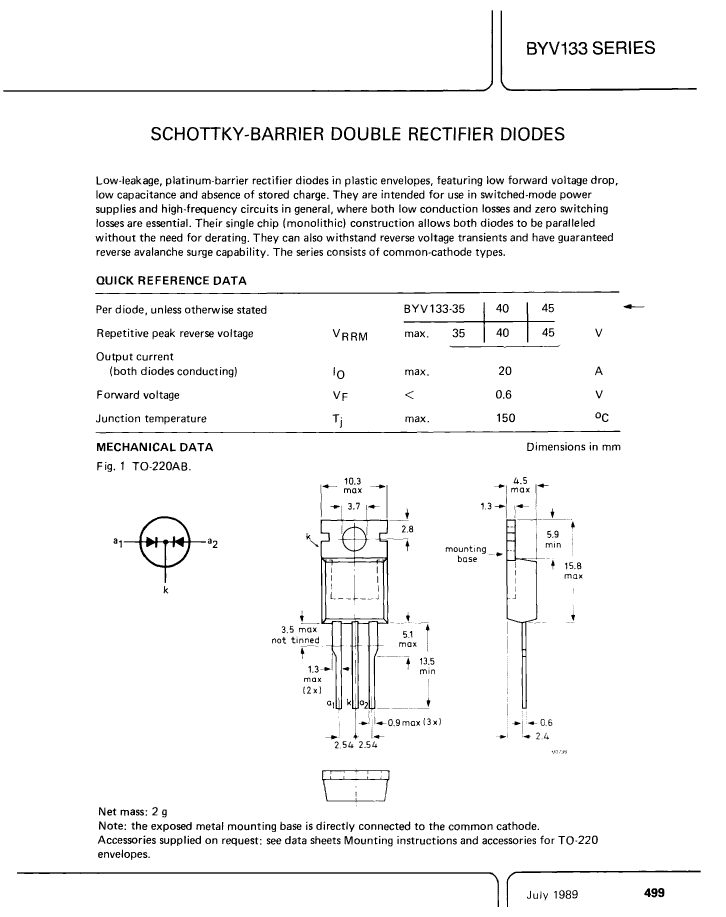

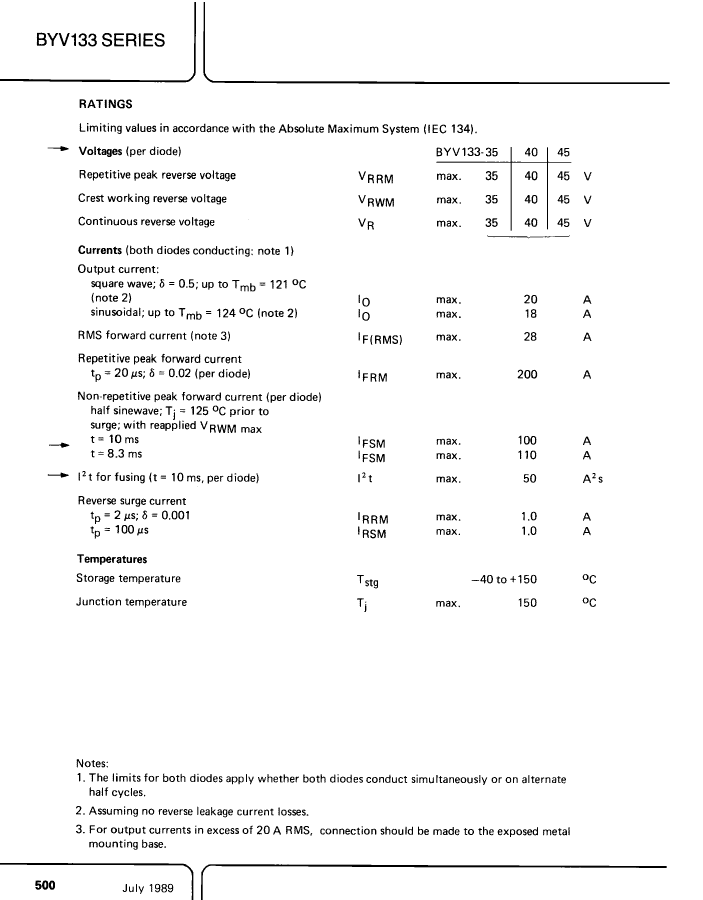

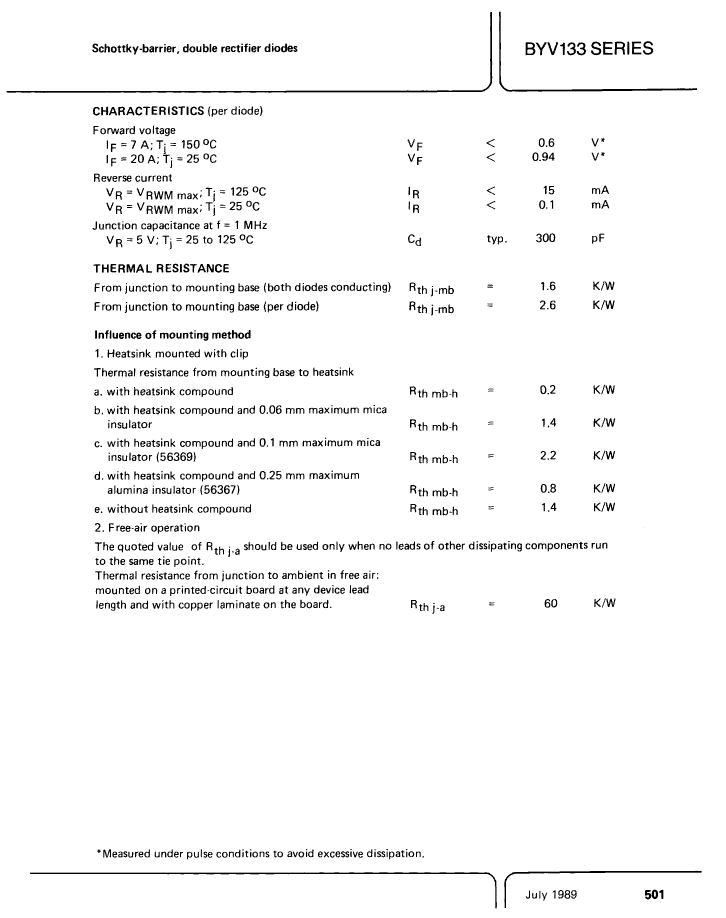

BYV133-35 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 35V V(RRM), Silicon

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.94 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	110 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	100 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

	BYV133-35	BYV133-45	BYV133-40
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 40V V(RRM), Silicon
Maker	YAGEO	YAGEO	YAGEO
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.94 V	0.94 V	0.94 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	110 A	110 A	110 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	45 V	40 V
Maximum reverse current	100 µA	100 µA	100 µA
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
