54HC4075M/B2AJC

Description
IC,LOGIC GATE,TRIPLE 3-INPUT OR,HC-CMOS,LLCC,20PIN,CERAMIC
Categorylogic    logic
File Size249KB,4 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

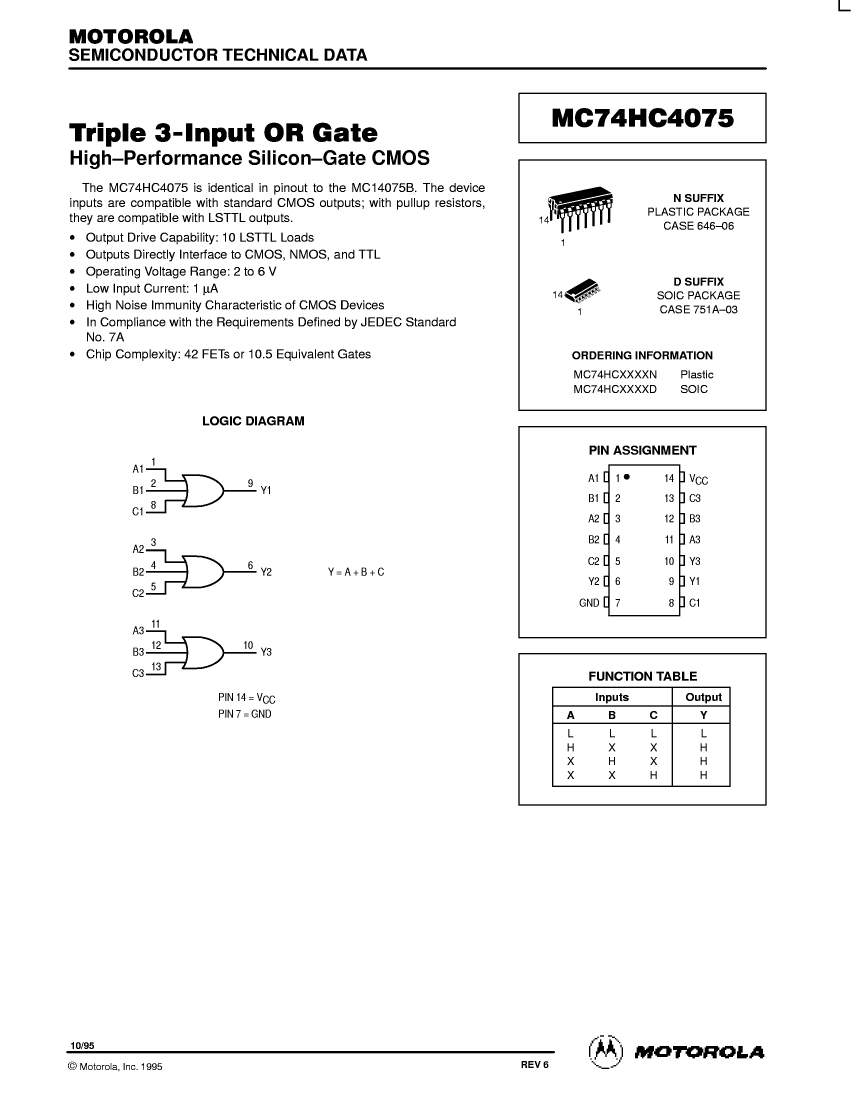

54HC4075M/B2AJC Overview

IC,LOGIC GATE,TRIPLE 3-INPUT OR,HC-CMOS,LLCC,20PIN,CERAMIC

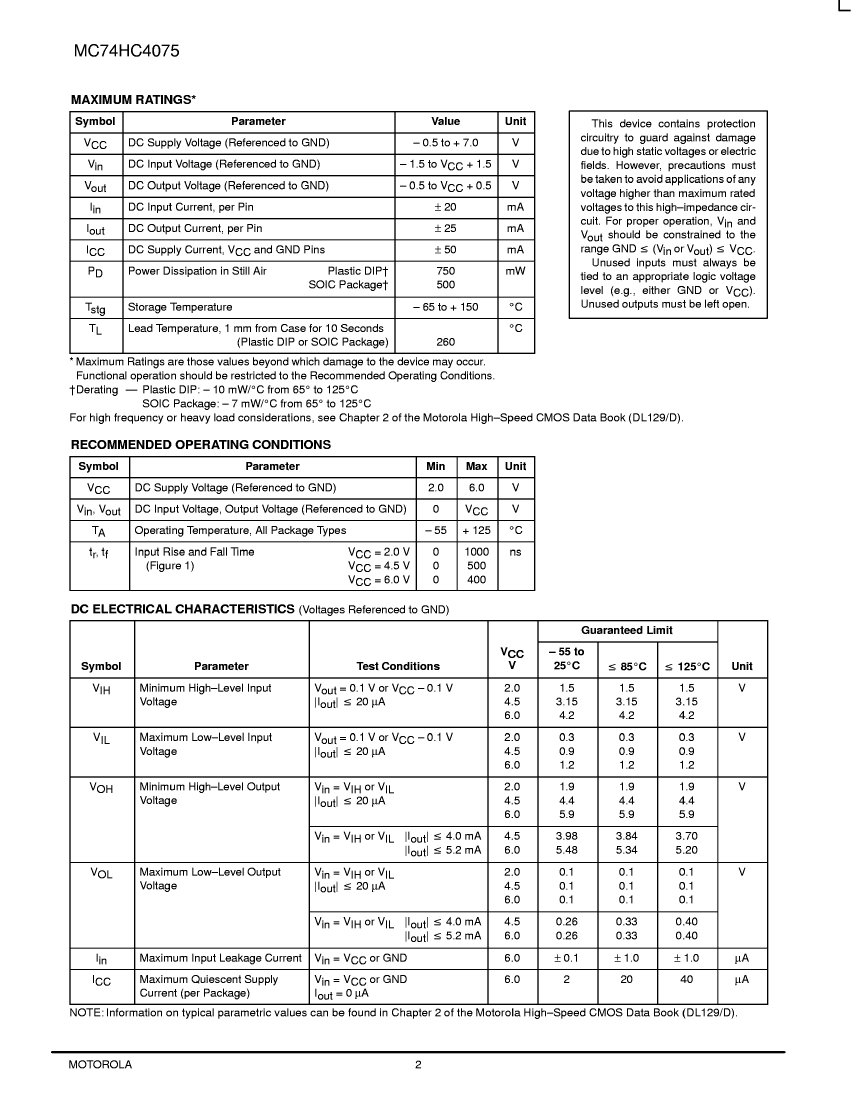

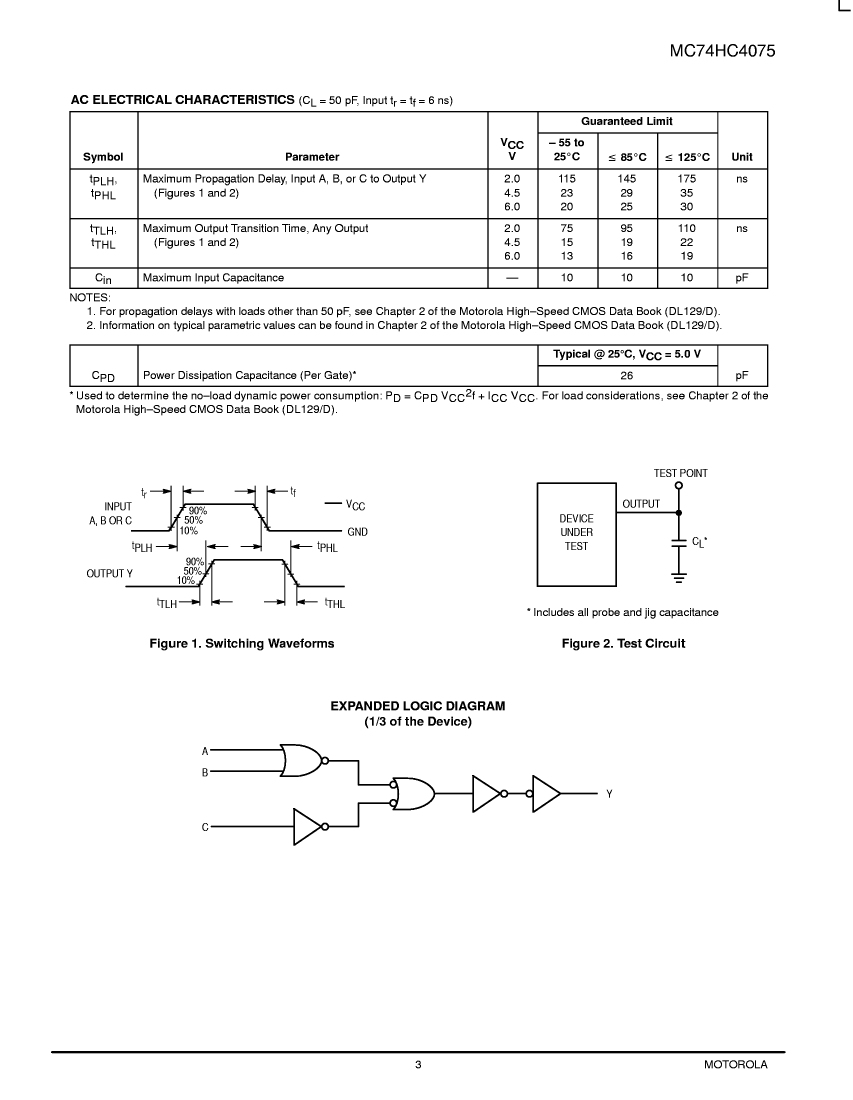

54HC4075M/B2AJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNXP

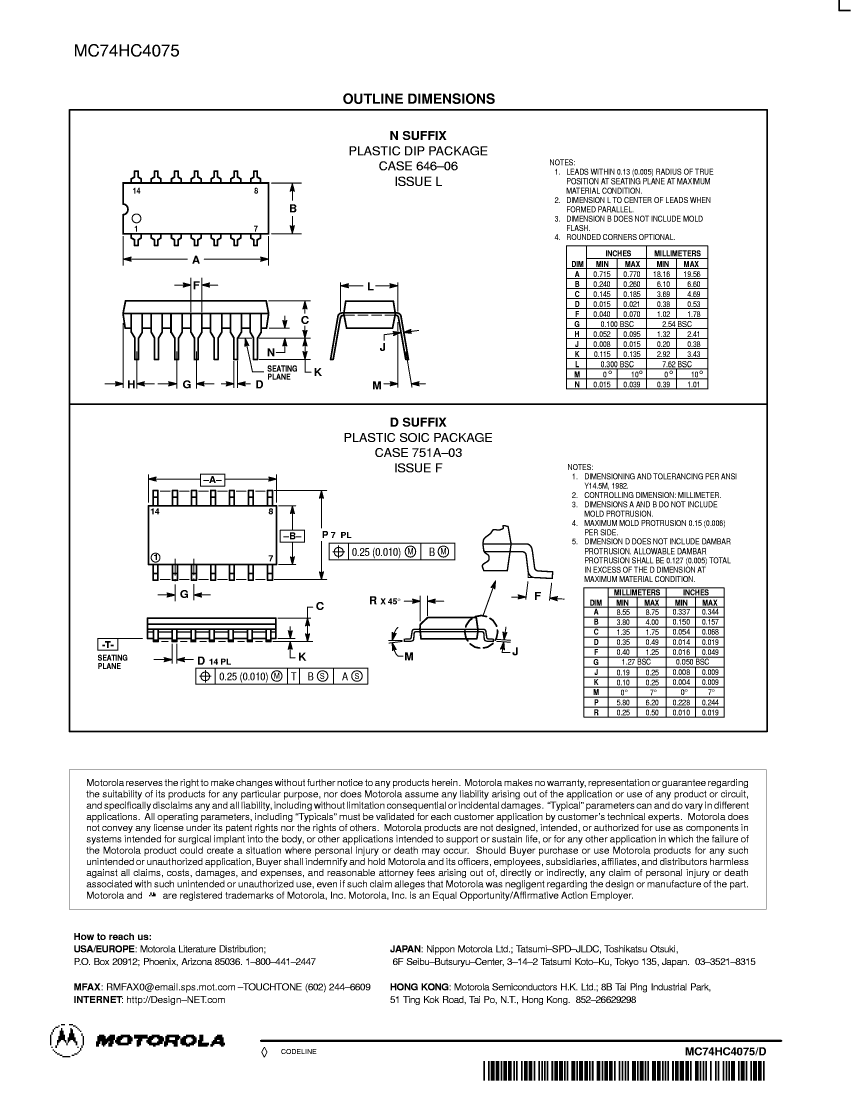

package instructionQCCN, LCC20,.35SQ
Reach Compliance Codeunknown
JESD-30 codeS-XQCC-N20
JESD-609 codee0
Logic integrated circuit typeOR GATE
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply2/6 V
Certification statusNot Qualified
Schmitt triggerNO
Filter level38535Q/M;38534H;883B
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Base Number Matches1
