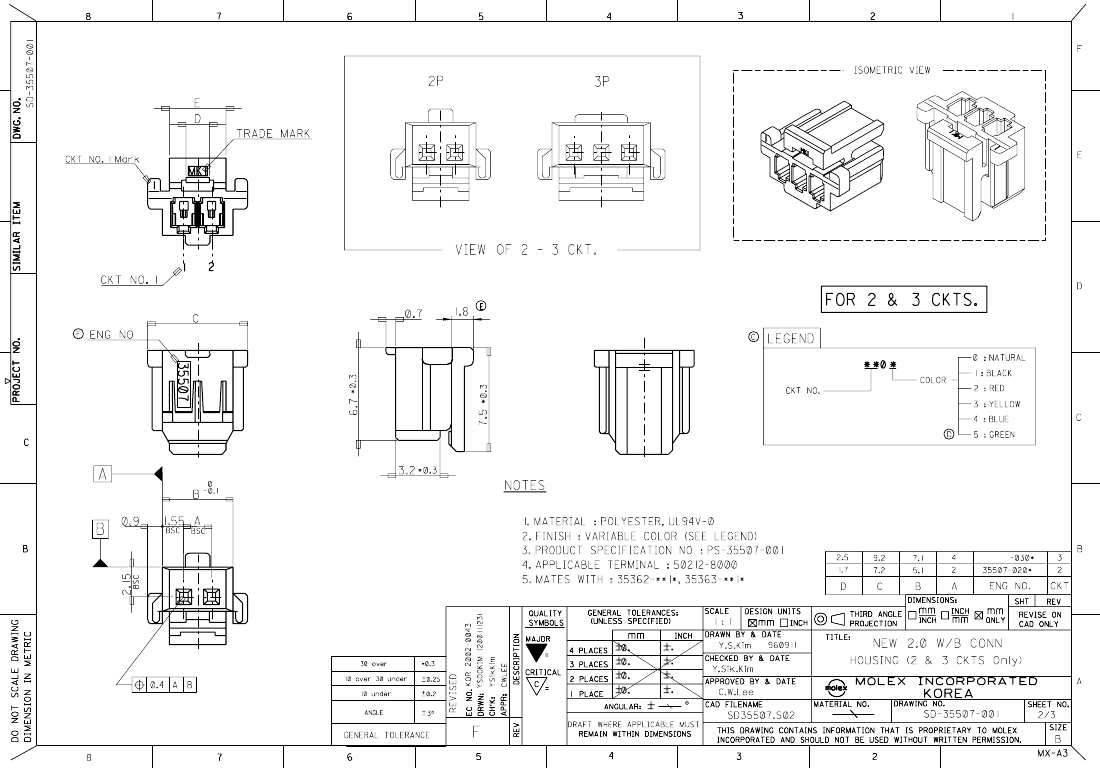

Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Crimp Terminal, Polarized Lck, Yellow Insulator, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Other features | COMPITABLE CONTACT: 50212-8000 |
| body width | 0.224 inch |
| subject depth | 0.295 inch |
| body length | 0.362 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 8.0064 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | YELLOW |
| insulator material | POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | 35507 |
| Plug contact pitch | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | POLARIZED LCK |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | |
| Terminal pitch | 2 mm |
| Termination type | CRIMP |
| Total number of contacts | 3 |
| UL Flammability Code | 94V-0 |
| Maximum wire diameter | 24 AWG |
| Minimum wire diameter | 30 AWG |
| Evacuation force-minimum value | .695 N |
| Base Number Matches | 1 |
| 35507-0303 | 35507-0301 | 35507-0305 | 35507-0205 | |
|---|---|---|---|---|
| Description | Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Crimp Terminal, Polarized Lck, Yellow Insulator, Plug | Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Crimp Terminal, Polarized Lck, Black Insulator, Plug | Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Crimp Terminal, Polarized Lck, Green Insulator, Plug | Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Crimp Terminal, Polarized Lck, Green Insulator, Plug |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | COMPITABLE CONTACT: 50212-8000 | COMPITABLE CONTACT: 50212-8000 | COMPITABLE CONTACT: 50212-8000 | COMPITABLE CONTACT: 50212-8000 |
| body width | 0.224 inch | 0.224 inch | 0.224 inch | 0.224 inch |
| subject depth | 0.295 inch | 0.295 inch | 0.295 inch | 0.295 inch |
| body length | 0.362 inch | 0.362 inch | 0.362 inch | 0.283 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | SN | SN | SN |
| Contact completed and terminated | TIN | TIN | TIN | TIN |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Durability | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| maximum insertion force | 8.0064 N | 8.0064 N | 8.0064 N | 8.0064 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | YELLOW | BLACK | GREEN | GREEN |
| insulator material | POLYESTER | POLYESTER | POLYESTER | POLYESTER |
| MIL compliance | NO | NO | NO | NO |
| Manufacturer's serial number | 35507 | 35507 | 35507 | 35507 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO |
| Installation option 1 | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 2 A | 2 A | 2 A | 2 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 3 | 3 | 3 | 2 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Maximum wire diameter | 24 AWG | 24 AWG | 24 AWG | 24 AWG |
| Minimum wire diameter | 30 AWG | 30 AWG | 30 AWG | 30 AWG |
| Evacuation force-minimum value | .695 N | .695 N | .695 N | .695 N |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Maker | - | Molex | Molex | Molex |
