HG*: Fixed receptacle, nut fixing, watertight or vacuum-tight, special potting
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
SV : Watertight / Vacuum-tested, special potting
Performance
Configuration
Insulator
Rated Current
0B.305 : 5 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
6.5 Amps
Specifications
Contact Type: Print (straight)
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
R (max): 6.1 mOhm
Vtest (contact-shell): 700 V (AC), 990 V (DC)
Vtest (contact-contact): 1000 V (AC), 1400 V (DC)
Others
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 20/80/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
R leak (He) (max): 0.0000001 mbar*l/s (if vacuum-tested)
IP Rating: 68

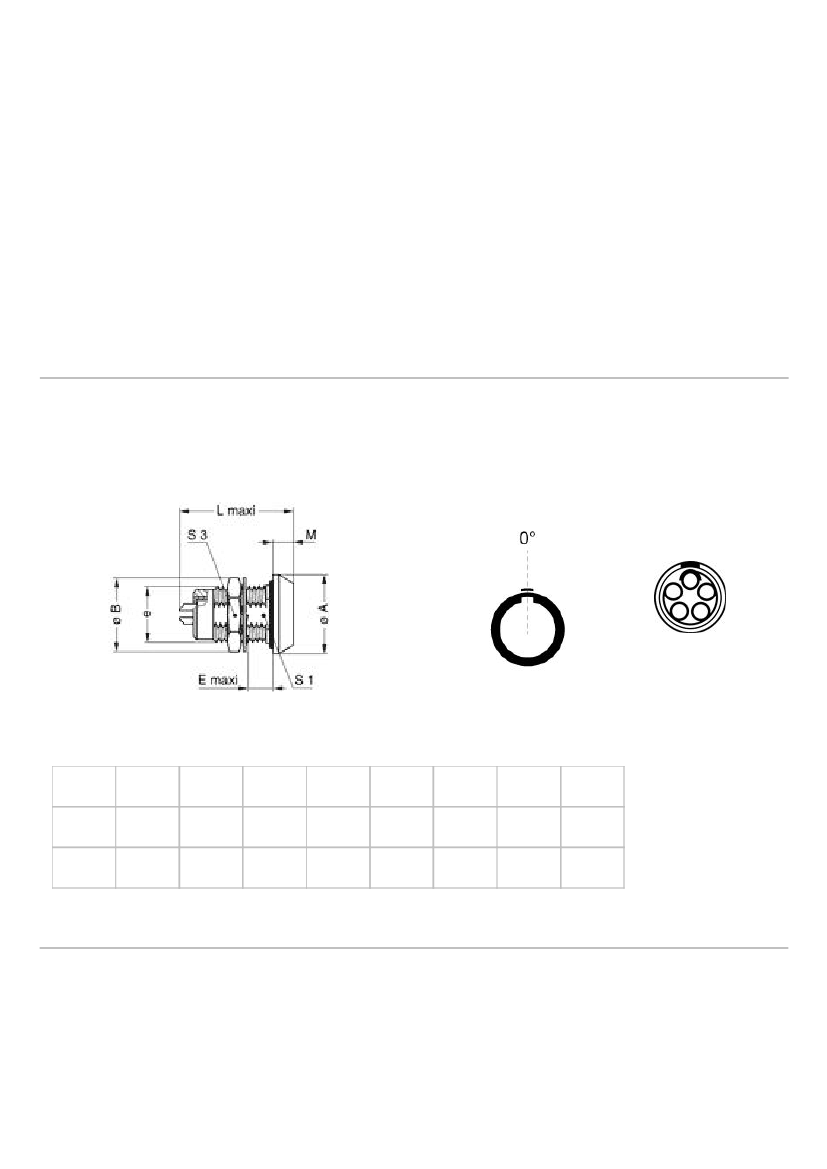

DRAWINGS
Draws
Dimensions
A
mm.
in.
13
0,51
B
12.5
0,49
E
7
0,28
L
20.7
0,81
M
3
0,12
S1
8.2
0,32
S3
11
0,43
e
M9x0.6
RECOMMENDED BY LEMO
Tools
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
None
Cables
