KPY67-AK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> KPY67-AK

KPY67-AK: DescriptionPeizoresistive Sensor, Absolute, 0Psi Min, 870.22Psi Max, 0-300mV, Round, Through Hole Mount, TO-39, 2 PIN; CategoryThe sensor Sensor/transducer; File Size55KB，4 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

KPY67-AK Overview

Peizoresistive Sensor, Absolute, 0Psi Min, 870.22Psi Max, 0-300mV, Round, Through Hole Mount, TO-39, 2 PIN

KPY67-AK Parametric

Parameter Name	Attribute value
Maker	Infineon
Reach Compliance Code	unknown
body height	2.6 mm
Body length or diameter	9.3 mm
Linearity(%)	0.3 %
Installation features	THROUGH HOLE MOUNT
Nominal offset	0MV
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output range	0-300mV
Output type	ANALOG VOLTAGE
Package Shape/Form	ROUND
Maximum pressure range	870.22 Psi
Minimum pressure range
Pressure sensing mode	ABSOLUTE
Sensitivity (mV/V)	300 mV/V
Sensor/Transducer Type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	12 V
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

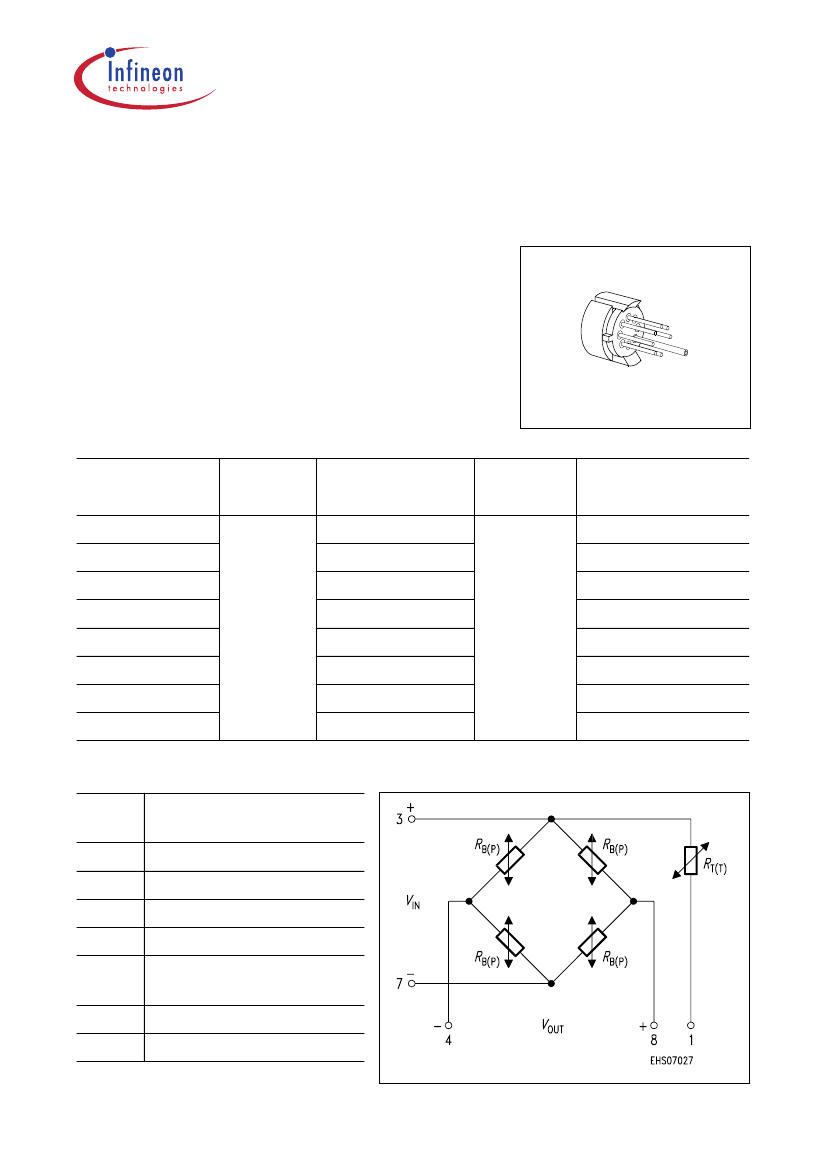

Silicon Piezoresistive

Absolute Pressure Sensor

Features

Low pressure and temperature hysteresis

Fast response

High sensitivity and linearity

Fatigue free monocrystaline silicon diaphragm

giving high load cycle stability

• High long term stability

• Built in silicon temperature sensor

• Provided for further fabrication, protection cap

Type

KPY 62-AK

KPY 63-AK

KPY 64-AK

KPY 65-AK

KPY 66-AK

KPY 67-AK

KPY 68-AK

KPY 69-AK

Pin Configuration

Temperature sensor

(typ.

= 2 kΩ)

Not to be connected

; Temperature sensor

−

OUT

Capillary tube

Shielding, to be connected

to +

−

OUT

Symbol

Pressure Range

…

0.6

…

1.6

…

160

…

400

Unit

bar

•

KPY 62-AK

KPY 69-AK

Similar to TO-39-2

Ordering Code

Q62705-K275

Q62705-K276

Q62705-K277

Q62705-K278

Q62705-K279

Q62705-K280

Q62705-K281

Q62705-K282

…

Data Sheet

1999-04-01

KPY67-AK Related Products

	KPY67-AK	KPY66-AK	KPY68-AK	KPY64-AK	KPY63-AK	KPY69-AK	KPY65-AK
Description	Peizoresistive Sensor, Absolute, 0Psi Min, 870.22Psi Max, 0-300mV, Round, Through Hole Mount, TO-39, 2 PIN	Peizoresistive Sensor, Absolute, 0Psi Min, 362.59Psi Max, 0-260mV, Round, Through Hole Mount, TO-39, 2 PIN	Peizoresistive Sensor, Absolute, 0Psi Min, 2320.6Psi Max, 0-420mV, Round, Through Hole Mount, TO-39, 2 PIN	Peizoresistive Sensor, Absolute, 0Psi Min, 58.01Psi Max, 0-220mV, Round, Through Hole Mount, TO-39, 2 PIN	Peizoresistive Sensor, Absolute, 0Psi Min, 23.2Psi Max, 0-160mV, Round, Through Hole Mount, TO-39, 2 PIN	Peizoresistive Sensor, Absolute, 0Psi Min, 5801.5Psi Max, 0-440mV, Round, Through Hole Mount, TO-39, 2 PIN	Peizoresistive Sensor, Absolute, 0Psi Min, 145.03Psi Max, 0-260mV, Round, Through Hole Mount, TO-39, 2 PIN
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body height	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm
Body length or diameter	9.3 mm	9.3 mm	9.3 mm	9.3 mm	9.3 mm	9.3 mm	9.3 mm
Linearity(%)	0.3 %	0.3 %	0.3 %	0.5 %	0.5 %	0.3 %	0.5 %
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal offset	0MV	0MV	0MV	0MV	0MV	0MV	0MV
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output range	0-300mV	0-260mV	0-420mV	0-220mV	0-160mV	0-440mV	0-260mV
Output type	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE
Package Shape/Form	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Maximum pressure range	870.22 Psi	362.59 Psi	2320.6 Psi	58.01 Psi	23.2 Psi	5801.5 Psi	145.03 Psi
Pressure sensing mode	ABSOLUTE	ABSOLUTE	ABSOLUTE	ABSOLUTE	ABSOLUTE	ABSOLUTE	ABSOLUTE
Sensitivity (mV/V)	300 mV/V	260 mV/V	420 mV/V	220 mV/V	160 mV/V	440 mV/V	260 mV/V
Maximum supply voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Sensor/Transducer Type	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PEIZORESISTIVE	PRESSURE SENSOR,PEIZORESISTIVE	-	-
Base Number Matches	1	1	1	1	1	-	-

Recommended Resources

Phase sensitive rectifier circuit

One of the automatic water supply control circuits for simultaneous monitoring of water towers and reservoirs b

Boost circuit with low battery voltage detection

Positive and negative 20V-5A precision CNC DC regulated power supply

Single capacitor pulse width modulation circuit

photosensitive oscillator circuit

The rapid entry of UWB centimeter-level positioning solutions has brought strong momentum to indoor positioning: With the combination of location-based services and mobile Internet, the emerging indoor positioning solutions have become ubiquitous. However, from the perspective of application requirements, only h...; fish001 RF/Wirelessly

Question about createfile: I want to use the AP to issue the hci command to the bluetooth chip, but I can't get the com port handle (COM2) that has been opened. Is there any way? I tried using virtual com to map bluetooth. Mayb...; DHCJOHN Embedded System

[Sharing experience] STM32F03--NVIC_Init() function question: In the "stm32f0xx_misc.h" file, should the void NVIC_Init(NVIC_InitTypeDef* NVIC_InitStruct) function be changed to "IP" like I did?...; qinkaiabc stm32/stm8

Is there anyone who develops nucleus network card drivers?: I am developing a network card driver recently. The chip is RTL8019. I feel that it is a bit difficult to read the demo program. Does anyone have experience in this area? Please give me some advice! T...; afan_2007 Embedded System

Meaning of TCO in D flip-flop: Could you please tell me what TCO means in D flip-flop? Any advice is welcome!...; eeleader FPGA/CPLD

TMS320F28335 Study Notes - Startup Process: 1. What is the starting address of the DSP after reset? 0x3FFFC0 2. What are the steps for burning the program in the emulator? Burn the program to the specified location according to the cmd file, an...; Jacktang Microcontroller MCU
