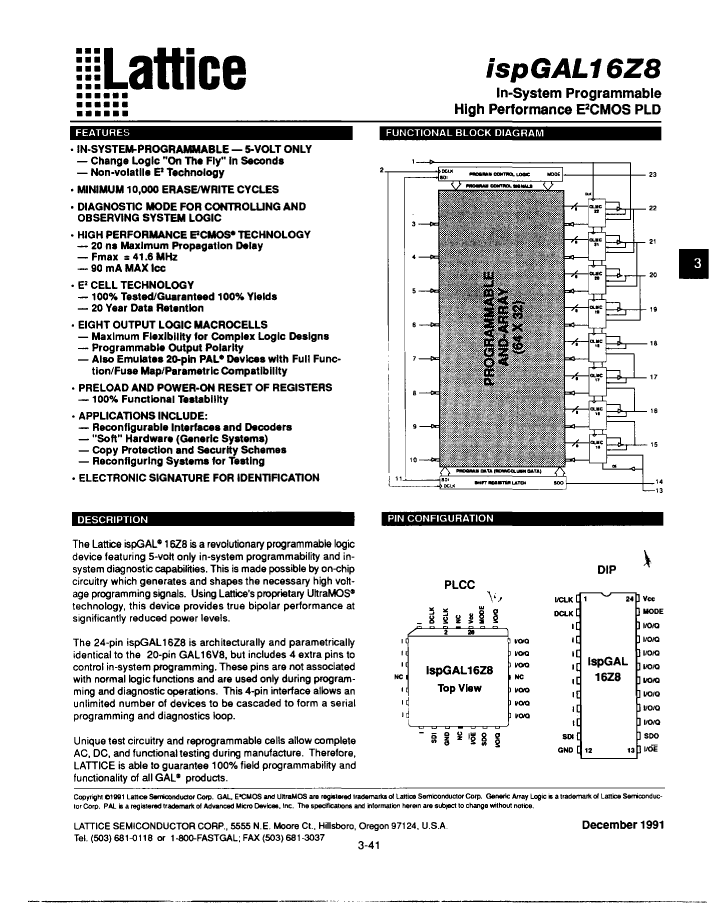

EE PLD, 25ns, PAL-Type, CMOS, PDIP24, PLASTIC, DIP-24

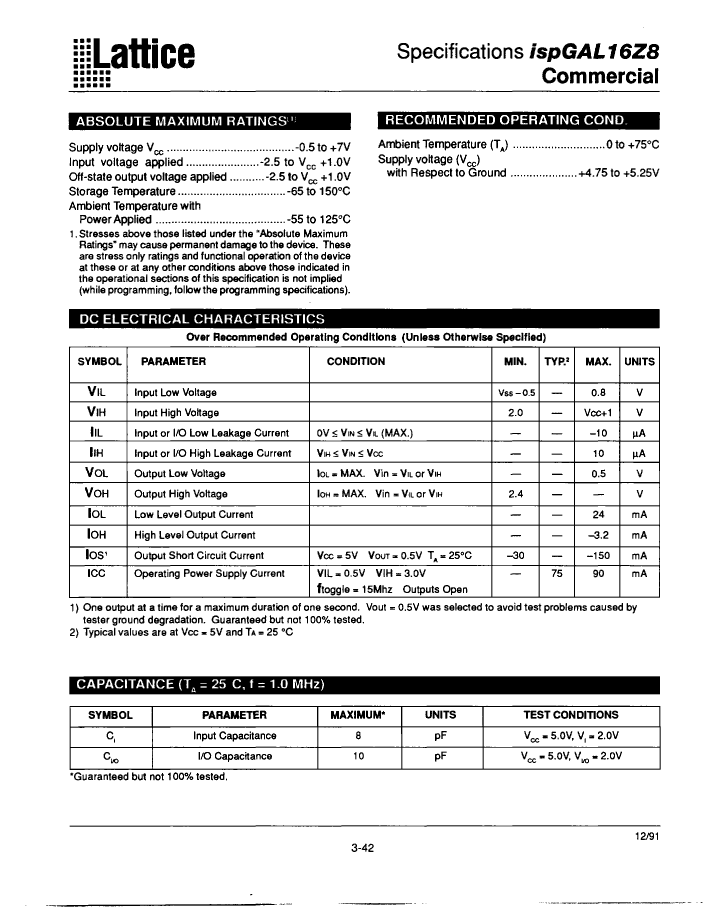

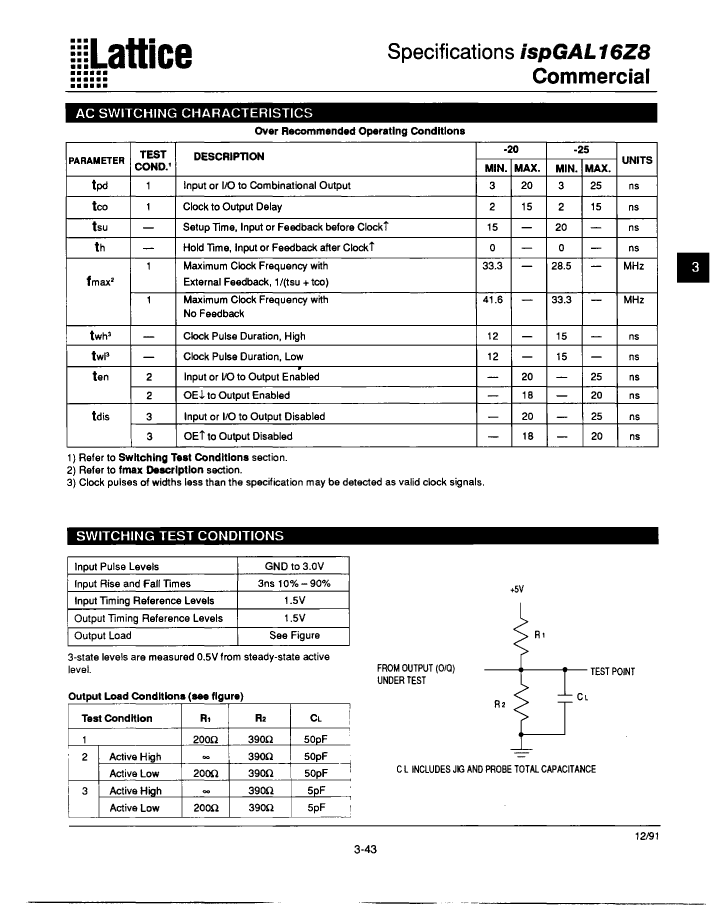

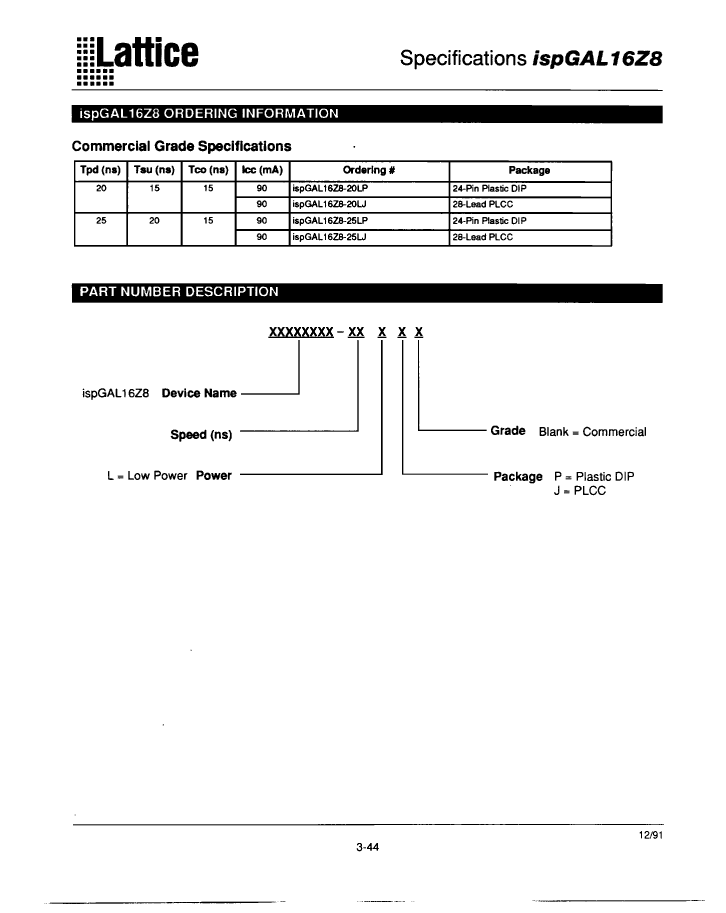

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Lattice |
| Parts packaging code | DIP |
| package instruction | PLASTIC, DIP-24 |
| Contacts | 24 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Other features | 8 MACROCELLS; 1 EXTERNAL CLOCK; REGISTER PRELOAD; SHARED INPUT/CLOCK |
| Architecture | PAL-TYPE |
| maximum clock frequency | 28.5 MHz |
| JESD-30 code | R-PDIP-T24 |
| JESD-609 code | e0 |
| length | 31.855 mm |
| Dedicated input times | 8 |
| Number of I/O lines | 8 |
| Number of entries | 16 |
| Output times | 8 |
| Number of product terms | 64 |
| Number of terminals | 24 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| organize | 8 DEDICATED INPUTS, 8 I/O |
| Output function | MACROCELL |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Programmable logic type | EE PLD |
| propagation delay | 25 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.57 mm |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn85Pb15) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| ISPGAL16Z8-25LP | ISPGAL16Z8-25LJ | ISPGAL16Z8-20LJ | ISPGAL16Z8-20LP | |
|---|---|---|---|---|
| Description | EE PLD, 25ns, PAL-Type, CMOS, PDIP24, PLASTIC, DIP-24 | EE PLD, 25ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28 | EE PLD, 20ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28 | EE PLD, 20ns, PAL-Type, CMOS, PDIP24, PLASTIC, DIP-24 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Lattice | Lattice | Lattice | Lattice |
| Parts packaging code | DIP | QLCC | QLCC | DIP |
| package instruction | PLASTIC, DIP-24 | PLASTIC, LCC-28 | PLASTIC, LCC-28 | PLASTIC, DIP-24 |
| Contacts | 24 | 28 | 28 | 24 |
| Reach Compliance Code | not_compliant | compliant | compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | 8 MACROCELLS; 1 EXTERNAL CLOCK; REGISTER PRELOAD; SHARED INPUT/CLOCK | 8 MACROCELLS; 1 EXTERNAL CLOCK; REGISTER PRELOAD; SHARED INPUT/CLOCK | 8 MACROCELLS; 1 EXTERNAL CLOCK; REGISTER PRELOAD; SHARED INPUT/CLOCK | 8 MACROCELLS; 1 EXTERNAL CLOCK; REGISTER PRELOAD; SHARED INPUT/CLOCK |
| Architecture | PAL-TYPE | PAL-TYPE | PAL-TYPE | PAL-TYPE |
| maximum clock frequency | 28.5 MHz | 28.5 MHz | 33.3 MHz | 33.3 MHz |
| JESD-30 code | R-PDIP-T24 | S-PQCC-J28 | S-PQCC-J28 | R-PDIP-T24 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| length | 31.855 mm | 11.5062 mm | 11.5062 mm | 31.855 mm |
| Dedicated input times | 8 | 8 | 8 | 8 |
| Number of I/O lines | 8 | 8 | 8 | 8 |
| Number of entries | 16 | 16 | 16 | 16 |
| Output times | 8 | 8 | 8 | 8 |
| Number of product terms | 64 | 64 | 64 | 64 |
| Number of terminals | 24 | 28 | 28 | 24 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C | 75 °C |
| organize | 8 DEDICATED INPUTS, 8 I/O | 8 DEDICATED INPUTS, 8 I/O | 8 DEDICATED INPUTS, 8 I/O | 8 DEDICATED INPUTS, 8 I/O |
| Output function | MACROCELL | MACROCELL | MACROCELL | MACROCELL |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | QCCJ | QCCJ | DIP |
| Encapsulate equivalent code | DIP24,.3 | LDCC28,.5SQ | LDCC28,.5SQ | DIP24,.3 |
| Package shape | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | CHIP CARRIER | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Programmable logic type | EE PLD | EE PLD | EE PLD | EE PLD |
| propagation delay | 25 ns | 25 ns | 20 ns | 20 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.57 mm | 4.57 mm | 4.57 mm | 4.57 mm |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) |
| Terminal form | THROUGH-HOLE | J BEND | J BEND | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | QUAD | DUAL |
| width | 7.62 mm | 11.5062 mm | 11.5062 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
