Part Number

Search

36563-0003

Description
Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.084 inch Pitch, Solder Terminal, Locking, White Insulator
CategoryThe connector    The connector
File Size149KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

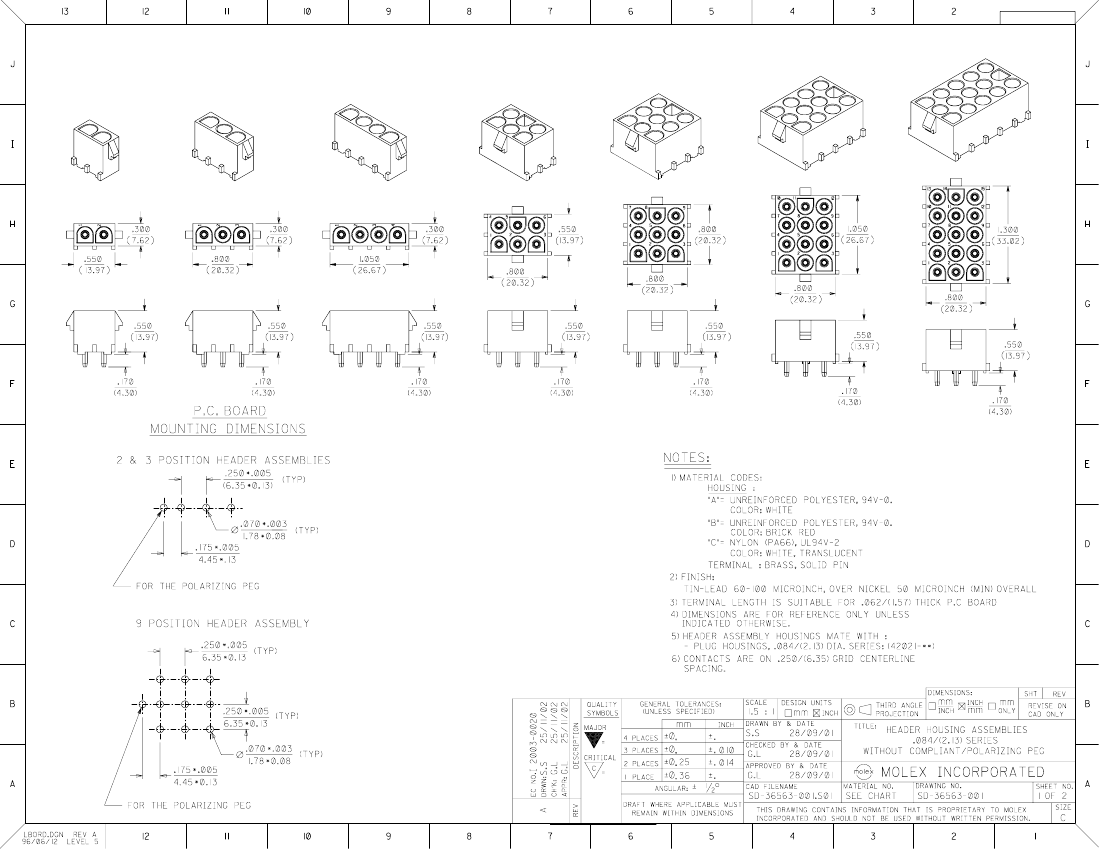

36563-0003 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.084 inch Pitch, Solder Terminal, Locking, White Insulator

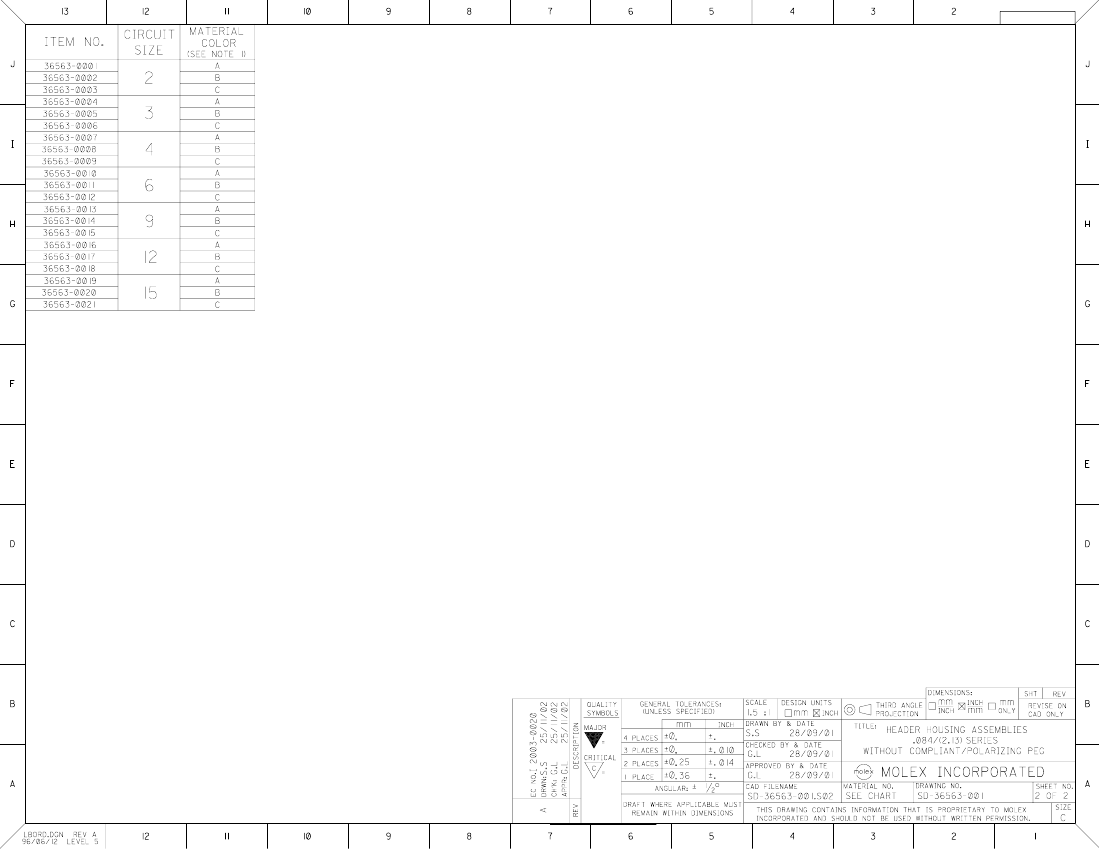

36563-0003 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresPOLARIZED
body width0.3 inch
subject depth0.55 inch
body length0.55 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD (100) OVER NICKEL (50)
Contact completed and terminatedTIN LEAD (100) OVER NICKEL (50)
Contact point genderMALE
contact modeRECTANGULAR
Contact styleRND PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorWHITE
insulator materialNYLON
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number36563
Plug contact pitch0.084 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
reliabilityCOMMERCIAL
Terminal length0.17 inch
Terminal pitch6.35 mm
Termination typeSOLDER
Total number of contacts2
UL Flammability Code94V-0
Base Number Matches1
