54F04DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F04DMQB

54F04DMQB: DescriptionInverter, F/FAST Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size107KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

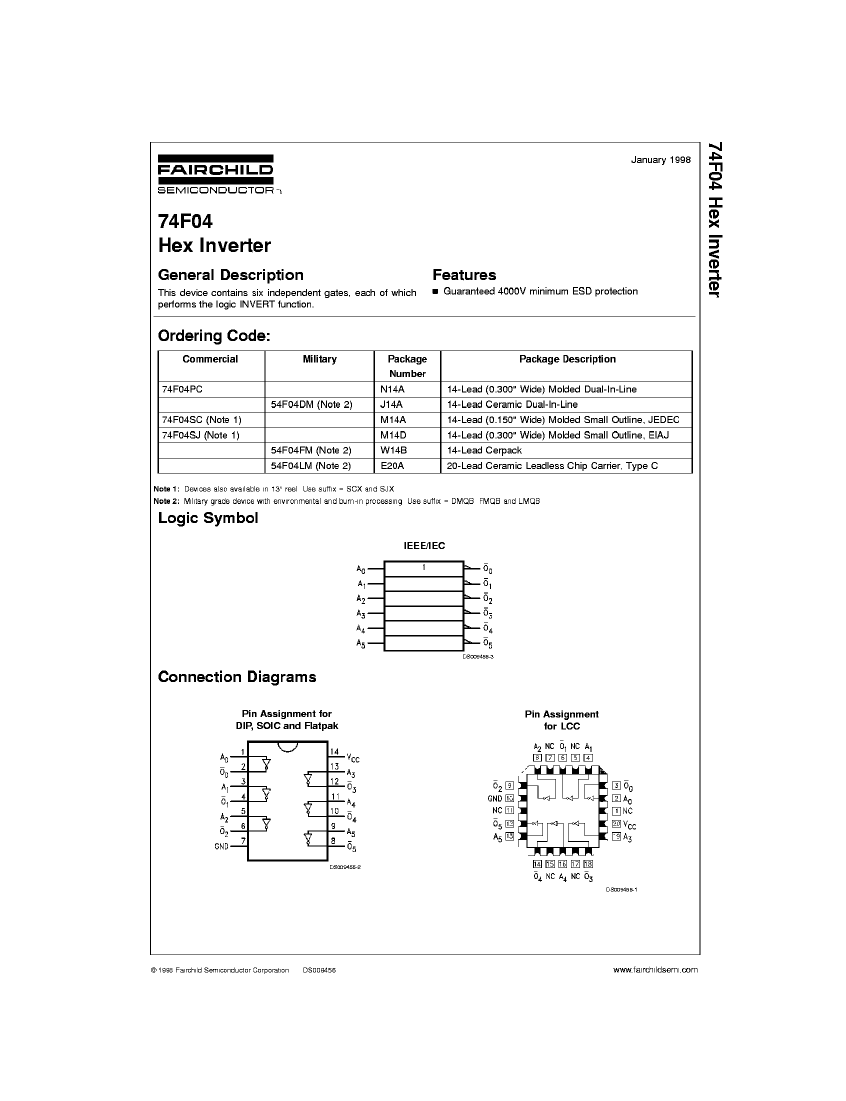

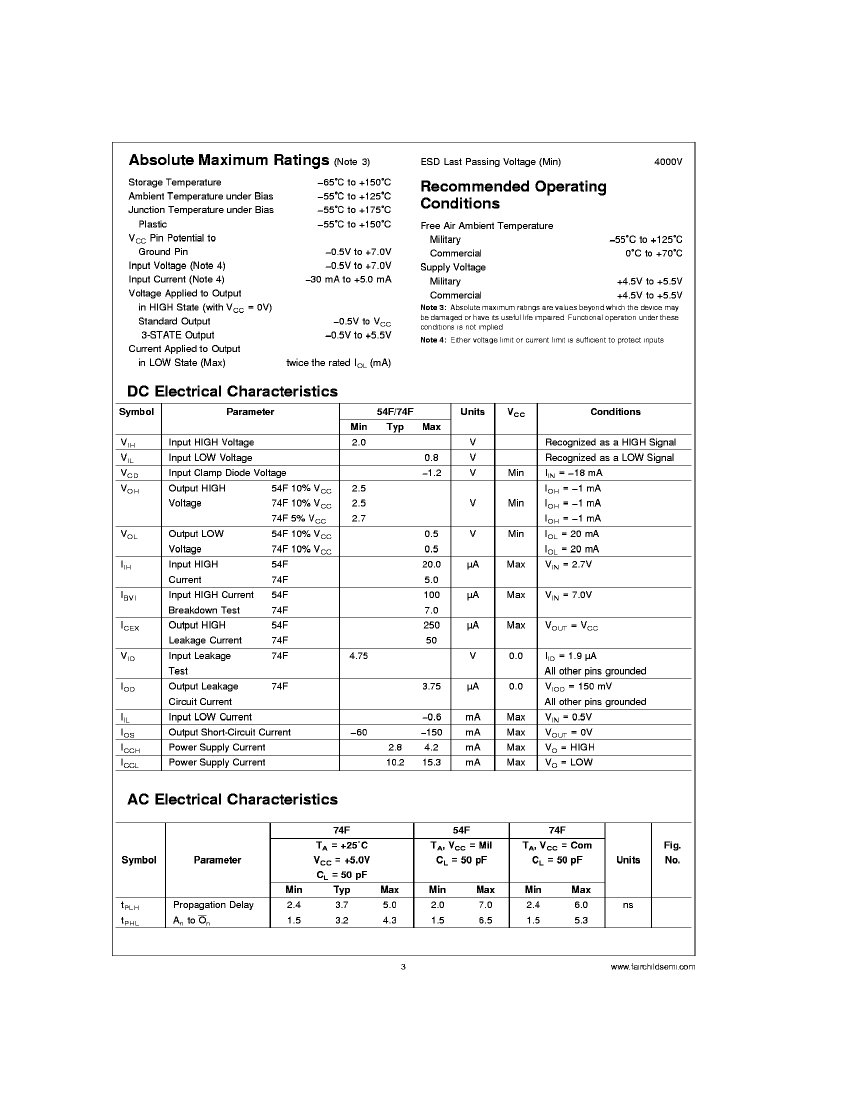

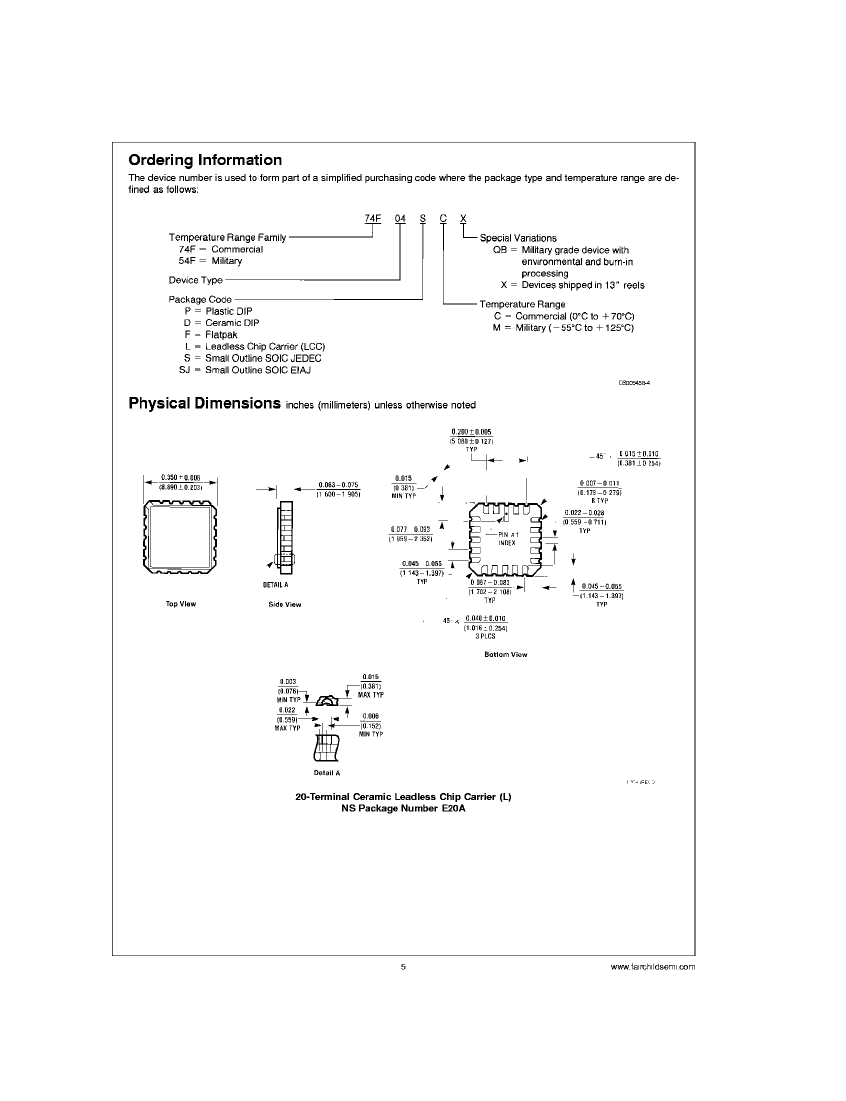

54F04DMQB Overview

Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14

54F04DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.43 mm
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.02 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	15.3 mA
Prop。Delay @ Nom-Sup	7 ns
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54F04DMQB Related Products

	54F04DMQB	54F04FM	54F04DM	74F04SJCX	74F04SJC	54F04LMQB	54F04LM	54F04FMQB
Description	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CDFP14, CERPACK-14	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDSO14, 0.300 INCH, EIAJ, PLASTIC, SOP-14	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDSO14, 0.300 INCH, EIAJ, PLASTIC, SOP-14	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CQCC20, CERAMIC, LCC-20	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CQCC20, CERAMIC, LCC-20	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CDFP14, CERPACK-14
Parts packaging code	DIP	DFP	DIP	SOIC	SOIC	QLCC	QLCC	DFP
package instruction	DIP, DIP14,.3	DFP, FL14,.3	CERAMIC, DIP-14	0.300 INCH, EIAJ, PLASTIC, SOP-14	0.300 INCH, EIAJ, PLASTIC, SOP-14	QCCN, LCC20,.35SQ	CERAMIC, LCC-20	DFP, FL14,.3
Contacts	14	14	14	14	14	20	20	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T14	R-GDFP-F14	R-GDIP-T14	R-PDSO-G14	R-PDSO-G14	S-CQCC-N20	S-CQCC-N20	R-GDFP-F14
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	20	20	14
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DFP	DIP	SOP	SOP	QCCN	QCCN	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER	CHIP CARRIER	FLATPACK
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns	5.3 ns	5.3 ns	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.032 mm	5.08 mm	2.1 mm	2.1 mm	1.905 mm	1.905 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	GULL WING	GULL WING	NO LEAD	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	DUAL
width	7.62 mm	6.2865 mm	7.62 mm	5.3 mm	5.3 mm	8.89 mm	8.89 mm	6.2865 mm
Base Number Matches	1	1	1	1	1	1	1	1
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-	incompatible	-	incompatible
JESD-609 code	e0	e0	e0	-	-	e0	-	e0
length	19.43 mm	-	19.43 mm	10.1 mm	10.1 mm	8.89 mm	8.89 mm	-
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	-	-	LCC20,.35SQ	-	FL14,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	5 V	5 V	-	-	5 V	-	5 V
Schmitt trigger	NO	NO	NO	-	-	NO	-	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	-	NOT SPECIFIED
