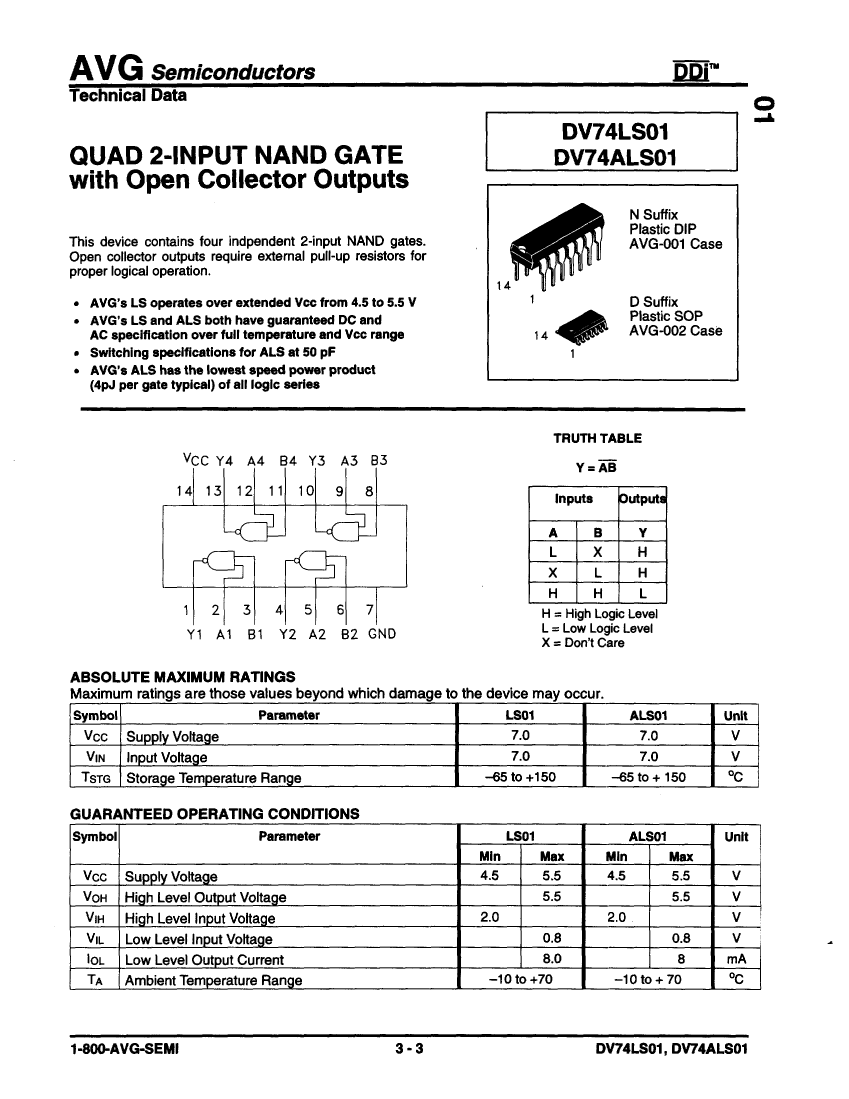

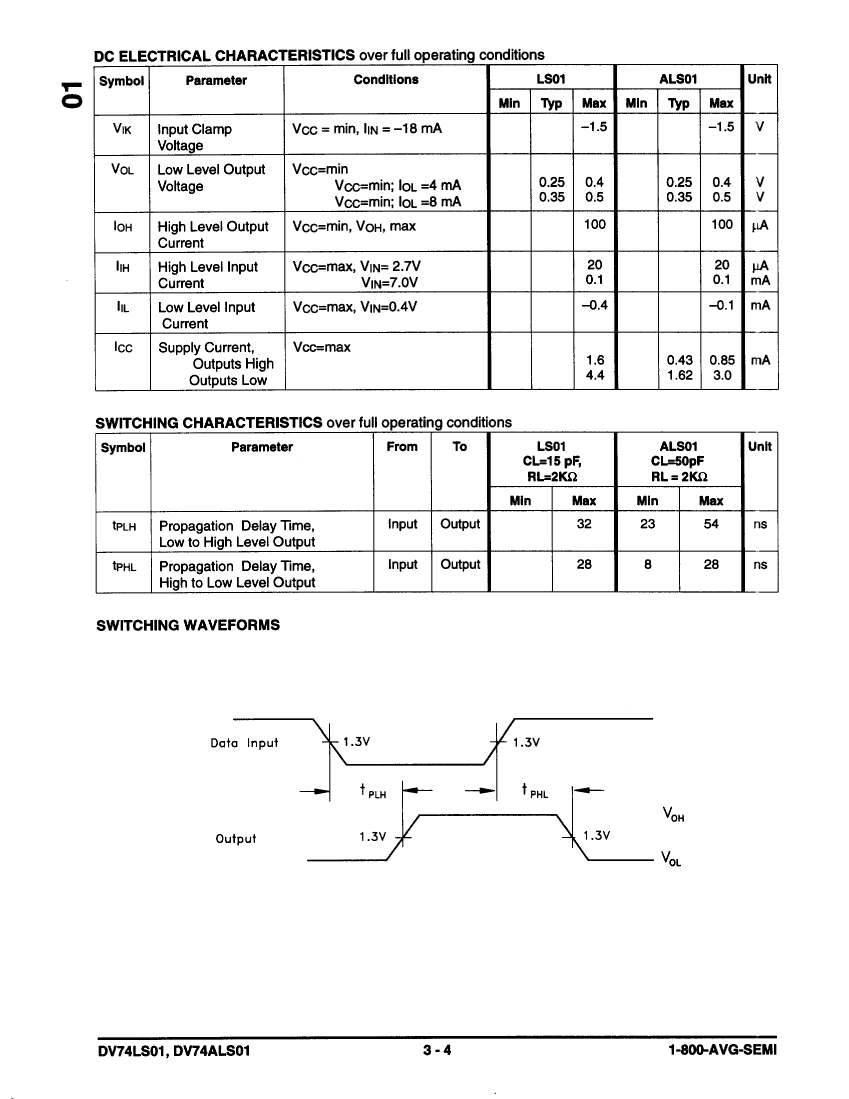

NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14
| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| Base Number Matches | 1 |
| DV74LS01N | DV74LS01D | DV74ALS01D | DV74ALS01N | |
|---|---|---|---|---|
| Description | NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14 | NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14 | NAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14 | NAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP | SOIC | SOIC | DIP |
| package instruction | DIP, | SOP, | SOP, | DIP, |
| Contacts | 14 | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Base Number Matches | 1 | 1 | 1 | 1 |
| series | - | LS | ALS | ALS |
| JESD-30 code | - | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 |
| length | - | 8.65 mm | 8.65 mm | 18.86 mm |
| Load capacitance (CL) | - | 15 pF | 50 pF | 50 pF |
| Logic integrated circuit type | - | NAND GATE | NAND GATE | NAND GATE |
| Number of functions | - | 4 | 4 | 4 |
| Number of entries | - | 2 | 2 | 2 |
| Number of terminals | - | 14 | 14 | 14 |
| Maximum operating temperature | - | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | - | -10 °C | -10 °C | -10 °C |
| Output characteristics | - | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | SOP | SOP | DIP |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Maximum supply current (ICC) | - | 4.4 mA | 3 mA | 3 mA |
| propagation delay (tpd) | - | 32 ns | 54 ns | 54 ns |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | - | 1.75 mm | 1.75 mm | 4.69 mm |
| Maximum supply voltage (Vsup) | - | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | - | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | - | 5 V | 5 V | 5 V |
| surface mount | - | YES | YES | NO |
| technology | - | TTL | TTL | TTL |
| Temperature level | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | - | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | - | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | - | DUAL | DUAL | DUAL |
| width | - | 3.9 mm | 3.9 mm | 7.62 mm |
