54ACTQ273DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54ACTQ273DMQB

54ACTQ273DMQB: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,; Categorylogic logic; File Size542KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54ACTQ273DMQB Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,

54ACTQ273DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	85000000 Hz
MaximumI(ol)	0.024 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
method of packing	TUBE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

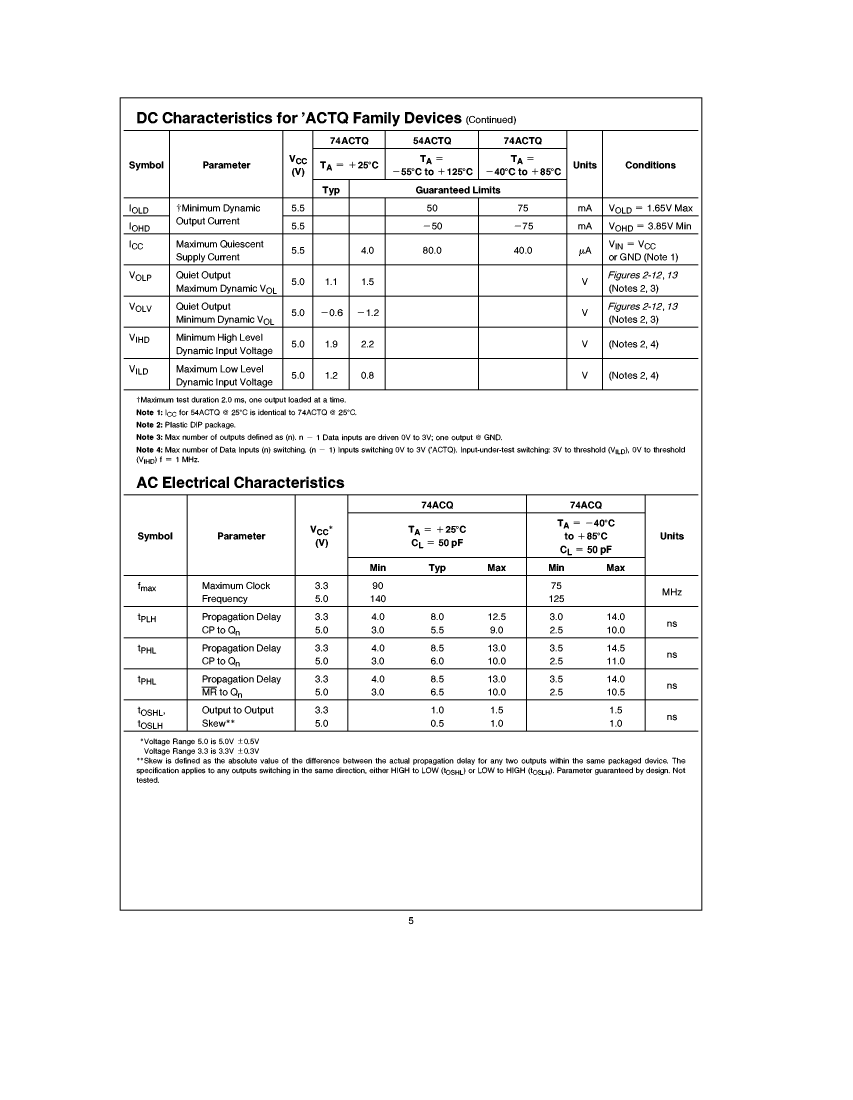

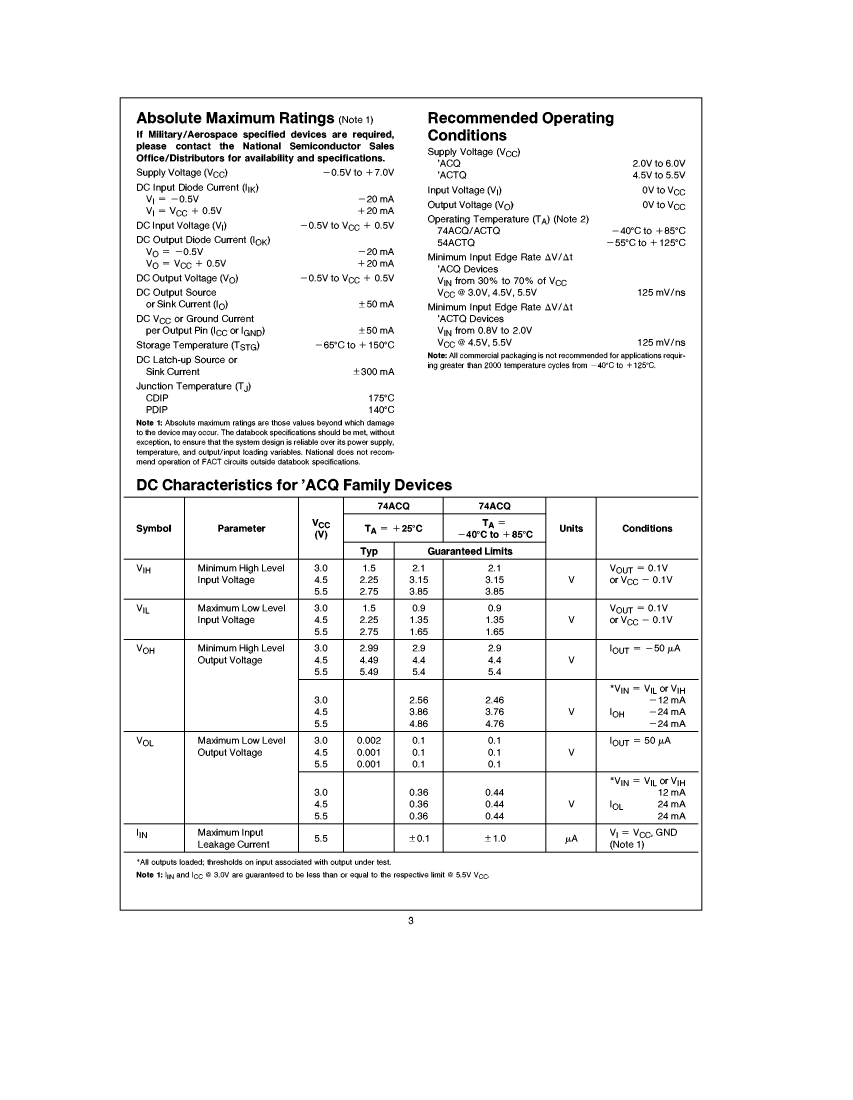

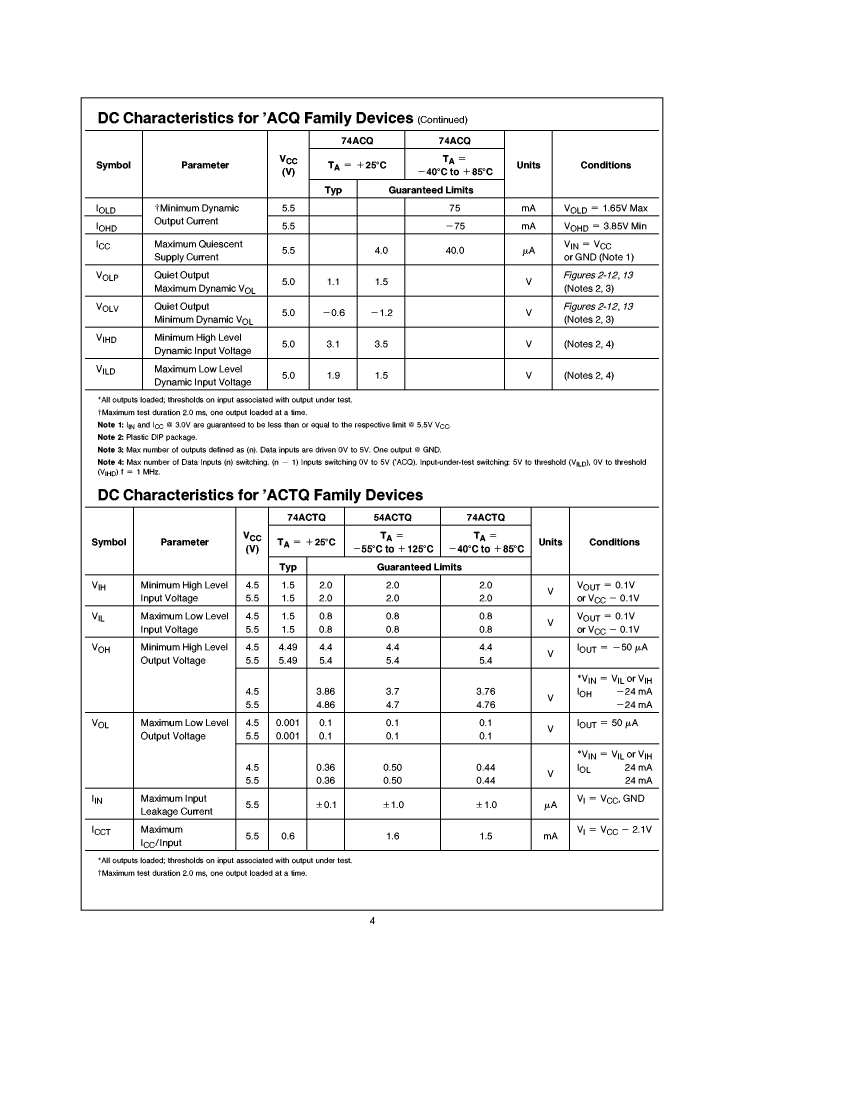

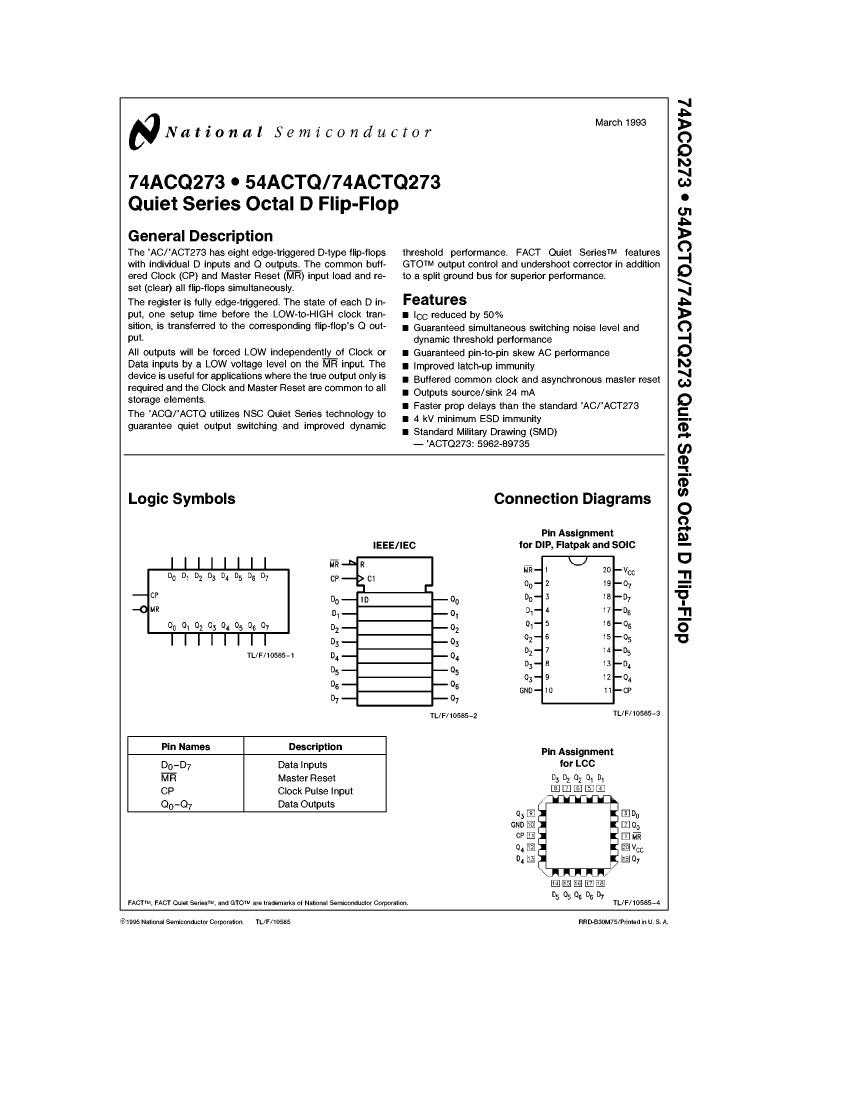

Preview

Download Datasheet

View All

54ACTQ273DMQB Related Products

	54ACTQ273DMQB	54ACTQ273FMQB	54ACTQ273LMQB	74ACQ273SCQR	74ACQ273PCQR	74ACQ273PC
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDFP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	DFP, FL20,.3	QCCN, LCC20,.35SQ	SOP, SOP20,.4	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T20	R-XDFP-F20	S-XQCC-N20	R-PDSO-G20	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.012 A	0.012 A	0.012 A
Number of functions	8	8	8	8	8	8
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DFP	QCCN	SOP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	FL20,.3	LCC20,.35SQ	SOP20,.4	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	CHIP CARRIER	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	3.3/5 V	3.3/5 V	3.3/5 V
surface mount	NO	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	NO LEAD	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1	1	1	1
Maximum Frequency@Nom-Sup	85000000 Hz	-	85000000 Hz	75000000 Hz	75000000 Hz	75000000 Hz
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
