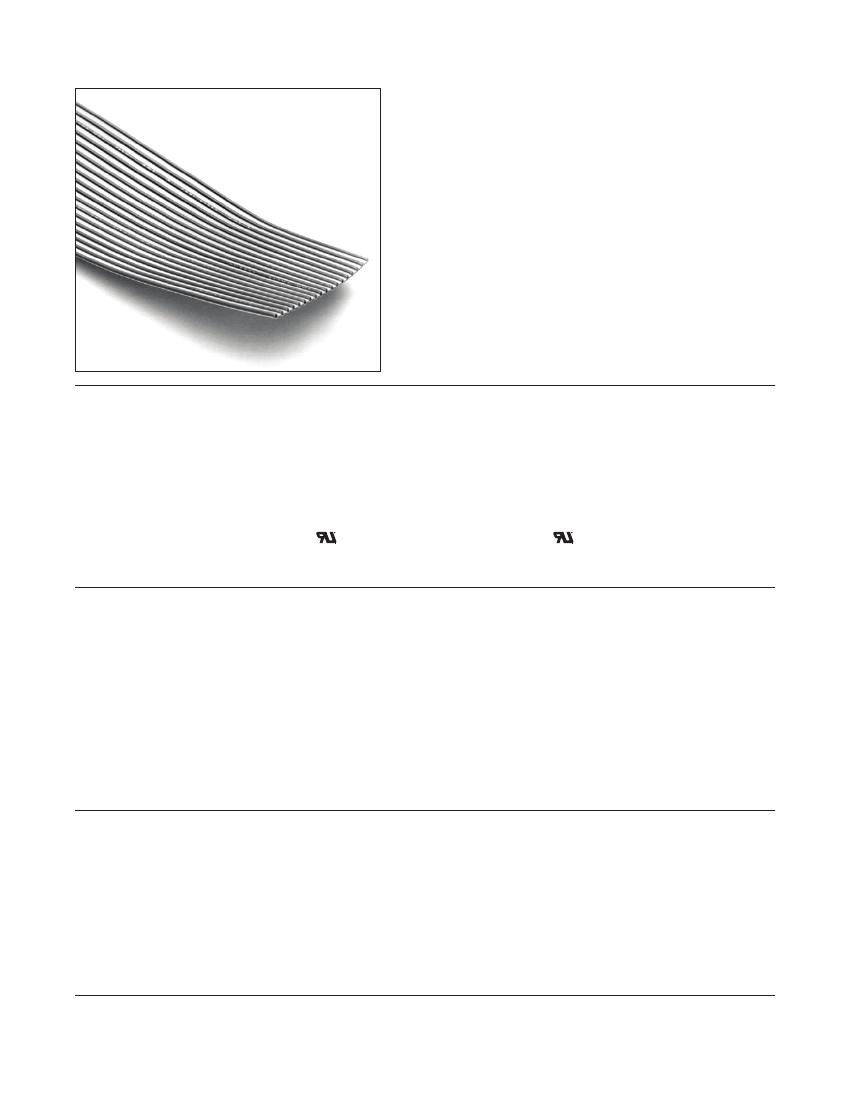

• Designed for power applications requiring higher
current carrying capability
• 18 AWG tinned stranded copper wire provides
flexibility and extended product life
• Individually insulated conductors are laminated to a
PVC backing which can be zipped apart for
branching or discrete terminations
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of www.3M.com/
Interconnects for compliance information
(RIA E1 & C1 apply)
Date Modified: September 1, 2009
TS-0057-C
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Dark Gray Wires
Marking:
Standard: None
Canadian Option:
AWM 20462 105C 300V VW1 3M NU C
AWM IA 80C 150V FT1 EU <50V
Conductors:
18 AWG 19
×
30 AWG [ 19
×
Ø 0.254 ] Tinned Stranded Copper
Electrical
Voltage Rating:
Insulation Resistance:
Characteristic Impedance:
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
USA: 300V
> 1 × 10
10
Ω/10
ft. [ 3 m ]
Unbalanced: 127
Ω
Unbalanced: 9.6 pF/ft [ 31.5 pF/m ]
Unbalanced: 0.15 μH/ft [ 0.49 μH/m ]
Unbalanced: 1.22 ns/ft [ 4.00 ns/m ]
Unbalanced: 83%
Canada: 150V
EU: <50V
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-20°C to +80°C
Flammability Rating:
USA: VW-1
Canada: -20°C to +80°C
Canada: FT1
UL File No.: E42769, Style No: 20462
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
.156" 18 AWG Stranded, PVC
Number of
Conductors
4
5
6
7
3M Part
Number
8132/04
8132/05
8132/06
8132/07
Dimension A
0.564 ± .015 [14.33]
0.720 ± .015 [18.29]
0.876 ± .015 [22.25]
1.032 ± .015 [26.21]
8132 Series
Dimension B
0.624 ± .010 [15.85]
0.780 ± .010 [19.81]
0.936 ± .010 [23.77]
0.468 ± .010 [11.89]
C
(OPTIONAL)
8
9
10
11
12
13
8132/08
8132/09
8132/10
14
15
16
8132/11
8132/12
8132/13
1.188 ± .015 [30.18]
1.344 ± .020 [34.14]
1.500 ± .020 [38.10]
17
18
19
20
8132/14
8132/15
8132/16
1.656 ± .020 [42.06]
1.812 ± .020 [46.02]
1.968 ± .020 [49.99]
1.092 ± .010 [27.74]
1.248 ± .015 [31.70]
1.404 ± .015 [35.66]
21
22
23
8132/17
8132/18
8132/19
8132/20
2.124 ± .020 [53.95]
2.280 ± .025 [57.91]
2.436 ± .025 [61.87]
1.560 ± .015 [39.62]
1.716 ± .015 [43.59]
1.872 ± .015 [47.55]
24
8132/21
8132/22
8132/23
2.592 ± .025 [65.84]
2.748 ± .025 [69.80]
2.904 ± .025 [73.76]
3.060 ± .025 [77.72]
2.028 ± .015 [51.51]
2.184 ± .020 [55.47]
2.340 ± .020 [59.44]
8132/24
3.216 ± .025 [81.69]
3.372 ± .025 [85.65]
3.528 ± .025 [89.61]
2.496 ± .020 [63.40]
2.652 ± .020 [67.36]
2.808 ± .020 [71.32]
2.964 ± .020 [75.29]
3.684 ± .025 [93.57]
3.120 ± .020 [79.25]
3.276 ± .020 [83.21]
3.432 ± .020 [87.17]
3.588 ± .020 [91.14]
Note: Contact 3M for availability of additional conductor counts.
A
B
0.048 Ref
[ 1.22 ]
.156 Typ
[ 3.96 ]
.077
±
.003
[ 1.96 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
Light Gray PVC Carrier
18 AWG, 19 x 30 AWG [19 x Ø 0.254] Tinned
Stranded Copper Conductors
Dark Gray PVC
Insulation Typ
[ ] Dimensions for Reference Only
Note: Red marking on one edge of cable designates wire #1.
Ordering Information
8132 / XX XX
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0057-C
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
