BNC50-4104 datasheet, PDF - EEWORLD Datasheet

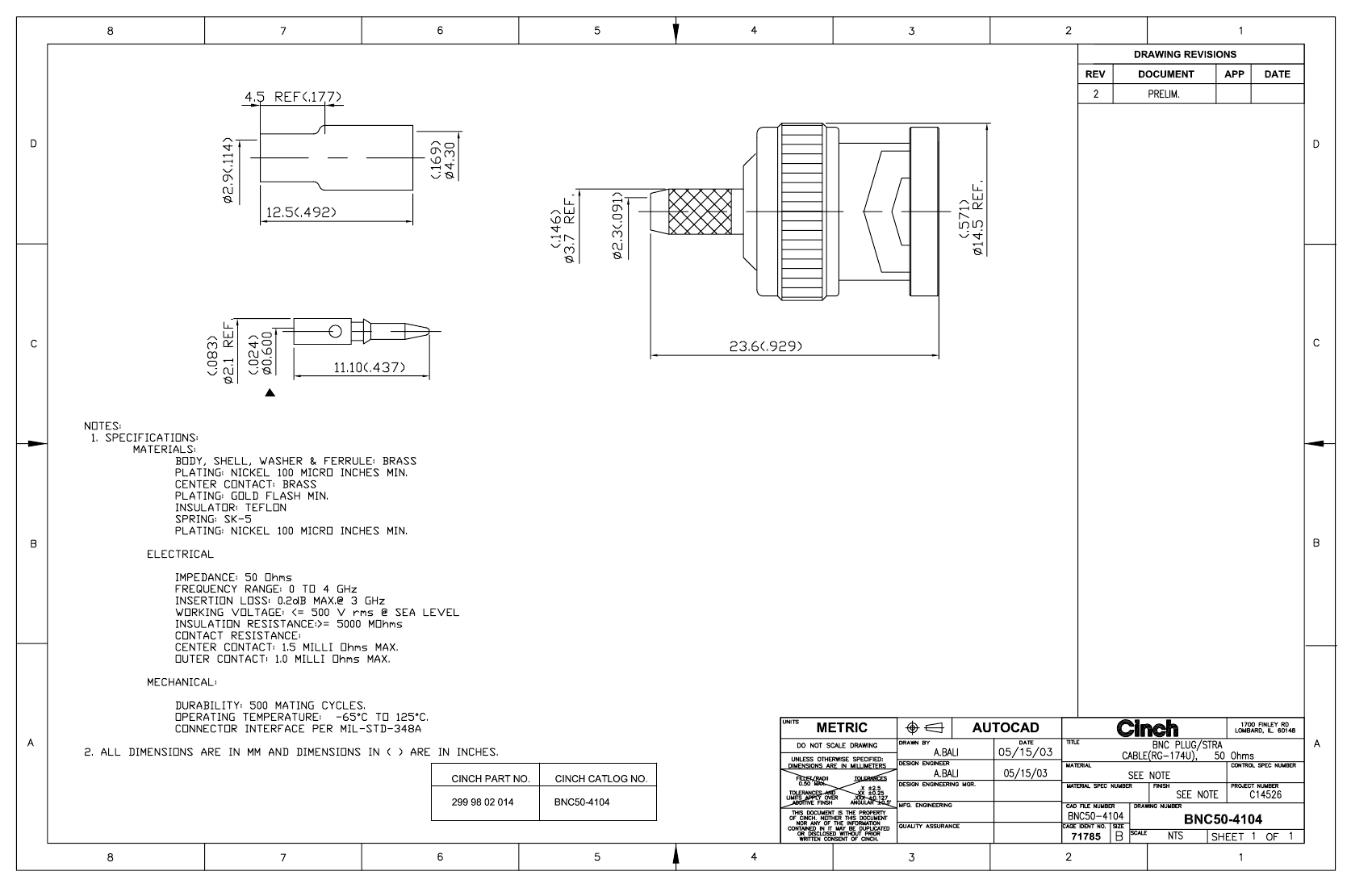

BNC50-4104: DescriptionRF BNC Connector, Male, Cable Mount, Plug; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

BNC50-4104 Overview

RF BNC Connector, Male, Cable Mount, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cinch Connectivity Solutions
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE: RG 174U, INSERTION LOSS MAX AT 3 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BNC50-4104
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

	BNC50-4104	2999802014
Description	RF BNC Connector, Male, Cable Mount, Plug	RF BNC Connector, Male, Cable Mount, Plug,
Reach Compliance Code	unknown	compli
Other features	APPLICABLE CABLE: RG 174U, INSERTION LOSS MAX AT 3 GHZ	APPLICABLE CABLE: RG 174U, INSERTION LOSS MAX AT 3 GHZ
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD FLASH	GOLD FLASH
Contact completed and terminated	GOLD FLASH	GOLD FLASH
Contact point gender	MALE	MALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.2 dB	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO
Manufacturer's serial number	BNC50-4104	2999802014
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Base Number Matches	1	1
