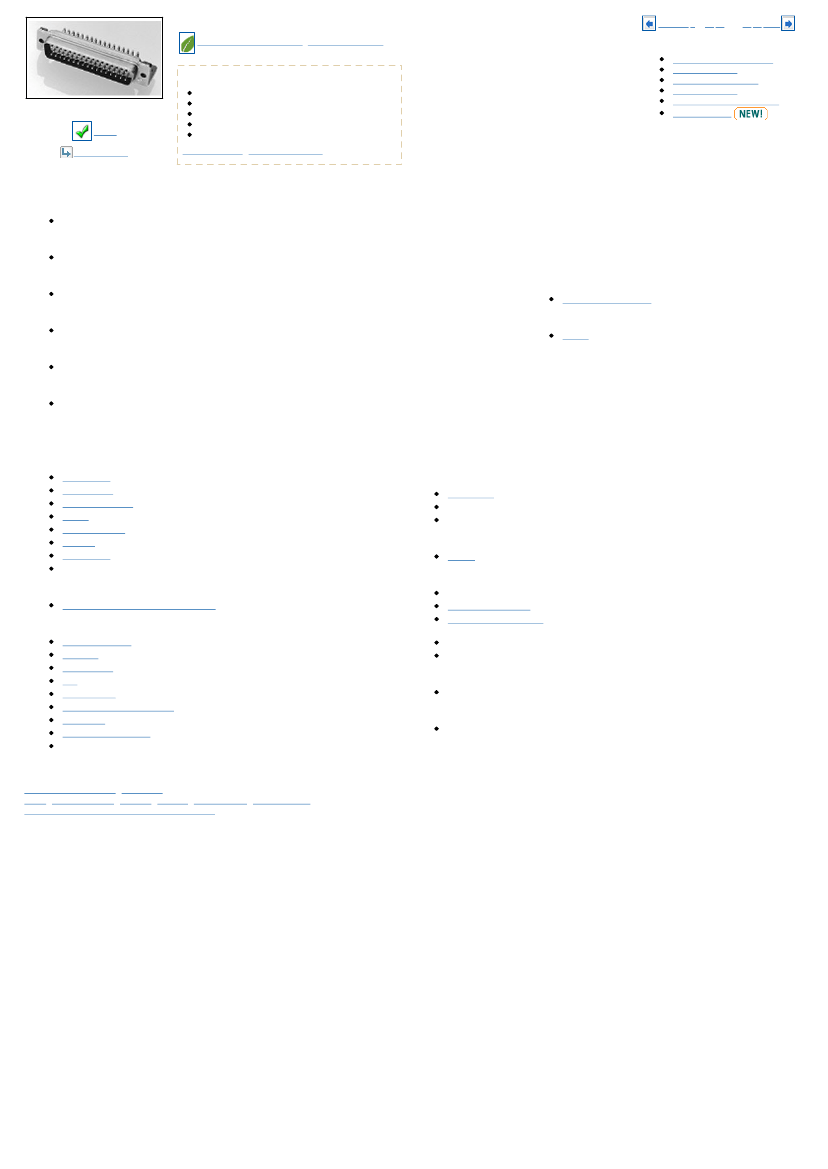

593326-4 Product Details
Subm iniature D Pin/Socket Connectors f or MIL-C -24308 and MIL-C-39029
Alway s EU Ro HS/ELV Co mplian t
(
Statemen t o f Comp lian ce
)
Previous 1
...
16 17
[18]
19 20 Next
Quick Links
Check Pricing & Availability
Search for Tooling
Product Feature Selector
Compare Products
Contact U s About This Product
Request Sam ples
Product Highlights:
Connector
Product Series = 90
Density = Standard
Term inate To Printed Circuit Board
Number of Positions = 62
View all Features
|
Find Sim ilar Products
593326-4
T E Par t Nu m be r: 5 93 32 6-4
Active
Add to Part List
Documentation & A dditional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Inform ation
Related Products:
Tooling
Product Features
(Please use the Product Drawing f or all design activity)
Product Type Features:
Product Ty pe
= Connector
Product Series
= 90
Number of Positions
= 62
Gender
= Plug
PCB Mount Angle
= Right Angle
Shell Size
= 4
Shell Material
= Brass
Comm ent = Customer marking on front shell: (1BO B-007)
Industry Standards:
Termination Related Features:
Term ination (Solder) Post Length (mm [in])
= 3.81 [0.150]
Body Related Features:
Insert Arrangement
= MS18276-2
Blindm ate
= No
Non-Magnetic
= No
Pins
= With
Rear Grom met
= No
Power/Signal/Coax Combination
= No
Shell Plating
= Gold over Copper
Post Diameter (m m [in])
= 0.51 [0.020]
Mount Sty le = Mounting Holes
Other:
Brand = AMP
Conditions for Usage:
Term inate To = Printed Circuit Board
Government/Industry Qualification = No
RoHS/ELV Compliance
= RoHS compliant, ELV com pliant
Lead Free Solder Processes
= Wave solder capable to 240C, Wave solder capable to 260C, Wave
solder capable to 265C
RoHS/ELV Compliance History = Alw ay s was RoHS compliant
NASA Qualification = No
Configuration Related Features:
Density
= Standard
Contact Related Features:
Contact Sty le
= Posted
Contact Material = Copper Alloy
Contact Mating Area Plating Material = G old over Copper
