400C541U350AA0L datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 400C541U350AA0L

400C541U350AA0L: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350V, 540uF, THROUGH HOLE MOUNT, RADIAL LEADED, CAN; CategoryPassive components capacitor; File Size76KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

400C541U350AA0L Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350V, 540uF, THROUGH HOLE MOUNT, RADIAL LEADED, CAN

400C541U350AA0L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	540 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	197 mΩ
JESD-609 code	e3
leakage current	4 mA
Manufacturer's serial number	400C
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	350 V
ripple current	2800 mA
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

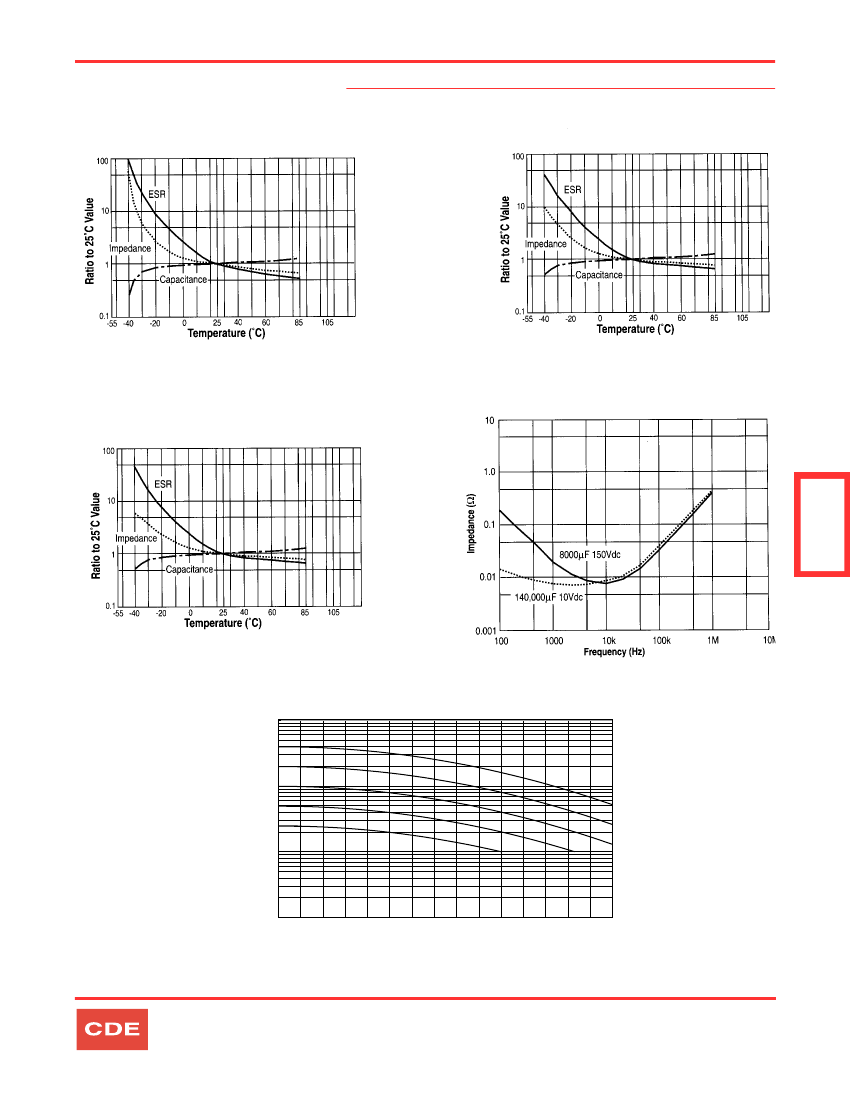

Preview

Download Datasheet

View All

Type 400C, 95

°C,

Long-Life, Computer Grade, Radial Leaded

Twice the Life!

The Type 400C is the PC-mount equivalent for Type 500C

screw-terminal computergrade capacitor. It’s for bus filtering

applications where long life is critical like telecom systems

and industrial power supplies. Type 400C delivers 2 to 3

times the life of Type 4CMC, and above 250 V it has nearly

the same capacitance. Its extended cathode foil assures cool

operation with heatflow from the capacitor element to the

can in all mounting orientations.

Highlights

More than 10 years life in most applications

Ripple Currents to > 50 amps at 55

°C

3-leads

Printed-circuit mounting

Thermal-Pak

extended cathode construction

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

DC Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

40 °C to +95 °C

100 to 500 Vdc

170 F to 29,000 F

20%

3 sqrt CV A 4 mA max, 5 min.

20 °C multiple of 25 °C Z 4 for 100 V

3 for 150 V & up.

Ambient Temperature

45 °C

2.00

Frequency

50 Hz

100 to 160 V

200 to 350 V

400 to 500 V

EIA Ripple Life:

0.80

0.78

60 Hz

0.85

0.83

0.80

120 Hz

1.00

360 Hz 1 kHz

1.05

1.15

1.30

1.08

1.20

1.40

5 kHz

1.08

1.20

1.40

10 kHz

1.08

1.20

1.40

55 °C

1.82

65 °C

1.59

75 °C

1.33

85 °C

1.00

95 °C

0.48

Aluminum

Radial Leaded

Capacitors

3000 h at full load at 85 °C per EIA IS-749

Capacitance 20%

ESR 200% of limit

DCL 100% of limit

500 h at 95 °C. Capacitance, ESR and DCL meet initial requirements.

10 to 55 Hz, 0.06” and 10 g max, 2 h each plane.

Shelf Life Test:

Vibration:

CORNELL

DUBILIER

Your Source For Capacitor Solutions

140 Technology Place

Liberty, SC 29657

(864) 843-2277, Fax (864) 843-3800

http://www.cornell-dubilier.com

E-mail: cde@cornell-dubilier.com

2.135
