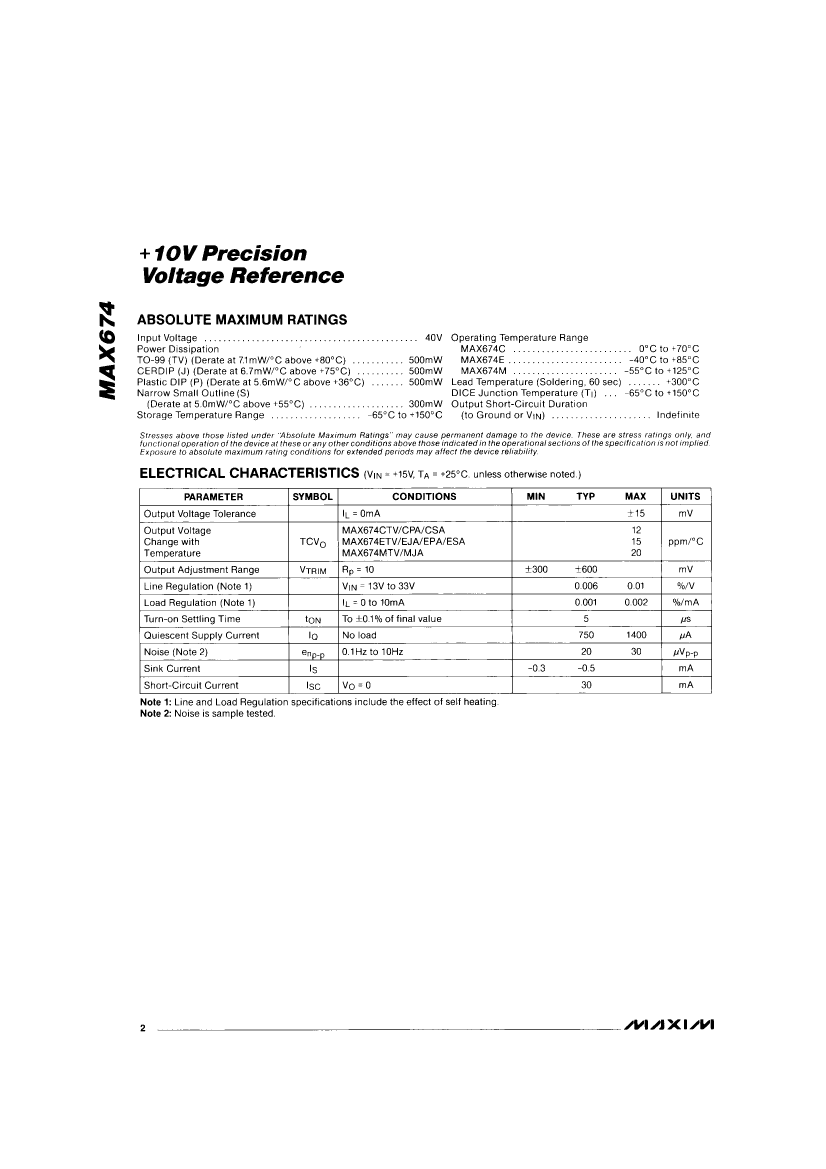

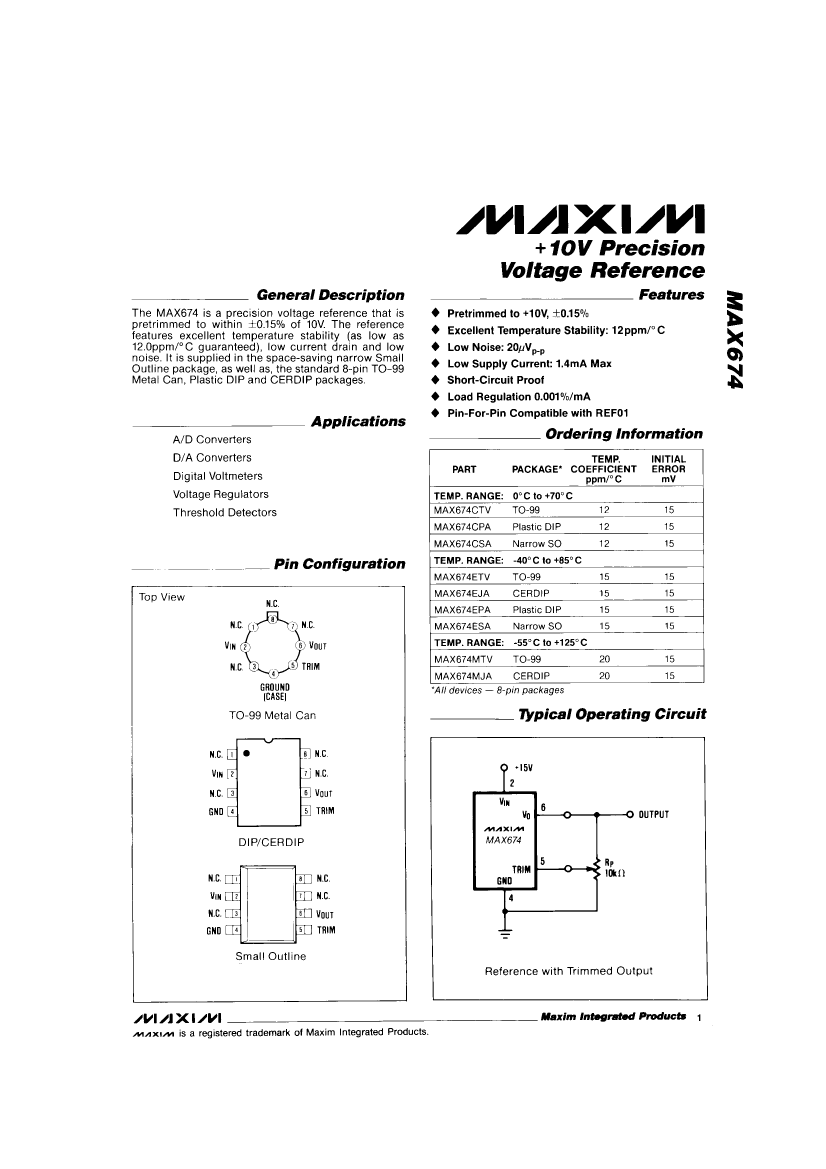

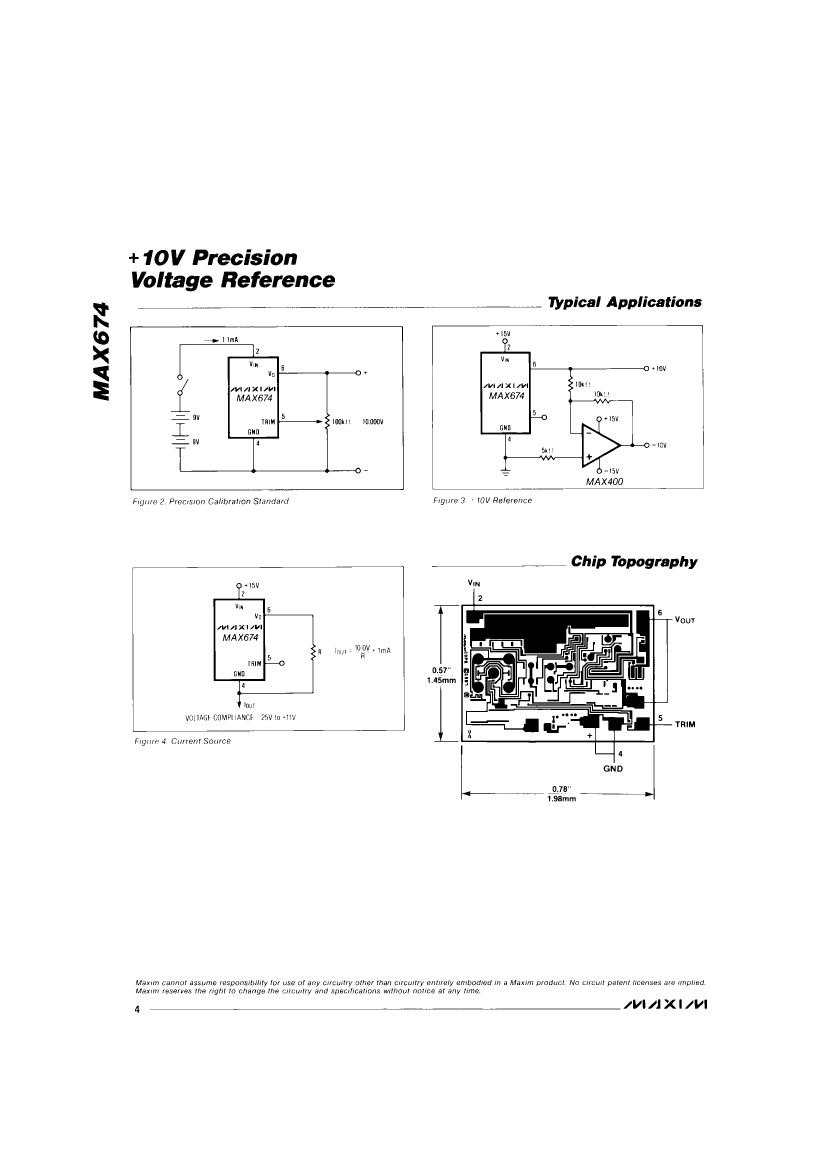

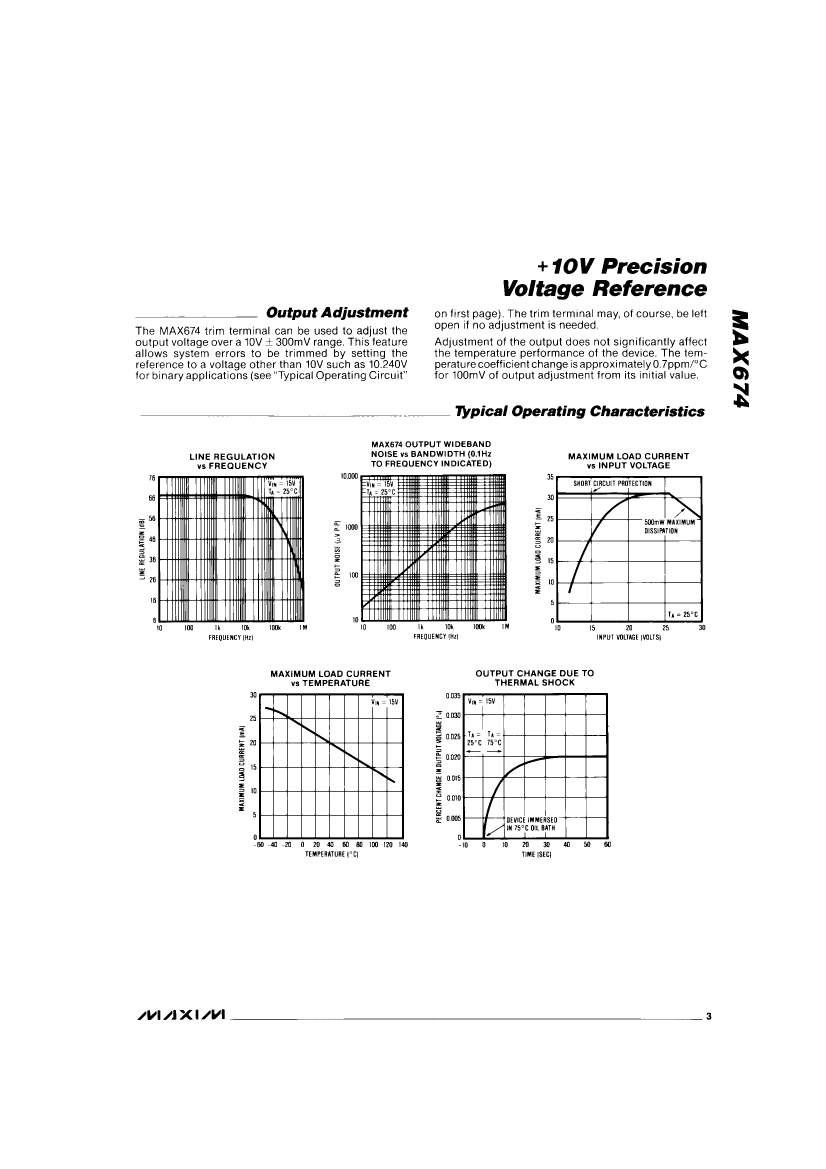

Preview

MAX674MTV: Description1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8; CategoryPower/power management The power supply circuit; File Size111KB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Related ProductsFound14parts with similar functions to MAX674MTV

Download Datasheet Parametric Compare View All

MAX674MTV Overview

1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8

MAX674MTV Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	TO-99
package instruction	TO-99, CAN8,.2
Contacts	8
Reach Compliance Code	_compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.015 V
Minimum output voltage	9.985 V
Nominal output voltage	10 V
Package body material	METAL
encapsulated code	TO-99
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage (Vsup)	33 V
Minimum supply voltage (Vsup)	13 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	20 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.15%

Preview

Download Datasheet

View All

MAX674MTV Related Products

	MAX674MTV	MAX674MJA	MAX674ETV	MAX674CTV	MAX674EJA	MAX674
Description	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, PDSO8
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	125 °C	125 °C	85 °C	70 °C	85 °C	85 Cel
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-	-40 °C	-40 Cel
Maximum output voltage	10.015 V	10.015 V	10.015 V	10.015 V	10.015 V	10.02 V
Minimum output voltage	9.985 V	9.985 V	9.985 V	9.985 V	9.985 V	9.98 V
surface mount	NO	NO	NO	NO	NO	Yes
Maximum voltage temperature coefficient	20 ppm/°C	20 ppm/°C	15 ppm/°C	12 ppm/°C	15 ppm/°C	15 ppm/Cel
Temperature level	MILITARY	MILITARY	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	WIRE	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE	GULL WING
Terminal location	BOTTOM	DUAL	BOTTOM	BOTTOM	DUAL	DUAL
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	-
Parts packaging code	TO-99	DIP	TO-99	TO-99	DIP	-
package instruction	TO-99, CAN8,.2	DIP, DIP8,.3	TO-99, CAN8,.2	TO-99, CAN8,.2	DIP, DIP8,.3	-
Contacts	8	8	8	8	8	-
Reach Compliance Code	_compli	_compli	_compli	_compli	_compli	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	-
JESD-30 code	O-MBCY-W8	R-GDIP-T8	O-MBCY-W8	O-MBCY-W8	R-GDIP-T8	-
JESD-609 code	e0	e0	e0	e0	e0	-
Output times	1	1	1	1	1	-
Nominal output voltage	10 V	10 V	10 V	10 V	10 V	-
Package body material	METAL	CERAMIC, GLASS-SEALED	METAL	METAL	CERAMIC, GLASS-SEALED	-
encapsulated code	TO-99	DIP	TO-99	TO-99	DIP	-
Encapsulate equivalent code	CAN8,.2	DIP8,.3	CAN8,.2	CAN8,.2	DIP8,.3	-
Package shape	ROUND	RECTANGULAR	ROUND	ROUND	RECTANGULAR	-
Package form	CYLINDRICAL	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	245	245	245	245	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum supply voltage (Vsup)	33 V	33 V	33 V	33 V	33 V	-
Minimum supply voltage (Vsup)	13 V	13 V	13 V	13 V	13 V	-
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	-
Maximum voltage tolerance	0.15%	0.15%	0.15%	0.15%	0.15%	-
Humidity sensitivity level	-	1	1	1	1	-
