DM8098N Overview

Inverter, 8098 Series, 6-Func, 2-Input, TTL, PDIP16, DIP-16

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
series	8098
JESD-30 code	R-PDIP-T16
length	19.304 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	2
Number of terminals	16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	17 ns
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

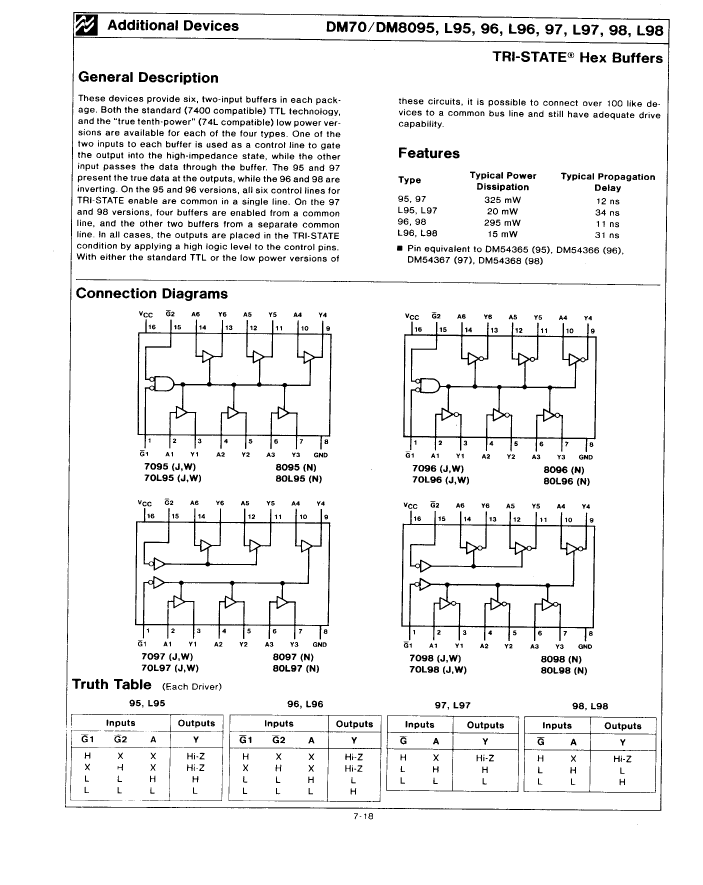

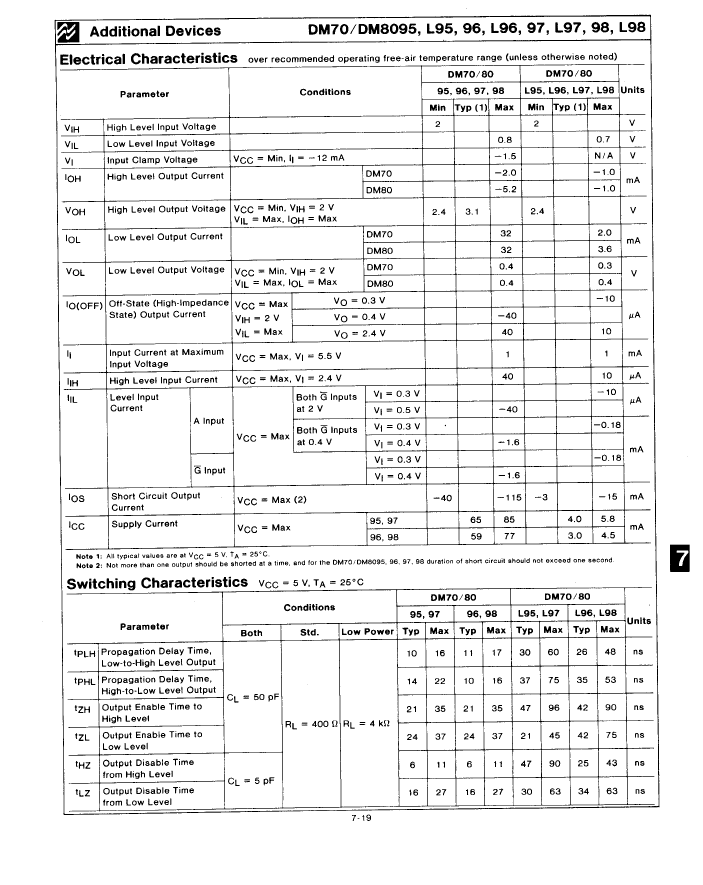

This Material Copyrighted By Its Respective Manufacturer

	DM8098N
Description	Inverter, 8098 Series, 6-Func, 2-Input, TTL, PDIP16, DIP-16
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
series	8098
JESD-30 code	R-PDIP-T16
length	19.304 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	2
Number of terminals	16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	17 ns
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
