AD584JH datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AD584JH

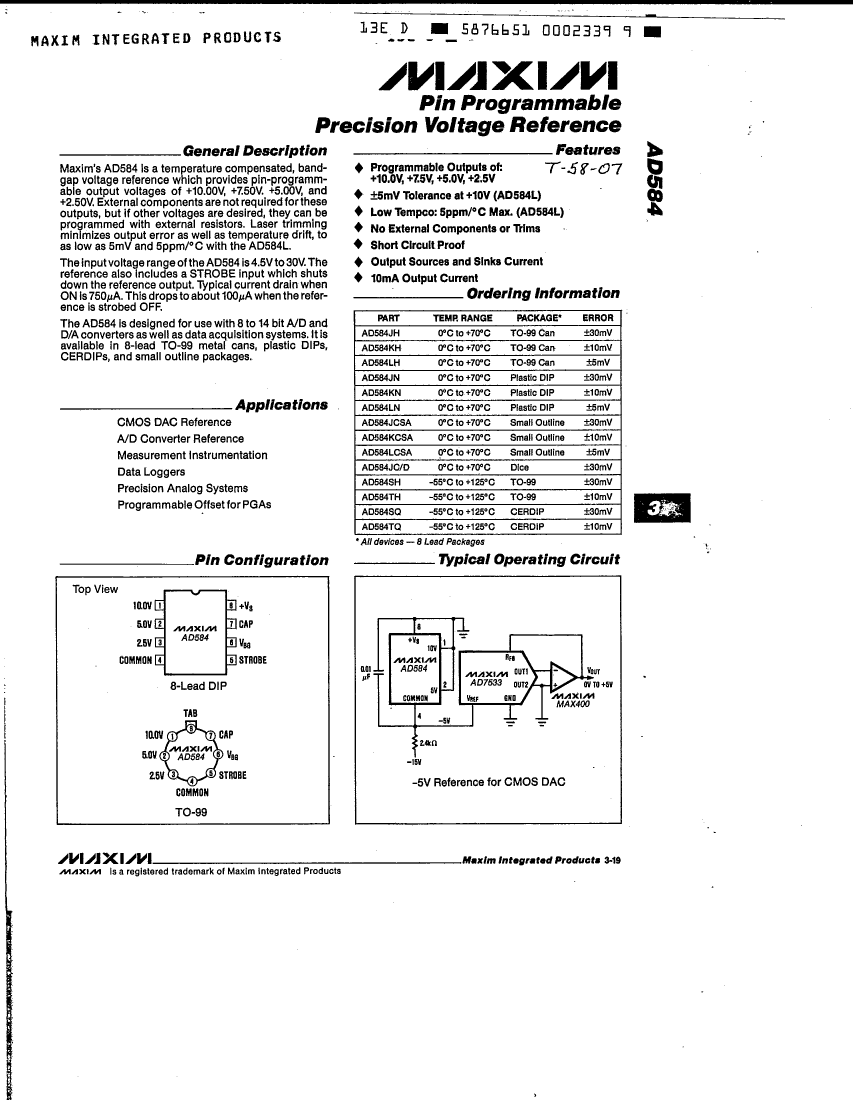

Preview

AD584JH: DescriptionVoltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN; CategoryPower/power management The power supply circuit; File Size516KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

AD584JH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD584JH	-	-	View	Buy Now

AD584JH Overview

Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN

AD584JH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
package instruction	METAL CAN, TO-99, 8 PIN
Reach Compliance Code	not_compliant
Other features	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	2.507 V
Minimum output voltage	2.492 V
Nominal output voltage	2.5 V
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	30 ppm/°C
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.3%
Base Number Matches	1

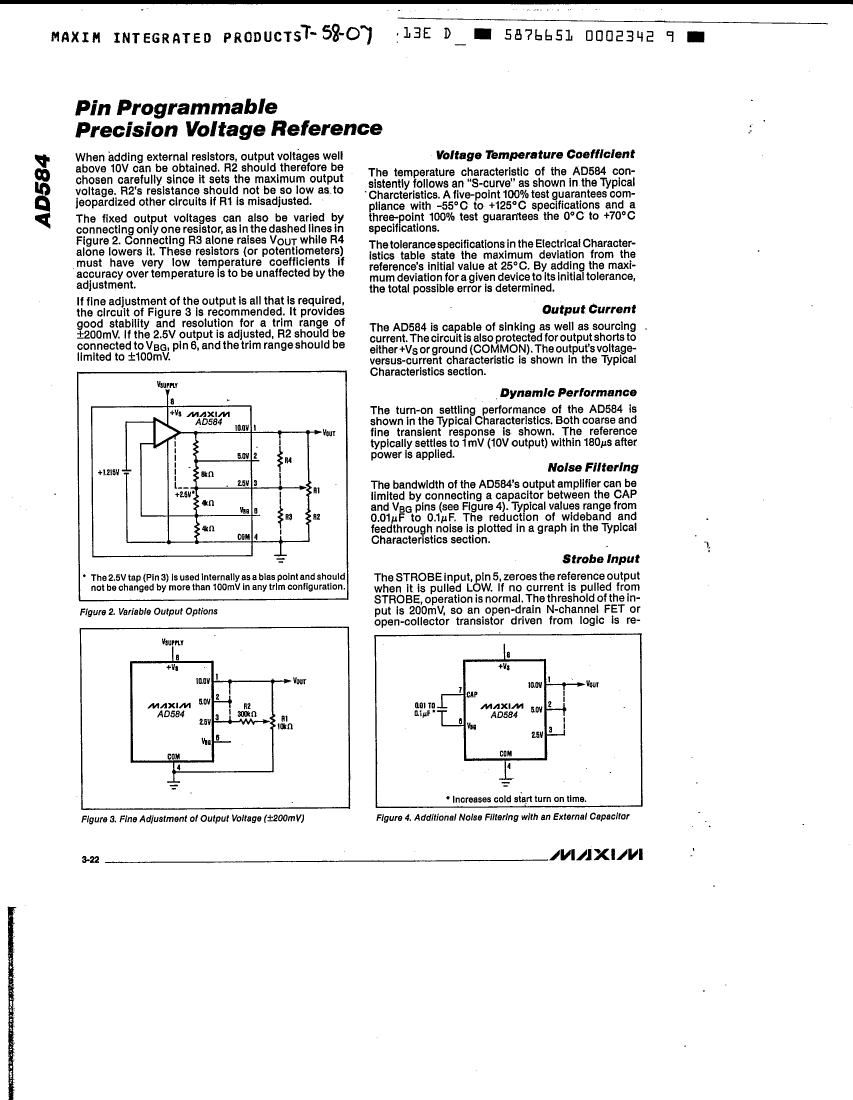

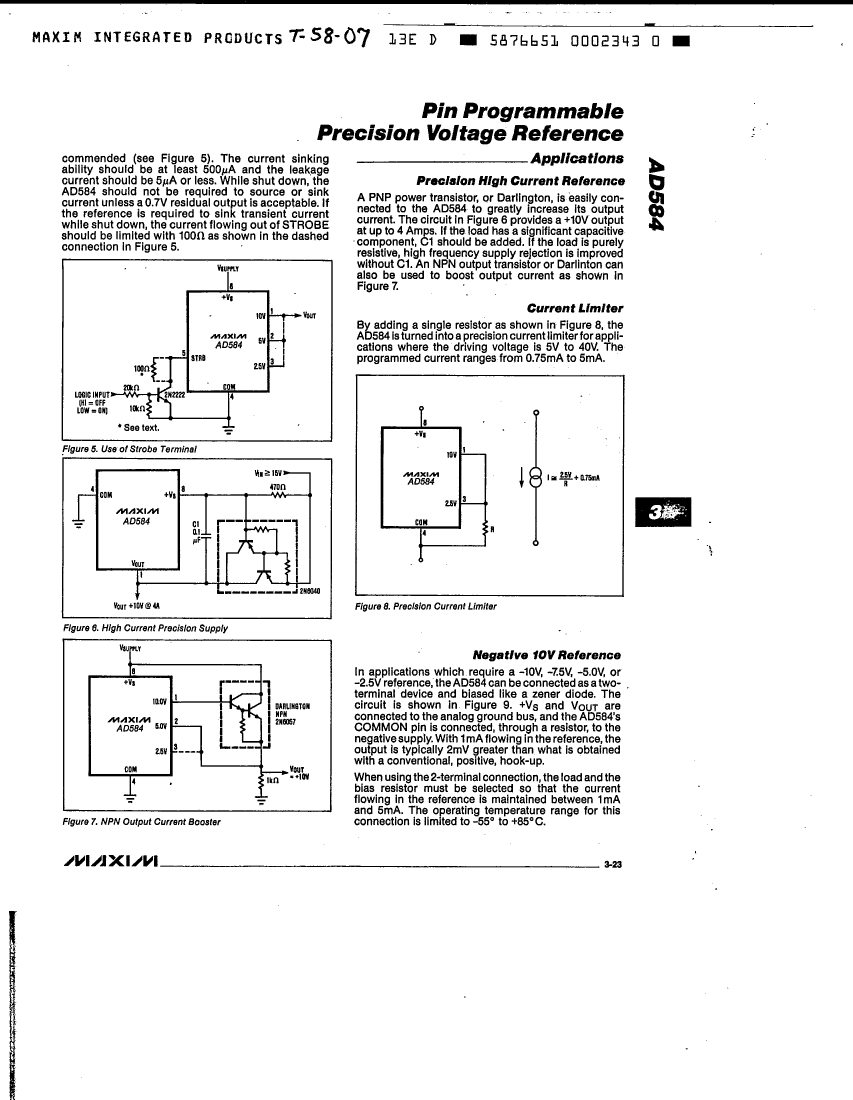

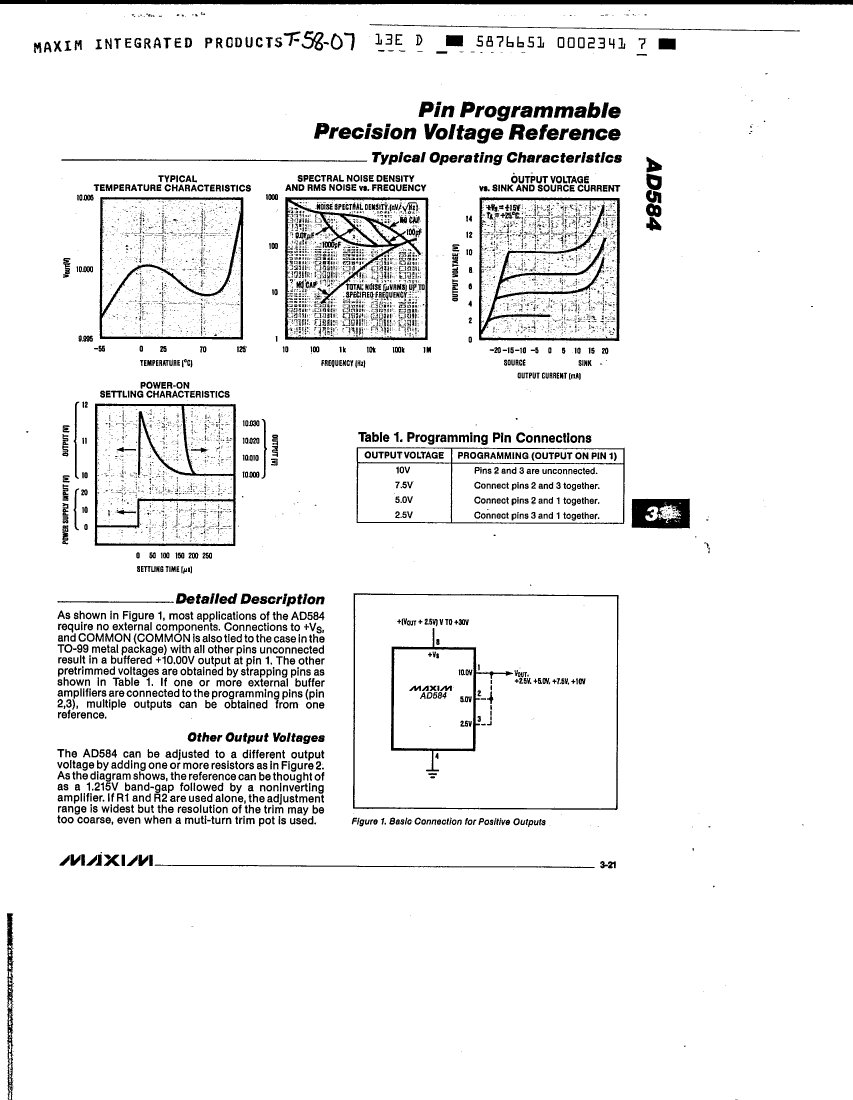

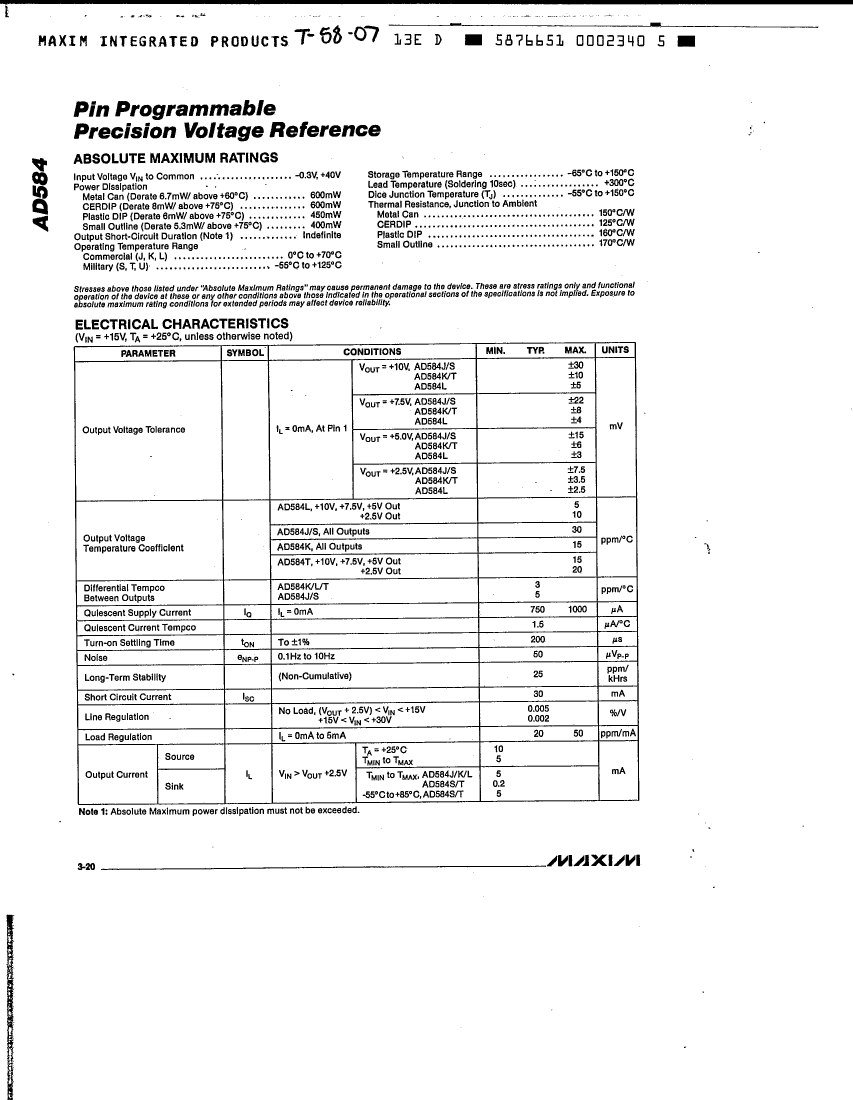

Preview

Download Datasheet

View All

AD584JH Related Products

	AD584JH	AD584TH	AD584SH	AD584JC/D	AD584KN	AD584KH	AD584LH	AD584TQ
Description	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN	Voltage Reference, 10V, BIPolar	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, PDIP8, PLASTIC, DIP-8	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN	Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, CDIP8, CERAMIC, DIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Nominal output voltage	2.5 V	2.5 V	2.5 V	10 V	2.5 V	2.5 V	2.5 V	2.5 V
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	DIE OR CHIP	DIP8,.3	CAN8,.2	CAN8,.2	DIP8,.3
Maximum voltage temperature coefficient	30 ppm/°C	20 ppm/°C	30 ppm/°C	30 ppm/°C	15 ppm/°C	15 ppm/°C	10 ppm/°C	20 ppm/°C
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Maximum voltage tolerance	0.3%	0.14%	0.3%	0.3%	0.14%	0.14%	0.1%	0.14%
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	-	Maxim
package instruction	METAL CAN, TO-99, 8 PIN	TO-99, CAN8,.2	METAL CAN, TO-99, 8 PIN	-	PLASTIC, DIP-8	METAL CAN, TO-99, 8 PIN	METAL CAN, TO-99, 8 PIN	CERAMIC, DIP-8
Other features	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	-	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE	ADJUSTABLE OUTPUT VOLTAGE OF 10, 7.5, 5 VOLT AVAILABLE
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	-	R-PDIP-T8	O-MBCY-W8	O-MBCY-W8	R-CDIP-T8
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0
Number of functions	1	1	1	-	1	1	1	1
Output times	1	3	1	-	1	1	1	1
Number of terminals	8	8	8	-	8	8	8	8
Maximum output voltage	2.507 V	2.503 V	2.507 V	-	2.503 V	2.503 V	2.502 V	2.503 V
Minimum output voltage	2.492 V	2.496 V	2.492 V	-	2.496 V	2.496 V	2.497 V	2.496 V
Package body material	METAL	METAL	METAL	-	PLASTIC/EPOXY	METAL	METAL	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	-	RECTANGULAR	ROUND	ROUND	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE
Maximum supply voltage (Vsup)	30 V	30 V	30 V	-	30 V	30 V	30 V	30 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	-	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	-	NO	NO	NO	NO
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	-	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	-	DUAL	BOTTOM	BOTTOM	DUAL
Fine-tuning/adjustable output	YES	YES	YES	-	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	1	1	-
Is Samacsys	-	N	N	N	N	N	-	-
