Bus system cable - SAC-5PY-0,15MS/2X0,35-920MS-FS - 1018727
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system cable, CANopen , DeviceNet™, 5-position, PUR halogen-free, violet RAL 4001, shielded, Plug
straight M12 SPEEDCON, A-coded, on Socket straight M12 SPEEDCON, A-coded and Plug straight M12
SPEEDCON, A-coded, cable length: 0.35 m, Shield connected to pin 1
®
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626504704
85444290
1
Technical data
Dimensions
Length of cable
0.35 m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (Plug / socket)
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Signal type/category
Status display
Overvoltage category
Degree of pollution
4A
48 V AC
60 V DC
5
≥ 100 MΩ
A - standard
CANopen
No
II
3
®
DeviceNet™
Material
Flammability rating according to UL 94
Contact material
Contact surface material
HB
CuSn
Ni/Au
01/03/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1018727
Bus system cable - SAC-5PY-0,15MS/2X0,35-920MS-FS - 1018727
Technical data
Material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
TPU GF
TPU, hardly inflammable, self-extinguishing
Nickel-plated brass
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Cable structure
Conductor cross section
CAN Bus/DeviceNet
920
21198 (80°C/300 V)
2xAWG24/19+2xAWG22/19
2x 0.25 mm² (Data cable)
2x 0.34 mm² (Power supply)
1x 0.34 mm² (Drain wire)
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
24
22
19x 0.13 mm
19x 0.15 mm
1.95 mm ±0.05 mm (Data cable)
1.4 mm ±0.05 mm (Power supply)
Red-black, blue-white
2 cores to the pair
Plastic-coated aluminum foil, aluminum side outside
2 pairs around a drain wire in the center to the core
Tinned copper braided shield
80 %
violet RAL 4001
6.7 mm ±0,3 mm
5xD
10 x D
5000000
70 mm
10 x D
4.5 m
3 m/s
3 m/s²
90 kg/km
PUR
Foamed PE (Data cable)
PE (Power supply)
01/03/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1018727
Bus system cable - SAC-5PY-0,15MS/2X0,35-920MS-FS - 1018727
Technical data
Cable
Conductor material
Insulation resistance
Loop resistance
Cable capacity
Wave impedance
Attenuation
Tin-plated Cu litz wires
≥ 5 GΩ*km (Data cable)
≥ 5 GΩ*km (Power supply)
≤ 181.80 Ω/km (Data cable)
≤ 114.80 Ω/km (Power supply)
nom. 40 nF/km (Data cable)
120 Ω ±10 % (with 1 MHz)
≤ 22.9 dB/km (with 1 MHz)
≤ 16.4 dB/km (At 500 kHz)
≤ 9.5 dB/km (At 125 kHz)
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
≤ 300 V (Peak value, not for high-power applications)
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
UL 1581, Sec. 1060 (FT-1)
IEC 60332-1
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-free
Other resistance
Ambient temperature (operation)
in accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Low adhesion
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
4
5
3
Schematic diagram
3
5
4
1
2
2
1
Pin assignment M12 male connector, 5-pos., A-coded, male side
Pin assignment M12 socket, 5-pos., A-coded, socket side view
01/03/2019 Page 3 / 4
https://www.phoenixcontact.com/in/products/1018727
Bus system cable - SAC-5PY-0,15MS/2X0,35-920MS-FS - 1018727
Cable cross section

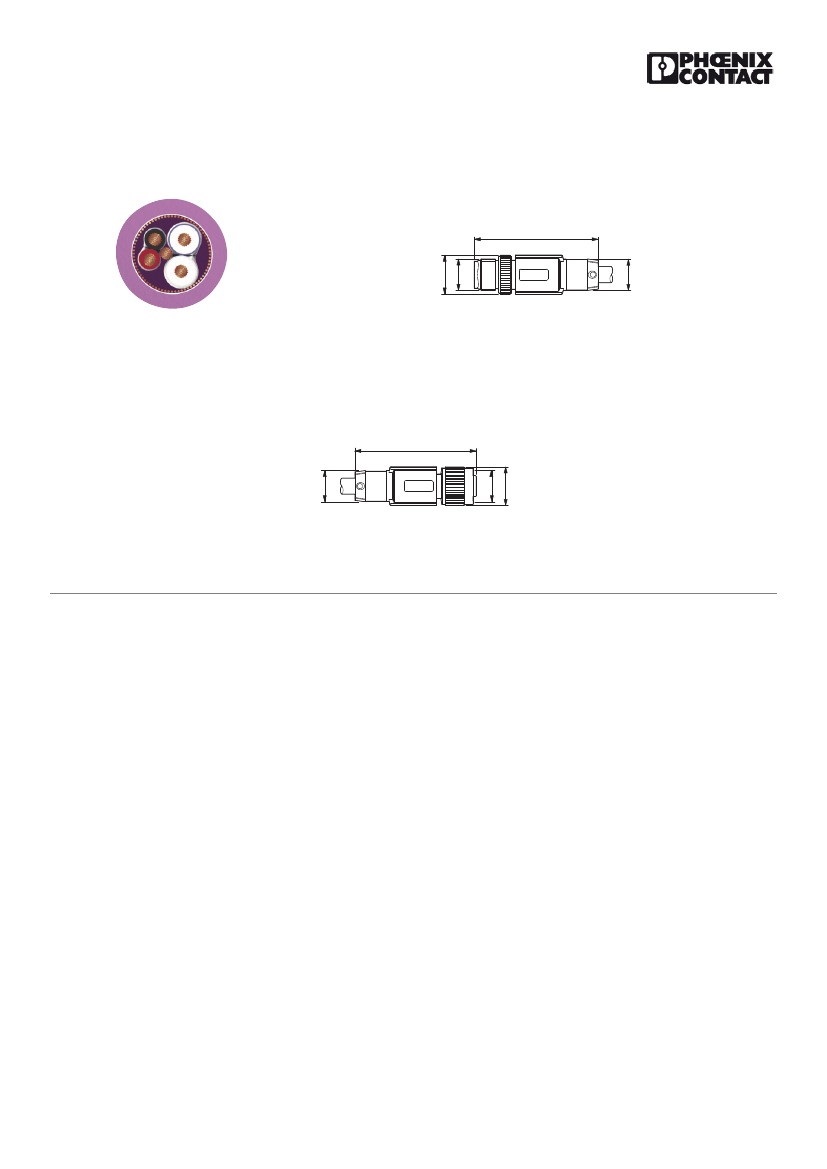

Dimensional drawing
47,3
Ø14,8
M12
CAN Bus/DeviceNet [920]
M12 SPEEDCON plug, straight
Dimensional drawing
44,5
M12
Ø12
M12-SPEEDCON socket, straight
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
Ø15
Ø12
01/03/2019 Page 4 / 4
