DF2S16FS(TL3,T) datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> DF2S16FS(TL3,T)

DF2S16FS(TL3,T): DescriptionZener Diode, 16V V(Z), 5.56%, Silicon, Unidirectional; CategoryDiscrete semiconductor diode; File Size168KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

DF2S16FS(TL3,T) Overview

Zener Diode, 16V V(Z), 5.56%, Silicon, Unidirectional

DF2S16FS(TL3,T) Parametric

Parameter Name	Attribute value
package instruction	R-PDSO-F2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-F2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Nominal reference voltage	16 V
surface mount	YES
technology	ZENER
Terminal form	FLAT
Terminal location	DUAL
Maximum voltage tolerance	5.56%
Working test current	5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

DF2S16FS

ESD Protection Diodes

Silicon Epitaxial Planar

DF2S16FS

1. Applications

•

ESD Protection

This product is designed for protection against electrostatic discharge (ESD) and is not intended for any other

purpose, including, but not limited to, voltage regulation.

Note:

2. Packaging and Internal Circuit

1: Cathode

2: Anode

SOD-923

1: Cathode

2: Anode

fSC

The SOD-923 package is recommended.

Package

SOD-923

fSC

Product name

DF2S16FS,L3M (Note 1)

DF2S16FS,L3J , DF2S16FS,L3F

Note 1: The product name of the devices housed in the SOD-923 package are suffixed with

the "M".

Start of commercial production

2013-12

2014-07-18

Rev.3.0

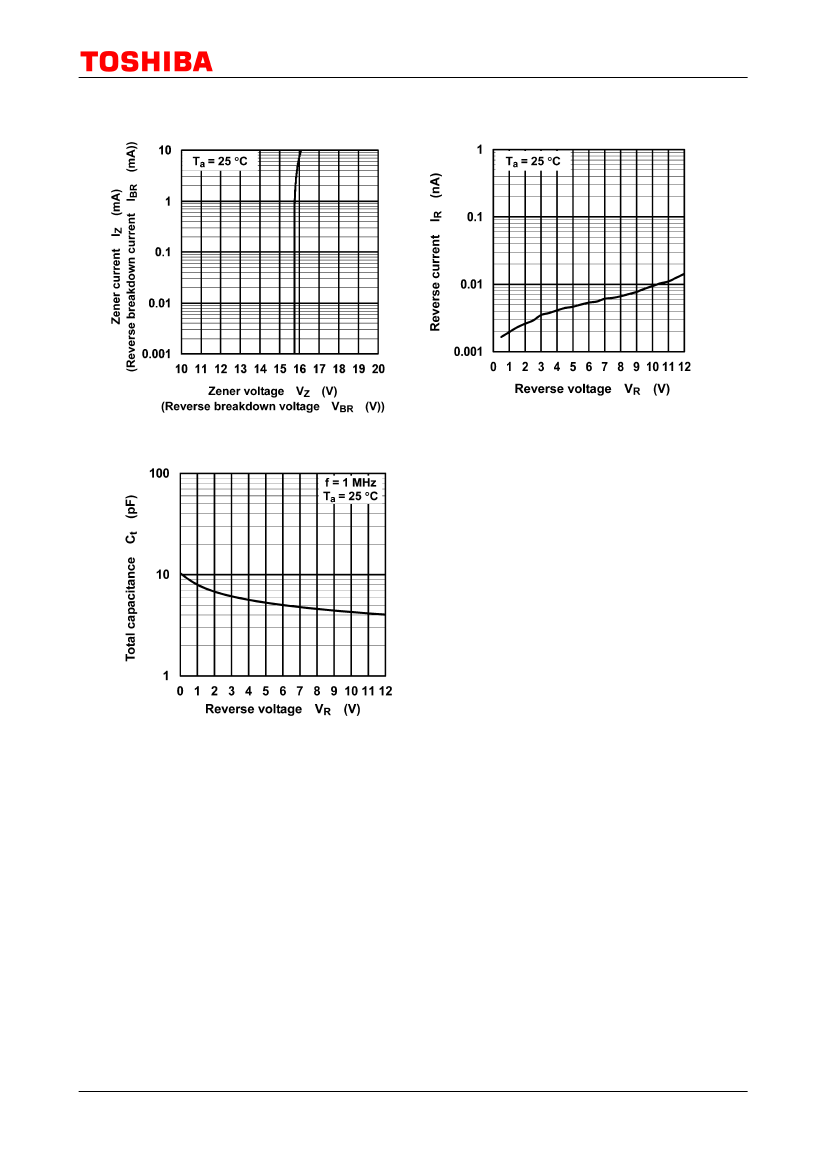

DF2S16FS(TL3,T) Related Products

	DF2S16FS(TL3,T)	DF2S16FS(TL3CNOI,E	DF2S16FS,L3M(T	DF2S16FS,L3F	DF2S16FS,L3NKODF(A
Description	Zener Diode, 16V V(Z), 5.56%, Silicon, Unidirectional	Zener Diode, 16V V(Z), 5.56%, Silicon, Unidirectional	Zener Diode, 16V V(Z), 5.56%, Silicon, Unidirectional	VOLTAGE REGULATOR DIODE	Zener Diode, 16V V(Z), 5.56%, Silicon, Unidirectional
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Base Number Matches	1	1	1	1	1
package instruction	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	-	R-PDSO-F2
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE
Diode component materials	SILICON	SILICON	SILICON	-	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	-	ZENER DIODE
JESD-30 code	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	-	R-PDSO-F2
Number of components	1	1	1	-	1
Number of terminals	2	2	2	-	2
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	-	UNIDIRECTIONAL
Nominal reference voltage	16 V	16 V	16 V	-	16 V
surface mount	YES	YES	YES	-	YES
technology	ZENER	ZENER	ZENER	-	ZENER
Terminal form	FLAT	FLAT	FLAT	-	FLAT
Terminal location	DUAL	DUAL	DUAL	-	DUAL
Maximum voltage tolerance	5.56%	5.56%	5.56%	-	5.56%
Working test current	5 mA	5 mA	5 mA	-	5 mA
