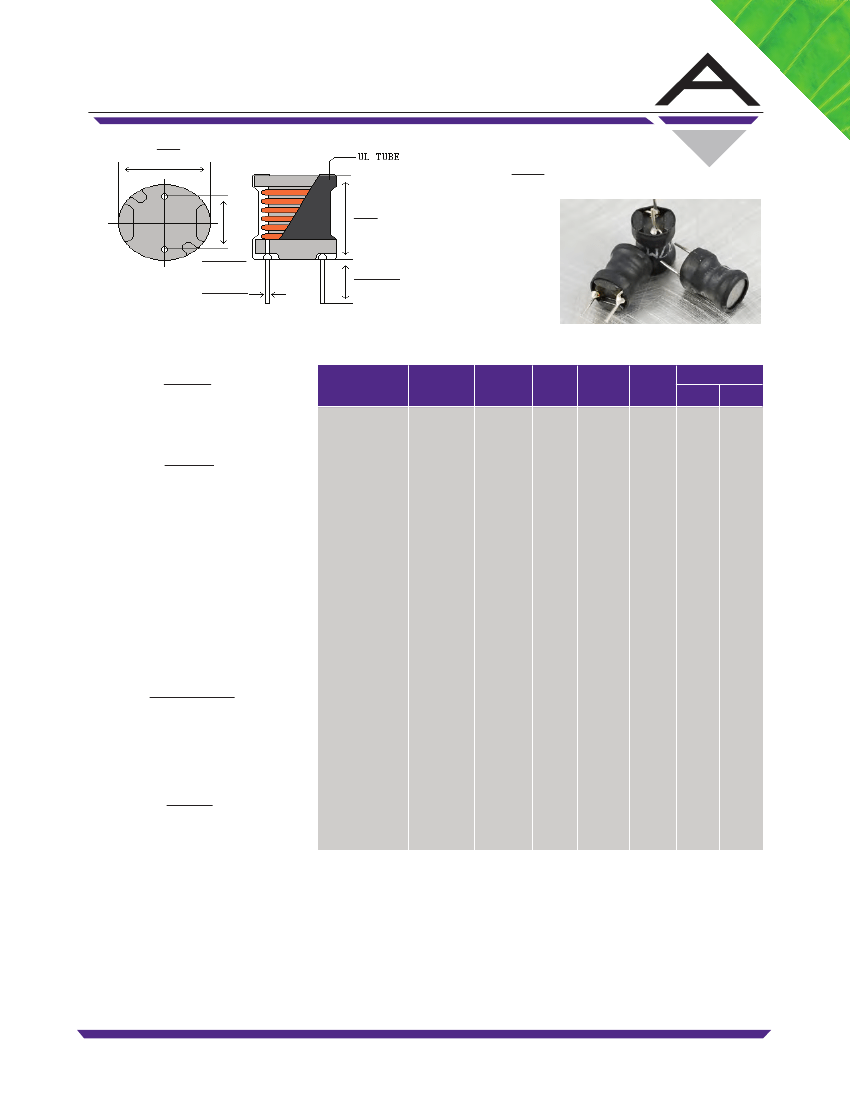

RB810
Radial Bobbin Inductors
.374
(9.5)
MAX.
Dimensions:
Inches
(mm)
.453
(11.5)
MAX.
0.197±0.20
(5.00±0.5)
0.26±0.02
(0.65±0.05)
0.197±0.39
(5.00±1.0)
Features
•
•
•
Small Foot Print.
Extensive Inductance Range
UL Polyolefin Tubing
Electrical
Allied
Part
Number
RB810-100K-RC
RB810-120K-RC
RB810-150K-RC
RB810-180K-RC
RB810-220K-RC
RB810-270K-RC
RB810-330K-RC
RB810-390K-RC
RB810-470K-RC
RB810-560K-RC
RB810-680K-RC
RB810-820K-RC
RB810-101K-RC
RB810-121K-RC
RB810-151K-RC
RB810-181K-RC
RB810-221K-RC
RB810-271K-RC
RB810-331K-RC
RB810-391K-RC
RB810-471K-RC
RB810-561K-RC
RB810-681K-RC
RB810-821K-RC
RB810-102K-RC
RB810-122K-RC
RB810-152K-RC
RB810-182K-RC
RB810-222K-RC
RB810-272K-RC
RB810-332K-RC
RB810-392K-RC
RB810-472K-RC
RB810-562K-RC
RB810-682K-RC
RB810-822K-RC
RB810-103K-RC
RB810-123K-RC
RB810-153K-RC
RB810-183K-RC
Inductance
(µh)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
Tolerance
(%)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR
Max.
(Ω)
0.030
0.035
0.040
0.040
0.050
0.055
0.075
0.085
0.100
0.120
0.150
0.190
0.200
0.240
0.340
0.360
0.480
0.550
0.650
0.850
1.00
1.10
1.40
1.90
2.20
2.80
3.20
3.60
4.80
5.60
7.60
8.90
9.60
12.0
14.0
17.5
21.0
28.0
32.0
36.0
SRF
Min.
(MHz)
22
20
17
15
12
12
11
10.3
9.5
8.6
7.5
6.6
5.5
5.3
4.5
4.4
4.4
4.0
3.5
3.0
2.5
2.3
2.0
2.0
2.0
1.6
1.3
1.3
1.3
1.2
1.0
0.9
0.9
0.8
0.7
0.6
0.6
0.5
0.5
0.4
Isat
(A)
4.20
3.90
3.60
3.30
2.90
2.60
2.40
2.20
2.00
1.80
1.60
1.50
1.40
1.20
1.10
1.00
0.92
0.84
0.75
0.70
0.63
0.58
0.52
0.48
0.43
0.40
0.35
0.32
0.29
0.26
0.24
0.22
0.20
0.18
0.16
0.15
0.13
0.12
0.11
0.10
Irms (A)
20ºC Rise 40ºC Rise
Inductance Range:
10uh ~ 18,000uh
Tolerance:
10% over entire range.
Test Frequency:
100KHz, .01V
Operating Temperature:
-55ºC to +
125ºC.
Isat:
Based on Inductance change by
no more than 10% of initial value.
Irms:
Current at which the temperature
of the part will increase by 20º and 40º.
as shown from 25º ambient.
Under no circumstances should the
temperature of the part increase to more
than 125ºC
Test Equipment
Inductance:
HP4284A.
DCR:
CH-301 Current Source & DCR
Meter
Current:
CH-301 Current Source & DCR
Meter
SRF:
9461L
Physical
Packaging:
600 pieces per bag.
Marking:
EIA Inductance Code
4.00
3.75
3.52
3.30
3.20
2.87
2.65
2.44
2.22
2.00
1.77
1.54
1.30
1.22
1.14
1.06
0.98
0.90
0.82
0.85
0.67
0.59
0.51
0.43
0.35
0.33
0.31
0.29
0.27
0.25
0.23
0.21
0.20
0.18
0.16
0.14
0.12
0.11
0.10
0.09
5.30
5.10
4.80
4.50
4.20
3.90
3.60
3.30
3.00
2.70
2.40
2.10
1.80
1.70
1.60
1.50
1.40
1.30
1.10
1.00
0.90
0.80
0.70
0.60
0.50
0.47
0.45
0.42
0.39
0.36
0.33
0.31
0.28
0.25
0.23
0.20
0.17
0.15
0.14
0.12
