IS61LV6424-15PQI datasheet, PDF

Datasheet> All Categories > storage> storage> IS61LV6424-15PQI

IS61LV6424-15PQI: DescriptionStandard SRAM, 64KX24, 15ns, CMOS, PQFP100, PLASTIC, QFP-100; Categorystorage storage; File Size391KB，10 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric Compare View All

IS61LV6424-15PQI Overview

Standard SRAM, 64KX24, 15ns, CMOS, PQFP100, PLASTIC, QFP-100

IS61LV6424-15PQI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Integrated Silicon Solution ( ISSI )
Parts packaging code	QFP
package instruction	PLASTIC, QFP-100
Contacts	100
Reach Compliance Code	compliant
ECCN code	3A991.B.2.A
Maximum access time	15 ns
Other features	LOW POWER STANDBY MODE
I/O type	COMMON
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
memory density	1572864 bit
Memory IC Type	STANDARD SRAM
memory width	24
Number of functions	1
Number of terminals	100
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64KX24
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.7X.9
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	3.22 mm
Maximum standby current	0.025 A
Minimum standby current	3 V
Maximum slew rate	0.17 mA
Maximum supply voltage (Vsup)	3.63 V
Minimum supply voltage (Vsup)	2.97 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
Base Number Matches	1

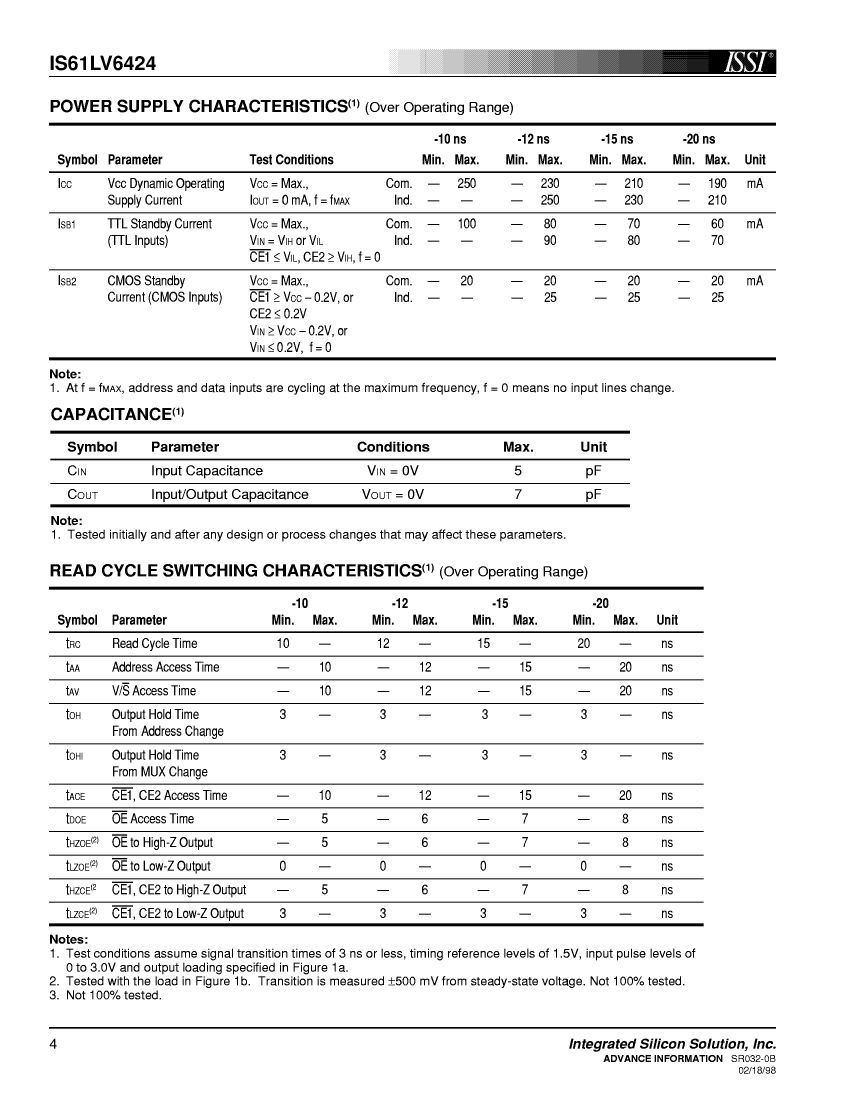

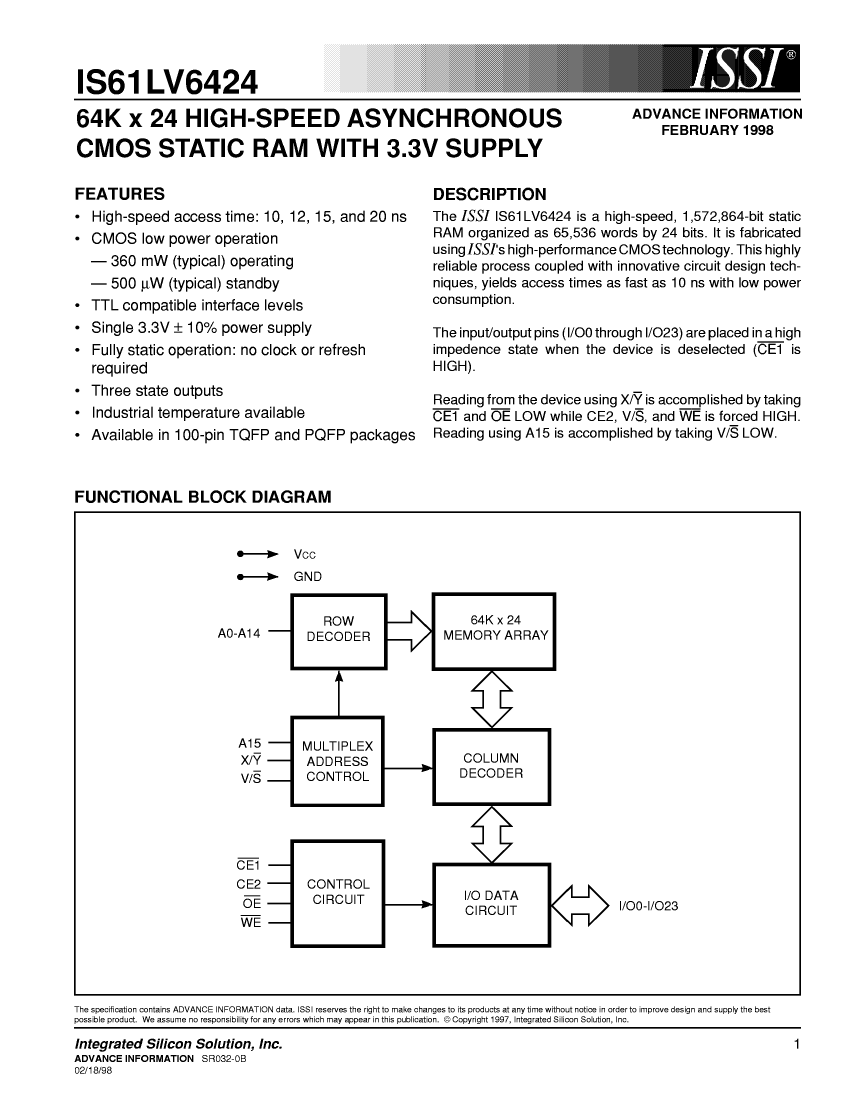

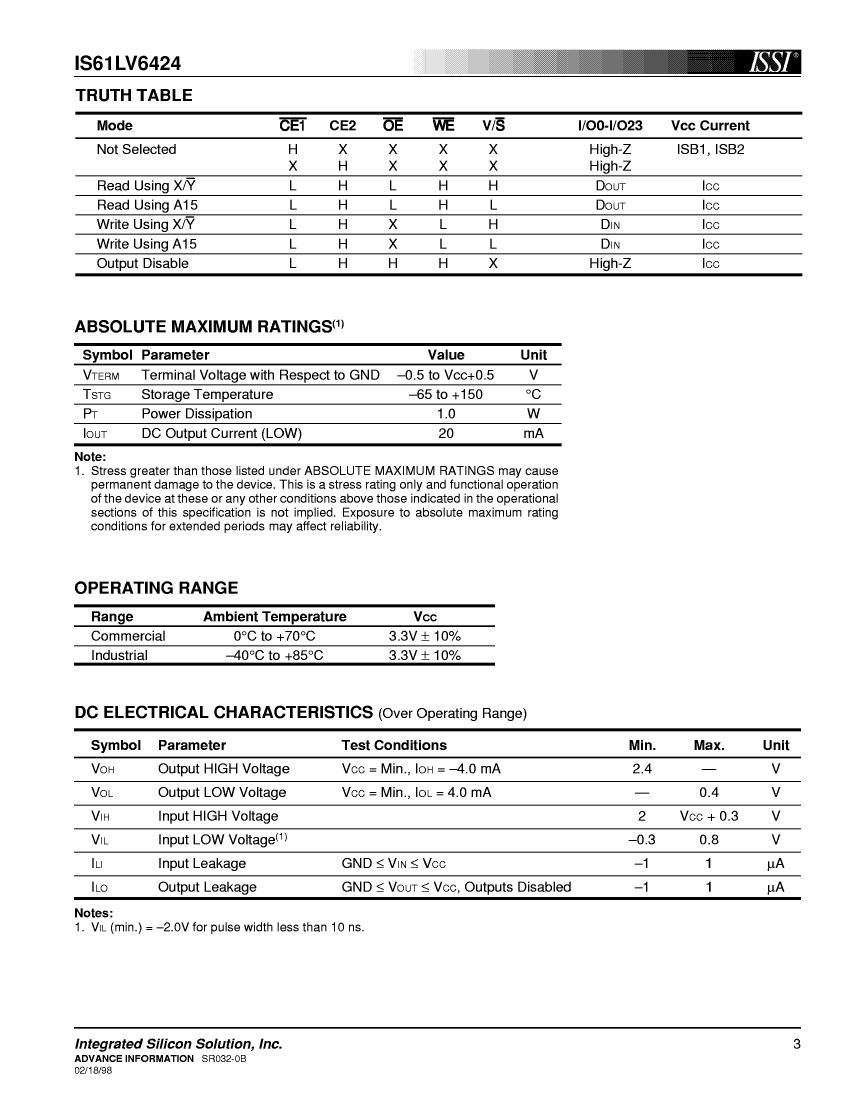

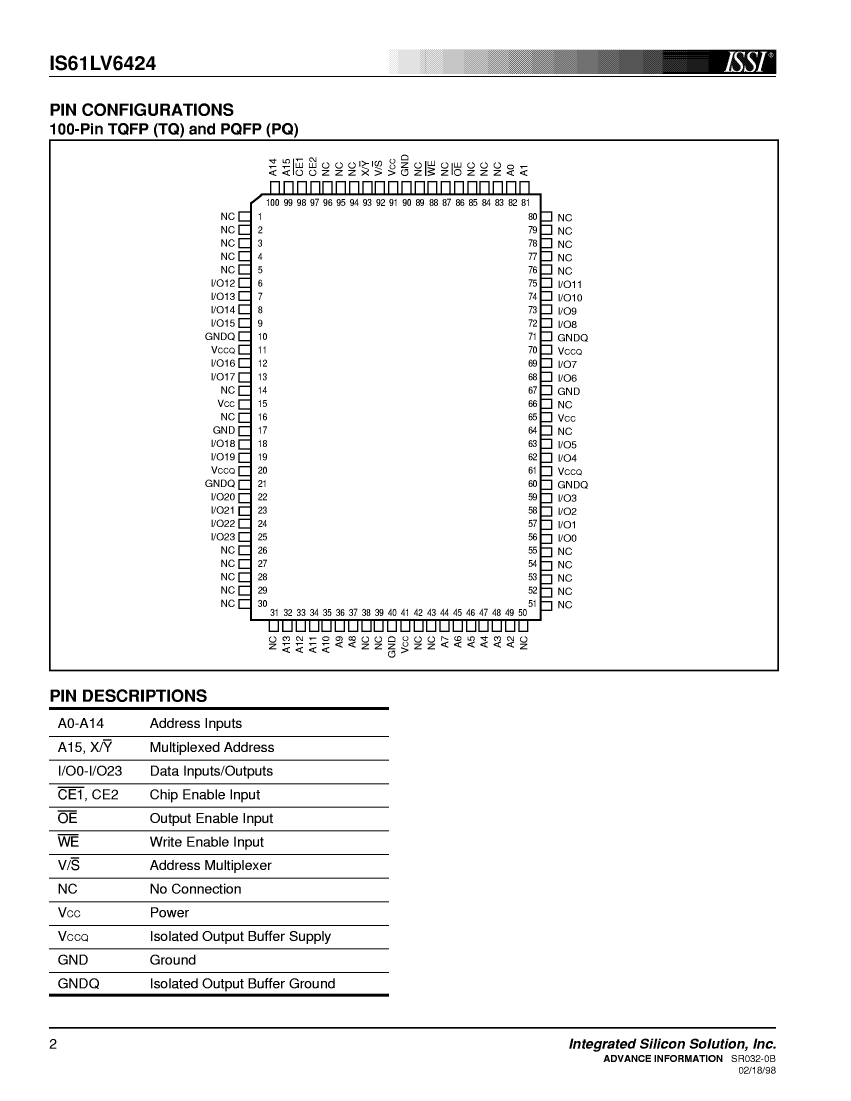

Preview

Download Datasheet

View All

IS61LV6424-15PQI Related Products

	IS61LV6424-15PQI	IS61LV6424-20PQ	IS61LV6424-20PQI	IS61LV6424-20TQI	IS61LV6424-15PQ	IS61LV6424-10PQ	IS61LV6424-20TQ	IS61LV6424-12PQI	IS61LV6424-12PQ
Description	Standard SRAM, 64KX24, 15ns, CMOS, PQFP100, PLASTIC, QFP-100	Standard SRAM, 64KX24, 20ns, CMOS, PQFP100, PLASTIC, QFP-100	Standard SRAM, 64KX24, 20ns, CMOS, PQFP100, PLASTIC, QFP-100	Standard SRAM, 64KX24, 20ns, CMOS, PQFP100, TQFP-100	Standard SRAM, 64KX24, 15ns, CMOS, PQFP100, PLASTIC, QFP-100	Standard SRAM, 64KX24, 10ns, CMOS, PQFP100, PLASTIC, QFP-100	Standard SRAM, 64KX24, 20ns, CMOS, PQFP100, TQFP-100	Standard SRAM, 64KX24, 12ns, CMOS, PQFP100, PLASTIC, QFP-100	Standard SRAM, 64KX24, 12ns, CMOS, PQFP100, PLASTIC, QFP-100
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	PLASTIC, QFP-100	PLASTIC, QFP-100	PLASTIC, QFP-100	TQFP-100	PLASTIC, QFP-100	PLASTIC, QFP-100	TQFP-100	PLASTIC, QFP-100	PLASTIC, QFP-100
Contacts	100	100	100	100	100	100	100	100	100
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	15 ns	20 ns	20 ns	20 ns	15 ns	10 ns	20 ns	12 ns	12 ns
Other features	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE	LOW POWER STANDBY MODE
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bit	1572864 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	24	24	24	24	24	24	24	24	24
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	100	100	100	100	100	100	100	100	100
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	70 °C	70 °C	70 °C	85 °C	70 °C
organize	64KX24	64KX24	64KX24	64KX24	64KX24	64KX24	64KX24	64KX24	64KX24
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	LQFP	QFP	QFP	LQFP	QFP	QFP
Encapsulate equivalent code	QFP100,.7X.9	QFP100,.7X.9	QFP100,.7X.9	QFP100,.63X.87	QFP100,.7X.9	QFP100,.7X.9	QFP100,.63X.87	QFP100,.7X.9	QFP100,.7X.9
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK, LOW PROFILE	FLATPACK	FLATPACK	FLATPACK, LOW PROFILE	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.22 mm	3.22 mm	3.22 mm	1.6 mm	3.22 mm	3.22 mm	1.6 mm	3.22 mm	3.22 mm
Maximum standby current	0.025 A	0.02 A	0.025 A	0.025 A	0.02 A	0.02 A	0.02 A	0.025 A	0.02 A
Minimum standby current	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Maximum slew rate	0.17 mA	0.14 mA	0.15 mA	0.15 mA	0.15 mA	0.19 mA	0.14 mA	0.19 mA	0.17 mA
Maximum supply voltage (Vsup)	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage (Vsup)	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Base Number Matches	1	1	1	1	1	1	1	1	-
