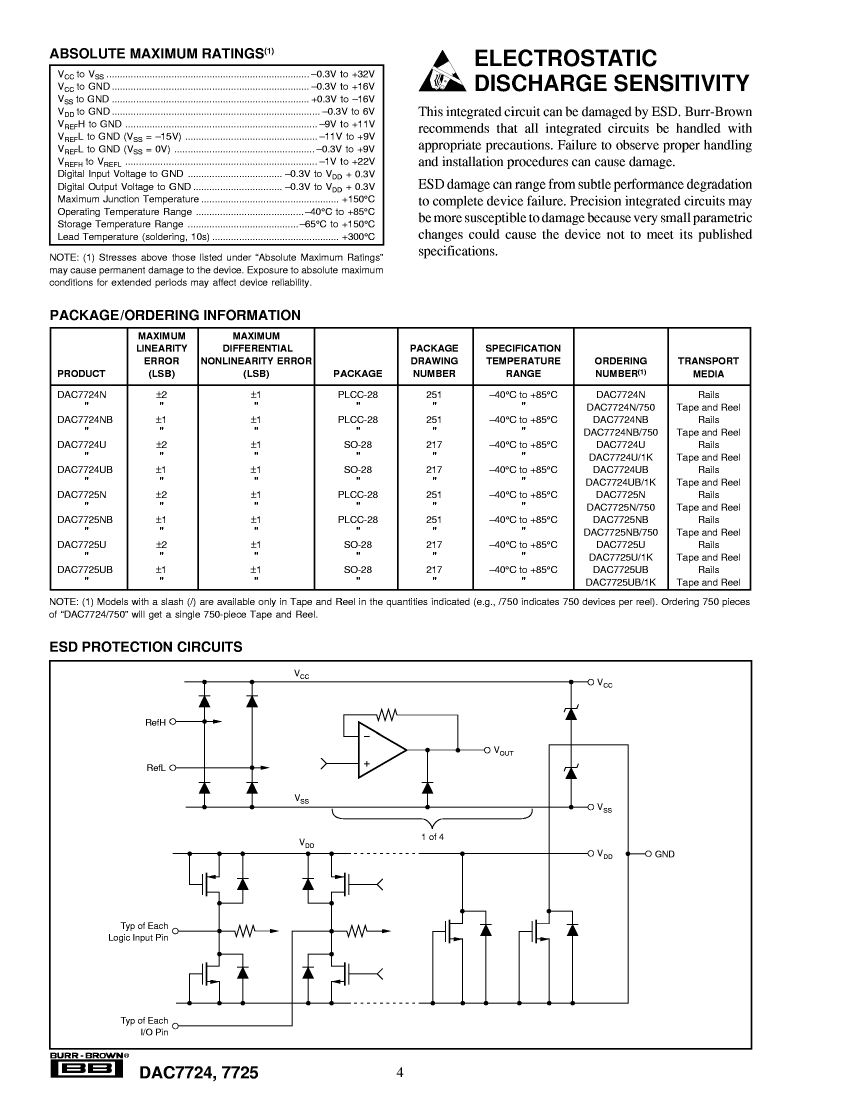

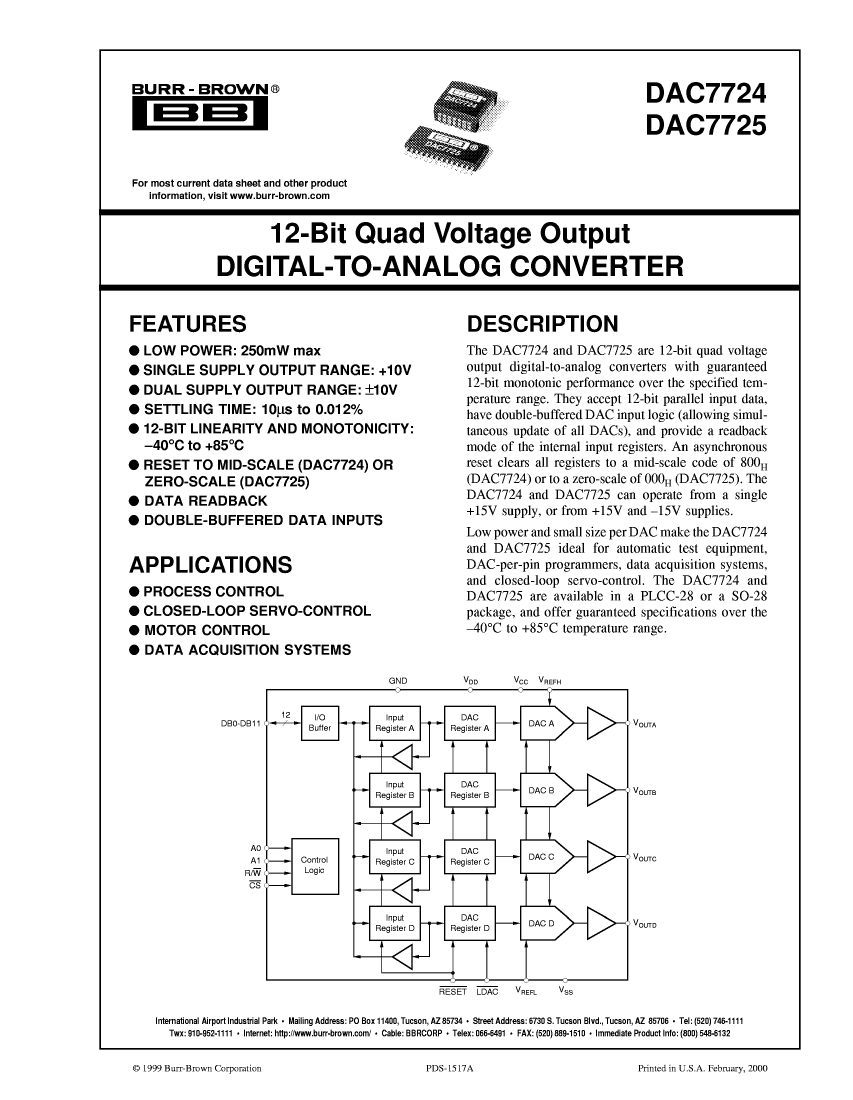

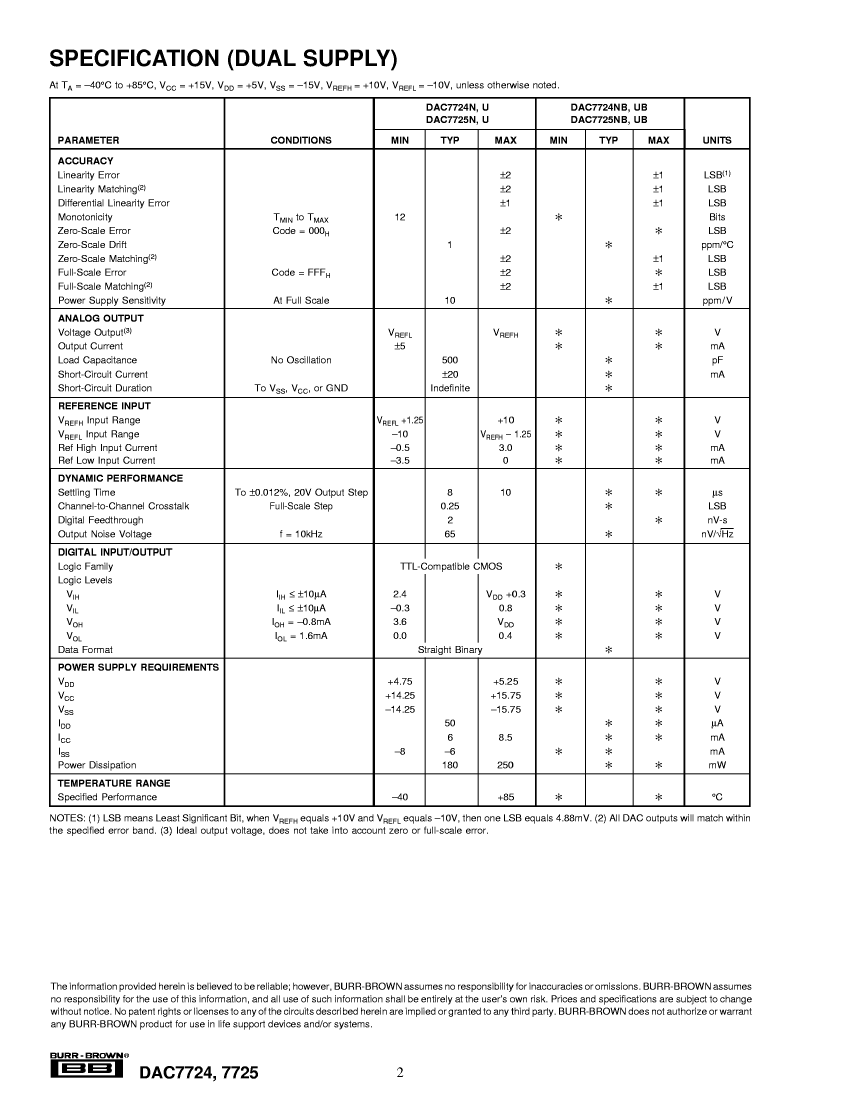

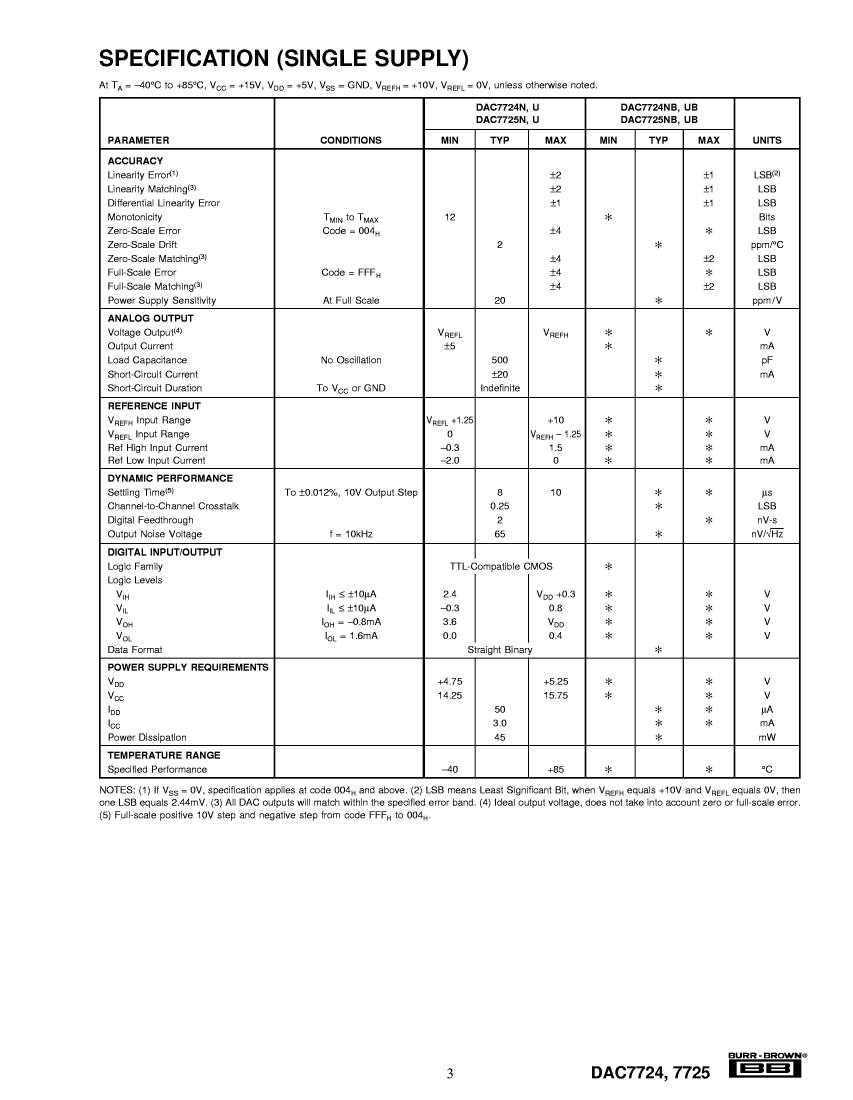

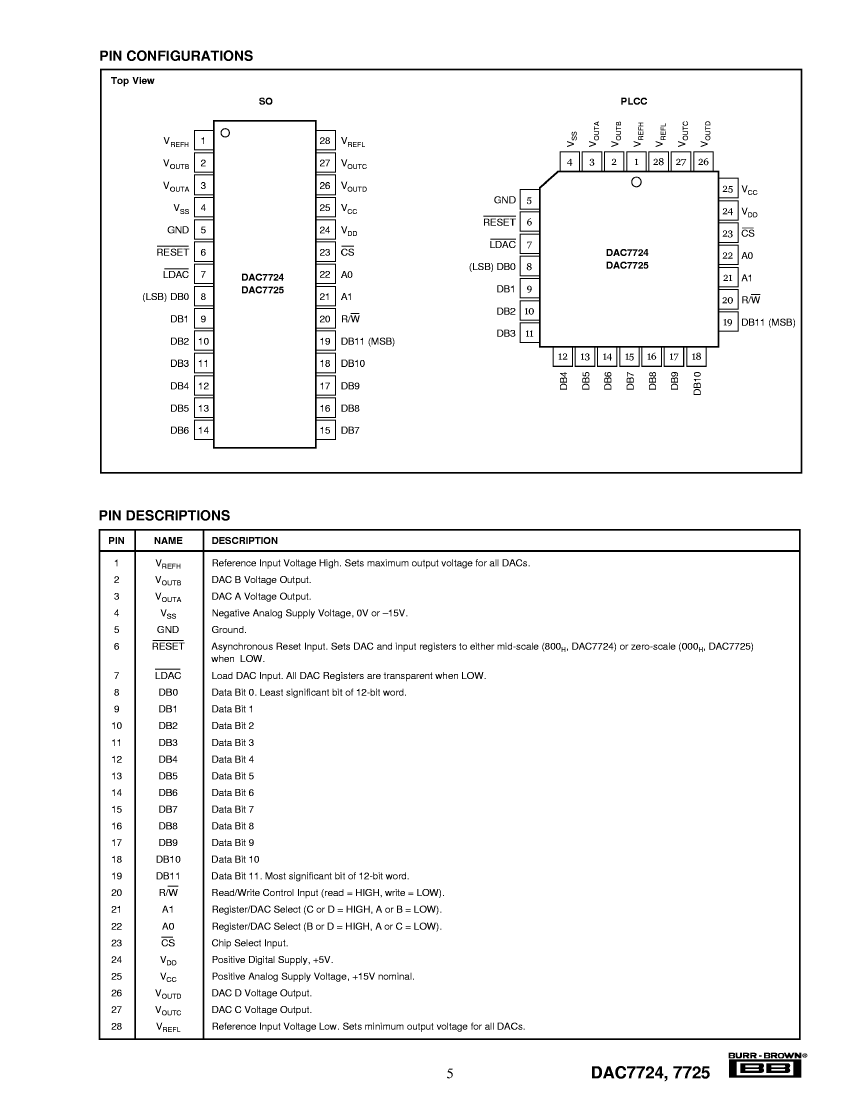

DAC7724NB/750: DescriptionD/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PQCC28, PLASTIC, LCC-28; CategoryAnalog mixed-signal IC converter; File Size883KB，15 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

DAC7724NB/750 Overview

D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PQCC28, PLASTIC, LCC-28

DAC7724NB/750 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	PLASTIC, LCC-28
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
Maximum linear error (EL)	0.0244%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	4
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5,15/+-15 V
Certification status	Not Qualified
Maximum stabilization time	10 µs
Nominal settling time (tstl)	8 µs
Maximum slew rate	8.5 mA
Nominal supply voltage	15 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

DAC7724NB/750 Related Products

	DAC7724NB/750	DAC7725NB/750	DAC7724U/1K	DAC7724N/750	DAC7724UB/1K	DAC7725UB/1K	DAC7725U/1K
Description	D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO28, SO-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO28, SO-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO28, SO-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO28, SO-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
package instruction	PLASTIC, LCC-28	PLASTIC, LCC-28	SO-28	PLASTIC, LCC-28	SO-28	SO-28	SO-28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-PQCC-J28	S-PQCC-J28	R-PDSO-G28	S-PQCC-J28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.0244%	0.0244%	0.0488%	0.0488%	0.0244%	0.0244%	0.0488%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12
Number of functions	4	4	4	4	4	4	4
Number of terminals	28	28	28	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	SOP	QCCJ	SOP	SOP	SOP
Encapsulate equivalent code	LDCC28,.5SQ	LDCC28,.5SQ	SOP28,.4	LDCC28,.5SQ	SOP28,.4	SOP28,.4	SOP28,.4
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	5,15/+-15 V	5,15/+-15 V	5,15/+-15 V	5,15/+-15 V	5,15/+-15 V	5,15/+-15 V	5,15/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	10 µs	10 µs	10 µs	10 µs	10 µs	10 µs	10 µs
Nominal settling time (tstl)	8 µs	8 µs	8 µs	8 µs	8 µs	8 µs	8 µs
Maximum slew rate	8.5 mA	8.5 mA	8.5 mA	8.5 mA	8.5 mA	8.5 mA	8.5 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	GULL WING	J BEND	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1
