RPS 250
Vishay Sfernice
Power Resistor for Mounting onto a Heatsink
Thick Film Technology
FEATURES
•
High power rating: 250 W
•
High overload capability up to 4 times Nominal
Power (see energy curve)
•
Easy mounting
•
Low thermal radiation of the case
RoHS
COMPLIANT
Developed for specific applications such as railroad electrical traction, this series can bear short overloads as high as fifteen times
the nominal power. Designed to be mounted onto a heatsink, these power resistors exhibit remarkable characteristics.

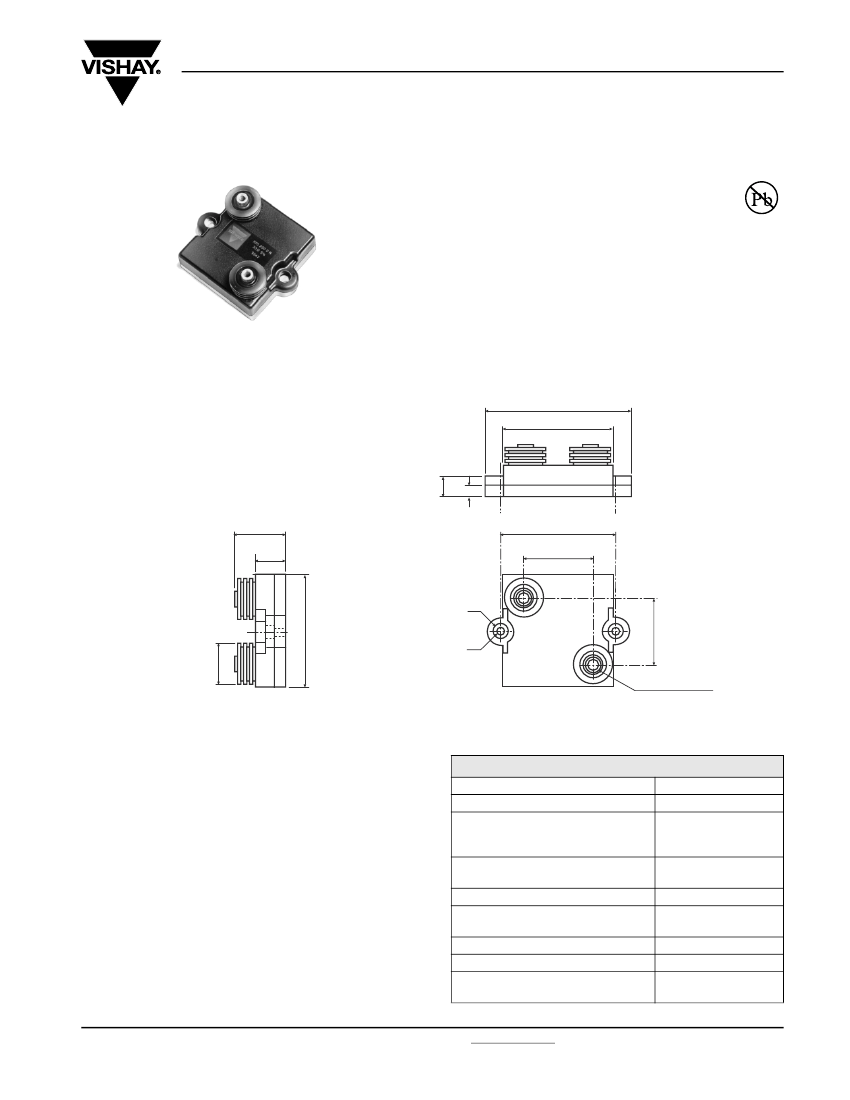

DIMENSIONS
in millimeters
RPS 250D
73
56
10.5
26
± 1
16.5
5.7
57
34
Ø 7.2
35.8
2 M4 USEFUL DEPTH: 8
• Tolerance unless stated: ± 0.2 mm
60
Ø 4.2
MECHANICAL SPECIFICATIONS
Insulated case
Alumina onto
aluminum base
Resistive Element
Cermet
End Connections
Screws M4, (M5 on
request)
Tightening Torque on connections
2 Nm
Weight
170 g ± 10 %
Mechanical Protection
Substrate
Ø 21
ELECTRICAL SPECIFICATIONS
Resistance Range
Tolerances
Power Rating chassis mounted
250 W
1000 W
Temperature Coefficient
Standard
Limiting Element Voltage
Dielectric Strength
MIL STD 202 (301), 1 minute, 10 mA Max
Insulation Resistance
Inductance
Capacitance Resistor/
ground
0.24
Ω
to 1M E24 series
± 1 % to ± 10 %
at 50 °C continuous
at 25 °C for 10 seconds
± 250 ppm/°C < 1
± 150 ppm/°C > 1
5 kVRMS
L connections 7 kVRMS
H connections 12 kVRMS
> 10
6
MΩ
< 50 nH
< 40 pF
< 120 pF
ENVIRONMENTAL SPECIFICATIONS
Thermal Resistance
Temperature Range
Climatic Category
R
TH
(j-c) 0.22 °C/W
- 55 °C + 125 °C
55/125/56
Document Number: 50007
Revision: 08-Jun-06
For technical questions, contact: sfer@vishay.com
www.vishay.com
31
RPS 250
Vishay Sfernice
Power Resistors for Mounting onto a Heatsink
Thick Film Technology
PERFORMANCE
TESTS
Momentary Overload
CONDITIONS
NF EN 140 000 CEI 115_1
4 Pr/10 s
NF EN 140 000 CEI 68214 Test Na
5 cycles
- 55 °C + 125 °C
NF EN 140 000 CEI 115_1
1000 h Pr at 70 °C
MIL STD 202 Method 103 B and D
56 days R.H. 95 %
TYPICAL DRIFTS
< ± (0.25 % + 0.05
Ω)
< ± (0.25 % + 0.05
Ω)
< ± (0.5 % + 0.05
Ω)
< ± (0.5 % + 0.05
Ω)
Rapid Temperature Change
Load Life
Humidity (steady state)
RESISTANCE VALUE IN RELATION TO TOLERANCE AND TCR
Ohmic Value
Standard Tolerance
Standard TCR
Tolerance On Request
<1
Ω
±5%
± 250 ppm/°C
± 1 % - ± 2 % - ± 10 %
>1
Ω
±5%
± 150 ppm/°C
CHOICE OF THE HEATSINK
The user must choose the heatsink according to the working conditions of the component (power, room temperature).
Maximum working temperature must not exceed 125 °C. The dissipated power is simply calculated by the following ratio:
(
1
)
ΔT
-
P
=
--------------------------------------------------------------------
[
R
TH
(
j
–
c
)
+
R
TH
(
c
–
a
)]
P:
T:
R
TH
:
R
TH
:
expressed in W
difference between maximum working temperature and room temperature.
(j-c): thermal resistance value measured between resistive layer and outer side of the resistor. It is the thermal
resistance of the component: (see specifications environmental paragraph).
(c-a): thermal resistance value measured between outer side of the resistor and room temperature.
It is the thermal resistance of the heatsink itself (type, shape) and the quality of the fastening device.
Example:
R
TH
: (c-a) for RPS 250 power dissipation 180 W at + 50 °C room temperature.
ΔT ≤
125 °C - 50 °C
≤
75 °C
ΔT
75
-
R
TH
(j-c) + R
TH
(c-a) =
-------
=
---------
= 0.42 °C/W
P
180
R
TH
(j-c) = 0.22 °C/W
R
TH
(c-a)
≤
0.42 °C/W - 0.22 °C/W
≤
0.20 °C/W
RECOMMENDATIONS FOR MOUNTING ONTO A HEATSINK
Surfaces in contact must be carefully cleaned. The heatsink must have an acceptable flatness: from 0.05 mm to 0.1 mm/100 mm.
Roughness of the heatsink must be around 6.3 µm. In order to improve thermal conductivity, surfaces in contact should be coated
with a silicone grease (type SI 340 from Rhône-Poulenc or Dow 340 from Dow Corning).
The fastening of the resistor to the heatsink is under pressure control of two screws (tightening torque 3 Nm).
In order to improve the dissipation, either forced-air cooling or liquid cooling may be used.
Do not forget to respect an insulation value between two resistors (dielectric strength in dry air 1 kV/mm).
In any case the hot spot temperature, measured locally on the case must not exceed 125 °C.
Test should be performed by the user.
www.vishay.com
32
For technical questions, contact: sfer@vishay.com
Document Number: 50007
Revision: 08-Jun-06
RPS 250
Power Resistor for Mounting onto a Heatsink
Thick Film Technology
OVERLOADS
In any case the applied voltage must be lower than 2.5 Un. U maxi < 2.5 Un < 12 500 V.
Short time overload:
4 Pn/10 seconds
Accidental overload:
The values indicated on the graph below are applicable to resistors in air or mounted onto a heatsink.
Vishay Sfernice
ENERGY CURVE
10 000
1000
ENERGY IN JOULES
100
10
1
0.13
1 µs
10 µs
100 µs
1 ms
10 ms
100 ms
1s
OVERLOAD DURATION IN SECONDS
POWER RATING CHART
The temperature of the heatsink should be maintained in the limit specified.
To improve the thermal conductivity, surfaces in contact should be coated with a silicone grease.
100
80
%
RATED POWER
60
40
20
Packaging Box of 15
units
0
0
20
40
60
80
100
120
140
HEATSINK TEMPERATURE IN DEGREES CELSIUS
MARKING
Series, style, ohmic value (in
Ω),
tolerance in %, manufacturing date, VISHAY trademark
ORDERING INFORMATION
RPS
MODEL
250
STYLE
DL
CONNECTIONS
Optional
H: dielectric strength 12 kV
L: dielectric strength 7 kV
250U
1%
ZA3
CUSTOM DESIGN
Options on request
special TCR,
shape, etc.
B015
PACKAGING
e
LEAD
(Pb)-FREE
RESISTANCE VALUE TOLERANCE
Optional
±1%
±2%
±5%
± 10 %
SAP PART NUMBERING GUIDELINES
RPS
MODEL
0250
STYLE
DL
CONNECTIONS
2500
OHMIC VALUE
F
TOLERANCE
B
PACKAGING
ZA3
DESIGN
Document Number: 50007
Revision: 08-Jun-06
For technical questions, contact: sfer@vishay.com
www.vishay.com
33
