6.3MBZ1800MCA10X16 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 6.3MBZ1800MCA10X16

6.3MBZ1800MCA10X16: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 1800uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size332KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

6.3MBZ1800MCA10X16 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 1800uF, THROUGH HOLE MOUNT, RADIAL LEADED

6.3MBZ1800MCA10X16 Parametric

Parameter Name	Attribute value
Maker	rubycon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
ESR	19 mΩ
leakage current	0.3402 mA
length	16 mm
Manufacturer's serial number	MBZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	1000 mA
series	MBZ(6.3 VOLT)
surface mount	NO
Delta tangent	0.22
Terminal pitch	5 mm
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

FINAL ACCEPTED ORDER DATE [2008/09]

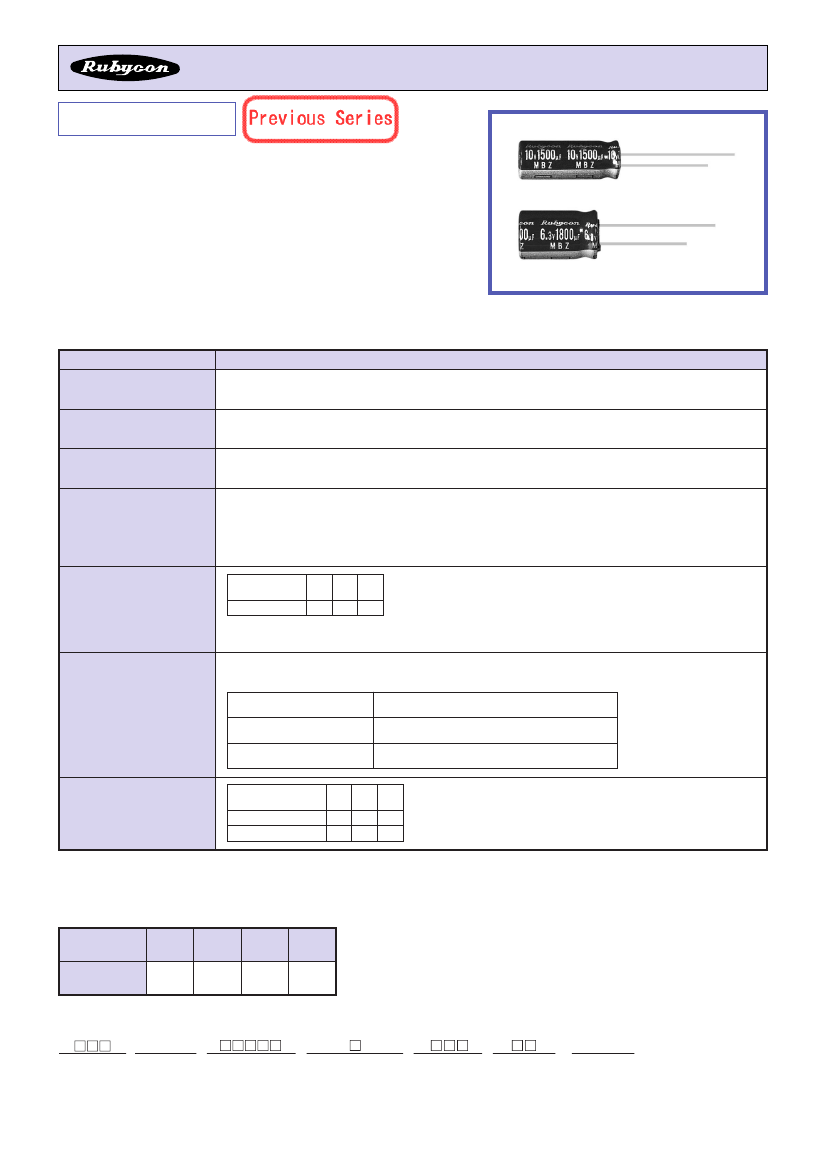

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

MBZ

SERIES

105°C Ultra Low ESR.

♦FEATURES

•

Ultra

Low ESR for VRM.

•

Enabled high ripple current by a reduction of ESR at high frequency range.

♦SPECIFICATIONS

Items

Category Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-40~+105°C

6.3~16V.DC

±20%(20°C,120Hz)

Leakage Current(MAX)

I=0.03CV (After 3 minutes application of rated voltage)

I=Leakage Current(µA)

Rated Voltage

(V)

tanδ

C=Rated Capacitance(µF)

(20°C,120Hz)

V=Rated Voltage(V)

6.3

Dissipation

Factor(MAX)

0.22 0.19 0.16

When rated capacitance is over 1000µF, tanδ shall be added 0.02 to the listed value with

increase of every 1000µF.

After applying rated voltage with rated ripple current for 2000hrs at 105°C, the capacitors shall

meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within

±25%

of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Low Temperature

Stability

Impedance Ratio(MAX)

Rated Voltage

(V)

Z(-25°C)/Z(20°C)

Z(-40°C)/Z(20°C)

6.3

(120Hz)

♦MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

Frequency

(Hz)

Coefficient

120

0.50

0.80

10k

0.90

100k <

1.00

♦PART

NUMBER

MBZ

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

DxL

Case Size

Recommended Resources
