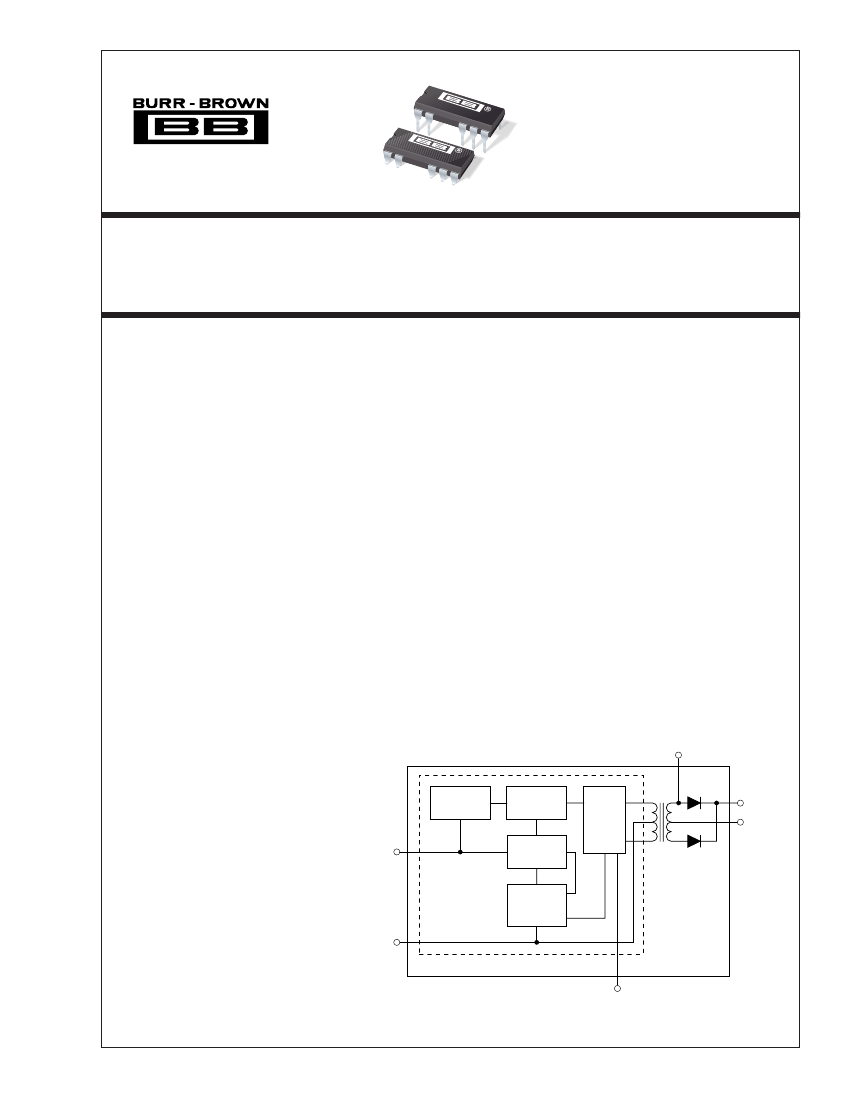

The DCP0105 family is a series of high efficiency, 5V
input isolated DC/DC converters. In addition to 1W
nominal galvanically isolated output power capability,
the range of DC/DCs are also fully synchronizable.
The devices feature thermal shutdown, and overload
protection is implemented via watchdog circuitry.
Advanced power-on reset techniques give superior
reset performance and the devices will start into any
capacitive load up to full power output.
The DCP0105 family is implemented in standard-
molded IC packaging, giving outlines suitable for high
volume assembly.
APPLICATIONS
q
POINT OF USE POWER CONVERSION
q
DIGITAL INTERFACE POWER
q
GROUND LOOP ELIMINATION
q
DATA ACQUISITION
q
INDUSTRIAL CONTROL AND
INSTRUMENTATION
q
TEST EQUIPMENT
800kHz
Oscillator
÷2
Reset
V
OUT
Power
Stage
0V
SYNC
OUT
SYNC
IN
Watch-dog/
start-up
PSU
Thermal
Shutdown
V
S
Power Controller IC
I
BIAS
0V
ternational Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111
Electromagnetic compatibility, Part 4. Testing and measurement techniques, Section 2. Electrostatic
discharge.
Electromagnetic compatibility, Part 4. Testing and measurement techniques, Section 4. Electrical fast
transient bursts.
Electromagnetic compatibility, Part 4. Testing and measurement techniques, Section 8. Power frequency
magnetic field immunity.
List of Tests
The following is a list of tests which were required for compliance with the above specifications:
Conducted Emission Test
150kHz to 30MHz, power and output lines, Class B limits applying. DC/DC loads of
0%, 8%, and 120% applying.
Radiated Emission Test
Radiated Immunity Test, Electric Field
Radiated Immunity Test, Electric Field
Electrostatic Discharge Test
Electrical Fast Transient Tests
Conducted RF Immunity Tests
Radiated Immunity Test, Magnetic Field
30MHz to 1000MHz, Class B limits applying. DC/DC loads of 0%, 8%, and 120%
applying.
80MHz to 1000MHz, 10V/m, 1kHz 80% AM.
900MHz, 10V/m, 200Hz 100% PM.
4kV, HCP/VCP indirect discharge only.
2kV power lines, 2kV signal lines.
150kHz to 80MHz, power and output lines, 10Vrms, 1kHz 80% AM.
50Hz, 30A/m
®
3
DCP0105
PIN CONFIGURATION (Single)
Top View
DIP
PIN CONFIGURATION (Dual)
Top View
DIP
V
S
0V
1
2
14 SYNC
IN
V
S
0V
1
2
14 SYNC
IN
DCP0105
0V
+V
OUT
NC
5
6
7
8
SYNC
OUT
0V
+V
OUT
–V
OUT
5
6
7
DCP0105
8
SYNC
OUT
PIN DEFINITIONS (Single)
PIN #
1
2
5
6
7
8
14
PIN NAME
V
S
0V
0V
+V
OUT
NC
SYNC
OUT
SYNC
IN
DESCRIPTION
Voltage Input.
Input Side Common.
Output Side Common.
+Voltage Out.
Not Connected.
Unregulated 400kHz Output from Transformer.
Synchronization Pin.
PIN DEFINITIONS (Dual)
PIN #
1
2
5
6
7
8
14
PIN NAME
V
S
0V
0V
+V
OUT
–V
OUT
SYNC
OUT
SYNC
IN
DESCRIPTION
Voltage Input.
Input Side Common.
Output Side Common.
+Voltage Out.
–Voltage Out.
Unregulated 400kHz Output from Transformer.
Synchronization Pin.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
