397530011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 397530011

397530011: DescriptionTerminal and Terminal Block,; CategoryThe connector terminals; File Size145KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

397530011 Overview

Terminal and Terminal Block,

397530011 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

PART NUMBER DATA

CIRCUITS

.197

PART

NUMBER

397530002

397530003

397530004

397530005

397530006

397530007

397530008

397530009

397530010

397530011

397530012

.47

M450B

WIRE ENTRY

ENGINEERING

NUMBER

M450B-00-1-02-3

M450B-00-1-03-3

M450B-00-1-04-3

M450B-00-1-05-3

M450B-00-1-06-3

M450B-00-1-07-3

M450B-00-1-08-3

M450B-00-1-09-3

M450B-00-1-10-3

M450B-00-1-11-3

M450B-00-1-12-3

M450B-00-1-13-3

M450B-00-1-14-3

M450B-00-1-15-3

M450B-00-1-16-3

M450B-00-1-17-3

M450B-00-1-18-3

M450B-00-1-19-3

M450B-00-1-20-3

M450B-00-1-21-3

M450B-00-1-22-3

M450B-00-1-23-3

M450B-00-1-24-3

COLOR

GREEN

A IN mm

.39

.59

.79

.98

1.18

1.38

1.57

1.77

1.97

2.17

2.36

2.56

2.76

2.95

3.15

3.35

3.54

3.74

3.94

4.13

4.33

4.53

4.72

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

B IN mm

.197

.394

.591

.787

.984

1.181

1.378

1.575

1.772

1.969

2.165

2.362

2.559

2.756

2.953

3.150

3.346

3.543

3.740

3.937

4.134

4.331

4.528

5.00

10.00

15.00

20.00

25.00

30.00

35.00

40.00

45.00

50.00

55.00

60.00

65.00

70.00

75.00

80.00

85.00

90.00

95.00

100.00

105.00

110.00

115.00

REF. THE LAST 2 DIGITS OF THE PART NUMBER EQUAL CIRCUIT COUNT

.53

SPECIFICATIONS

1. MATERIAL:

A. SCREW: M2.5 STEEL, ZINC PLATED

B. BODY: PA66, UL94V-0

C. CONTACT: PHOS-BRONZE

D. CAGE: BRASS, NI PLATED

2. WIRE SIZE: 24 TO 14AWG

3.RATING: 300V, 10A

4.MAX TORQUE: 3 IN. LBS.

5.WIRE STRIP LENGTH: .20 IN. (5.0mm)

7.DIMS SHOWN ARE FOR REFERENCE ONLY

REV

CONTACT FACTORY FOR OPTIONAL COLORS

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DESCRIPTION

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

APPROVED BY

DATE

molex

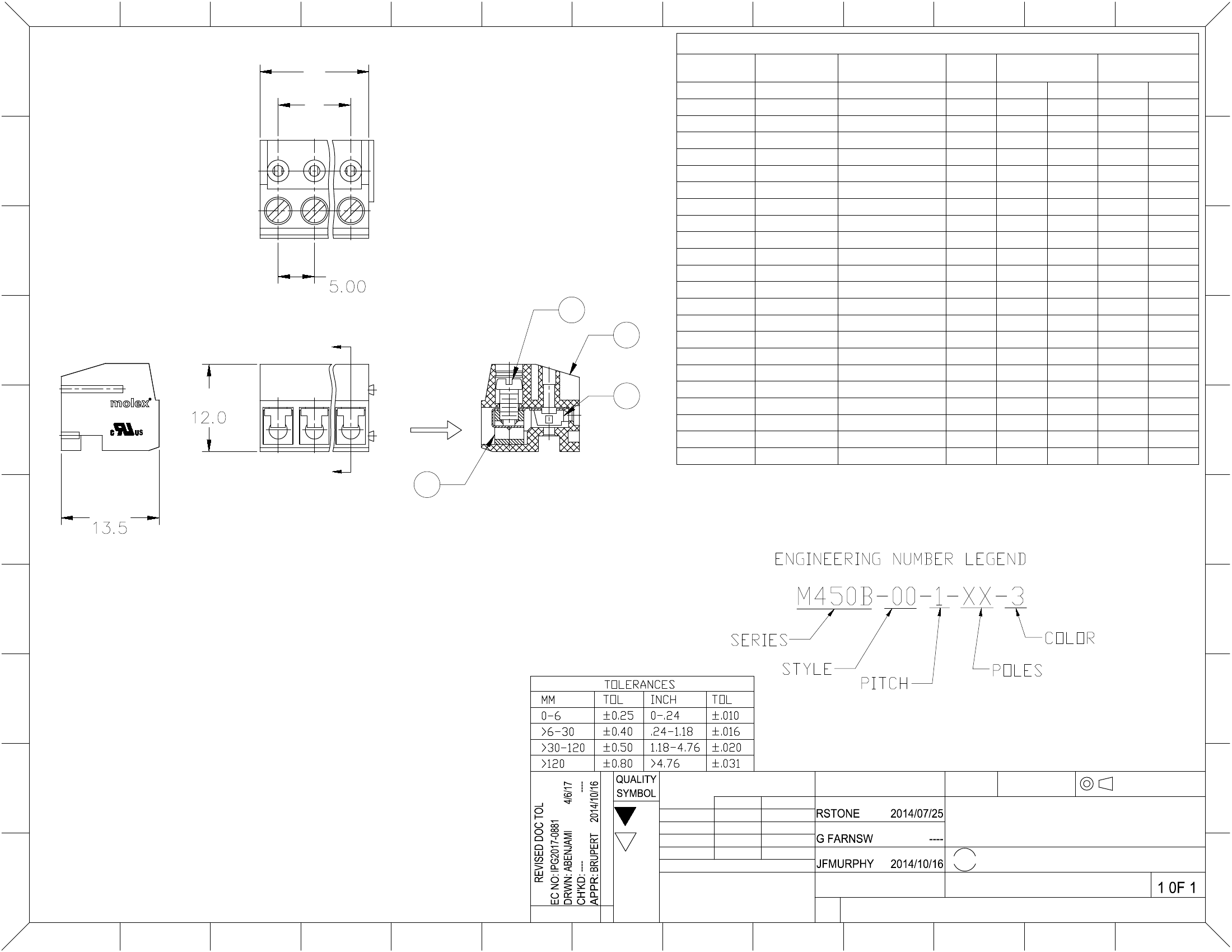

TERMINAL PLUG-5.0MM

HORIZONTAL

----

MOLEX INCORPORATED

SHEET NO.

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-39753-001

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
