88S105-141L5

Description
RF 1.6/5.6 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size62KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

88S105-141L5 Overview

RF 1.6/5.6 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

88S105-141L5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresCAPTIVE CENTER CONTACT
Body/casing typePLUG
Characteristic impedance75 Ω
Connector typeRF 1.6/5.6 DIN CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialBRASS
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialLIQUID CRYSTAL POLYMER/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency12 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.22
Base Number Matches1

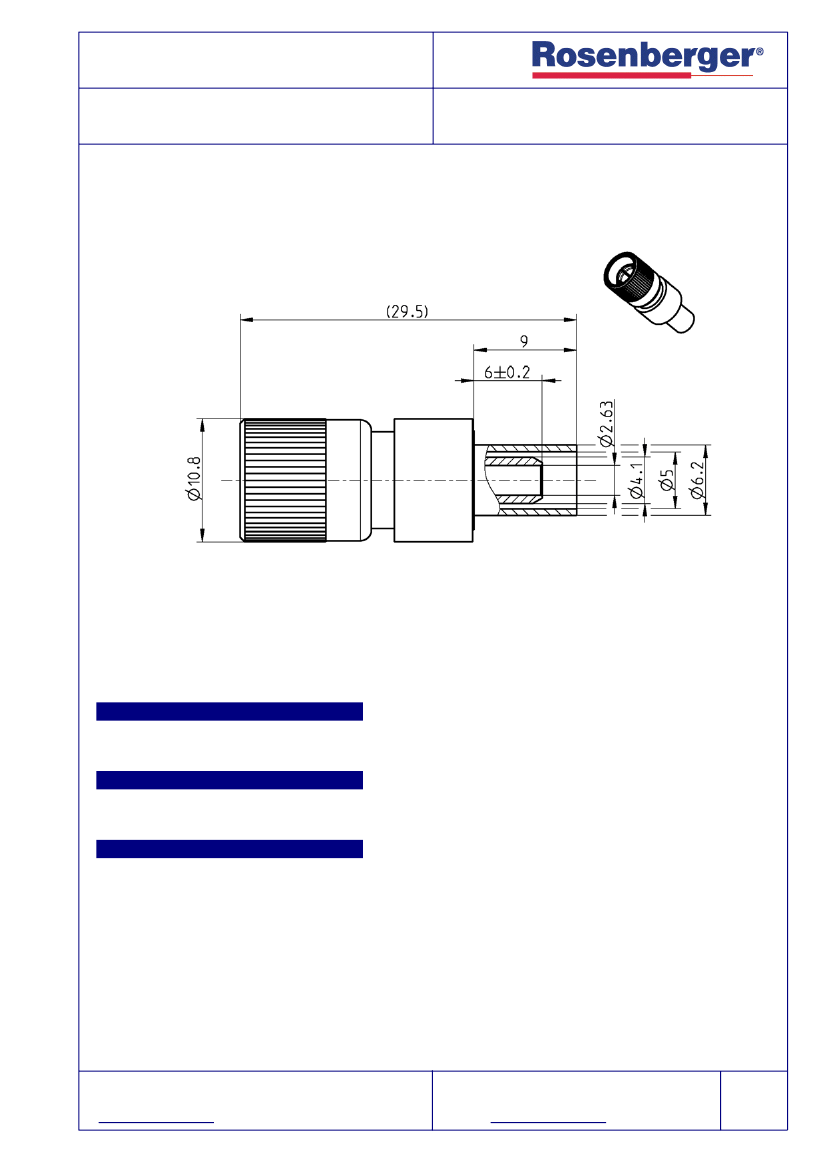

TECHNICAL DATA SHEET
1.6/5.6
III. Generation
STRAIGHT PLUG
88S105-141L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
CECC 22 240
Documents
Assembly instruction
88 O2
Material and plating
Connector parts
Center contact
Outer contact
Body
Coupling nut
Dielectric
Dielectric
Crimping ferrule
Material
Brass
CuBe
Brass
Brass
PTFE
LCP
Copper
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
