M85049/74-24-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/74-24-1

Preview

M85049/74-24-1: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size141KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

M85049/74-24-1 Overview

Connector Accessory

M85049/74-24-1 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
Factory Lead Time	17 weeks 1 day
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/74
Base Number Matches	1

Preview

Download Datasheet

View All

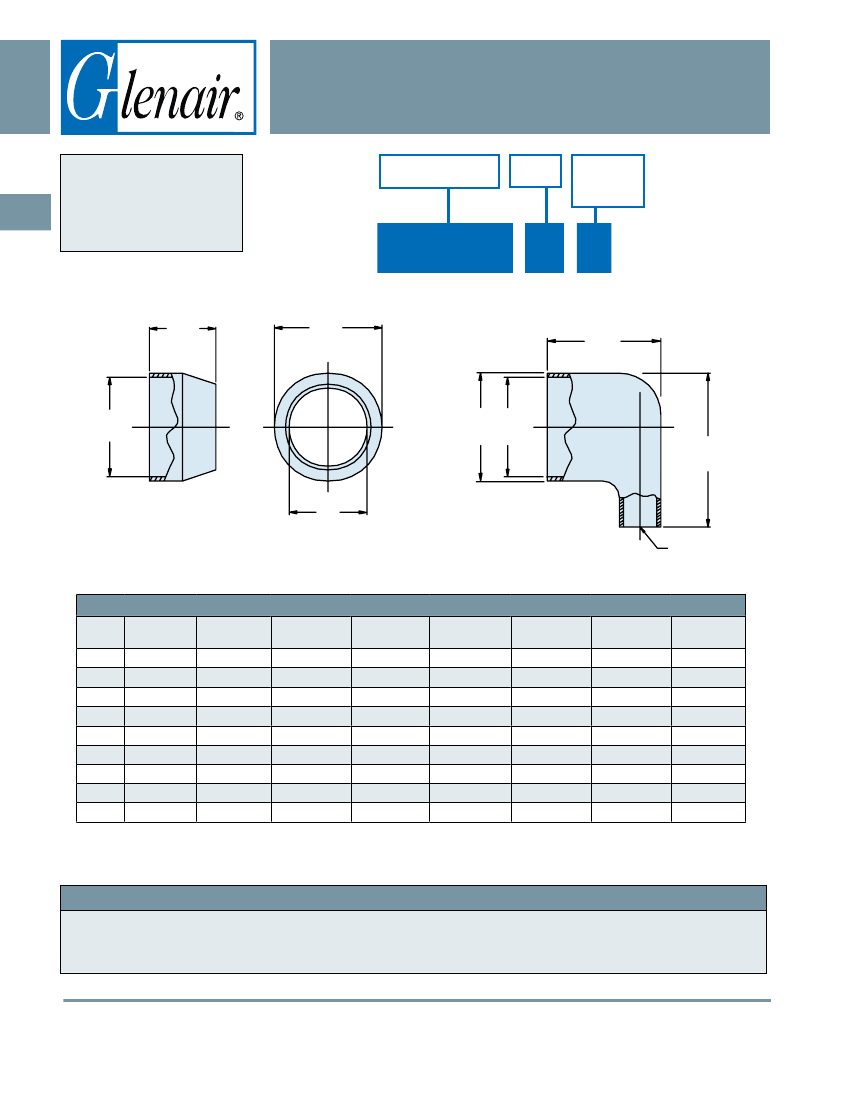

Potting Boot Rings

AS85049/74

Potting Boot

Shell

Size

Geometry

1

- Straight

2

= 90°

30

For Use with

AS85049/61

Potting Boot Ring

(Page 30-3)

Basic Part Number

M85049/74

-

10

-

1

G

A

D

B

G

B

E

C

F Min Cross

Section

TABLE I: Shell Size and Dimensions

Shell

Size

8

10

12

14

16

18

20

22

24

A

Min

450 (11.4)

.450 (11.4)

.550 (14.0)

A

Max

.500 (12.7)

.594 (15.1)

B Dia

± .005 (.1)

.511 (13.0)

.637 (16.2)

.761 (19.3)

.887 (22.5)

1.013 (25.7)

1.137 (28.9)

1.263 (32.1)

1.387 (35.2)

1.513 (38.4)

G

Max

.608 (15.4)

.734 (18.6)

.858 (21.8)

.984 (25.0)

1.110 (28.2)

1.234 (31.3)

1.360 (34.5)

1.484 (37.7)

1.610 (40.9)

C

Min ID

.317 (8.1)

.434 (11.0)

.548 (13.9)

.673 (17.1)

.798 (20.3)

.899 (22.8)

1.024 (26.0)

1.149 (29.2)

1.274 (32.4)

D

Max

.766 (19.5)

.922 (23.4)

1.031 (26.2)

1.016 (25.8)

1.078 (27.4)

1.094 (27.8)

1.281 (32.5)

E

Max

1.000 (25.4)

1.125 (28.6)

1.297 (32.9)

1.375 (34.9)

1.469 (37.3)

1.625 (41.3)

1.703 (43.3)

F

Min

.110 (2.8)

.200 (5.1)

.290 (7.4)

.400 (10.2)

.490 (12.4)

.590 (15.0)

.730 (18.5)

.860 (21.8)

2.047 (52.0) 1.070 (27.2)

APPLICATION NOTES

1.

2.

For complete dimensions see the applicable Military

Specification.

Finish: 500-Hour Cadmium Olive Drab over Electroless Nickel.

3.

4.

Material: Translucent nylon, minimum wall thickness .020 (.51).

Metric dimensions (mm) are in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

30-4
