431T-430823A: DescriptionRF Relay,; CategoryMechanical and electronic products relay; File Size420KB，1 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric View All

431T-430823A Overview

RF Relay,

431T-430823A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Relay type	RF RELAY
Base Number Matches	1

Preview

Download Datasheet

View All

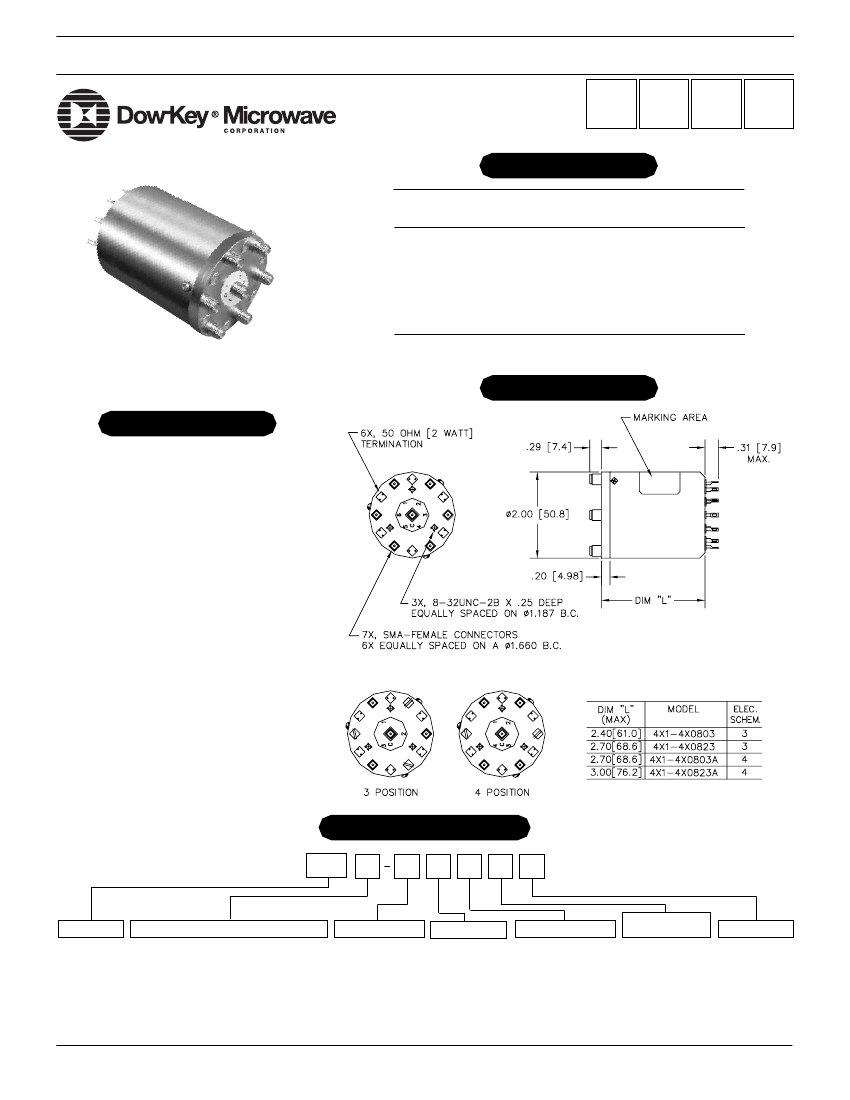

431-461 Series Latching Terminated

SMA

C M A

Commercial

Military

Avionics

Space

RF Characteristics

Frequency

GHz

DC-4

4-8

8-12.4

12.4-18

*18-22

*22-26

VSWR

(max)

1.20

1.30

1.40

1.50

1.60

Isolation

dB (min)

Ins. Loss

dB (max)

0.20

0.30

0.40

0.50

0.60

461 Latching Terminated

Series, SMA

Specifications

Operating Voltage:

(across temperature range)

12 Vdc (11-14 Vdc)

28 Vdc (24-32 Vdc)

Coil Current (max @ nom.Vdc & 20°C):

12 Vdc 375 mA

28 Vdc 200 mA

Switching Time:

15 mS maximum

Operating Temperature:

-25ºC to +65ºC (Standard)

-55ºC to +85ºC (Extended “T” Option)

Mechanical Life, Cycles:

1,000,000 minimum

Vibration, Operating:

10 G RMS, 20-2000 Hz

Mechanical Shock, Non-Operating:

50 G, 1/2 Sine, 11 mS

Nominal Weight:

11 oz., (312g.)

Note: RF Power for the terminated port is limited by the termination.

* “K” option only

Mechanical

461-430823 Shown

Part Number Selection

461

For Electrical Schematic

see page # 3-17

Family

Special Options

Actuator

Coil Voltage

Connectors

Indicators/

Terminations

Circuit Options

431

= SP3T

441

= SP4T

461

= SP6T

= Mounting Bracket

= 9 or 15 Pin 'D'

Connector

= Flange Mount

= Power Plug

= (-) Com

= Epoxy Seal

= -55º to +85º C

= Latching Self

Cutoff Set/Reset

= 12Vdc

= 28Vdc

= 24Vdc

= 15Vdc

= SMA Female

= No Indicators

2W Terminations

= SPST Indicators

2W Terminations

= TTL High

= CANBus

= Ethernet

ISO 9001 Certified

3-11

www.dowkey.com
