349BBXP-85-135VAC: DescriptionPower/Signal Relay, 4PDT, Momentary, 5000mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size178KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

349BBXP-85-135VAC Overview

Power/Signal Relay, 4PDT, Momentary, 5000mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount

349BBXP-85-135VAC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
body width	39.4 mm
body height	94.5 mm
Body length or diameter	62.3 mm
Coil current (AC) maximum value	0.037 A
Coil power	5000 mW
Maximum coil voltage (AC)	135 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	349
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	62.3mm x 39.4mm x 94.5mm
Relay action	MOMENTARY
Relay function	4PDT
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

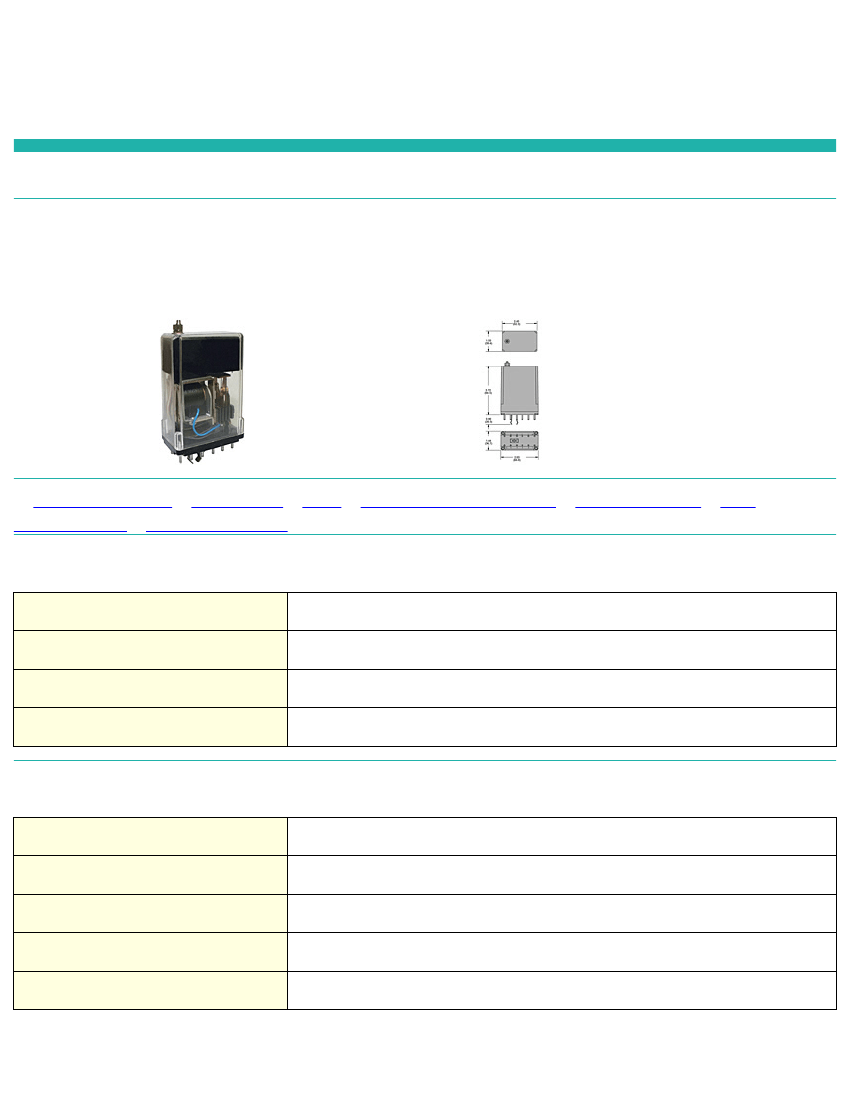

Item # 349BBXP-85-135VAC, 349 Series - Over/Under Voltage Sensor Relays

Under / Over voltage sensing relay incorporating 219 series internal components coupled with an electronic module. Pull-in voltage is adjustable from 85 to 135VAC for

frequencies ranging from 50 to 400 hertz. Hysteresis is typically set for a 4 volt differential but can be user adjustable from 3 to 14 volts when external connections are

available.

For Additional Configuration please contact the manufacturer.

SPECIFICATIONS

CONTACTS

COIL

DIELECTRIC STRENGTH

TEMPERATURE

LIFE

EXPECTANCY

MISCELLANEOUS

SPECIFICATIONS

Series

349

Contact Arrangement

BBX (2 Pole NO &DPDT)

Standard Features

Plug-in with polycarbonate cover

Coil Voltage

85-135 VAC

CONTACTS

Contact Configuration

Up to 4 pole

Contact Material

Silver Alloy Gold Diffused

Contact Rating

10 A

Contact Rating 120 / 240VAC Resistive

10 A / 10 A

Contact Rating 28VDC Resistive

10 A

7/31/2013 | Page 1 of 3
