DSEI2X31-08B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DSEI2X31-08B

Preview

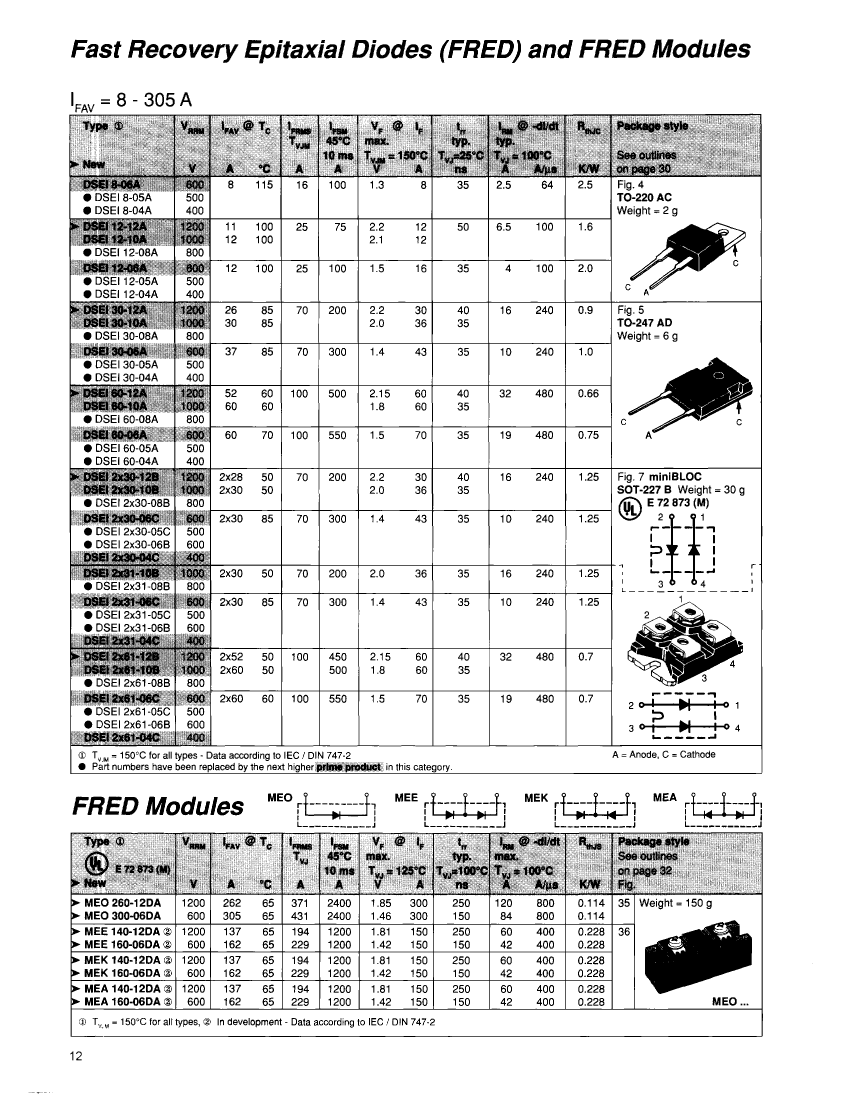

DSEI2X31-08B: DescriptionRectifier Diode, 1 Phase, 2 Element, 30A, 800V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size252KB，1 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

DSEI2X31-08B Overview

Rectifier Diode, 1 Phase, 2 Element, 30A, 800V V(RRM), Silicon,

DSEI2X31-08B Parametric

Parameter Name	Attribute value
Maker	IXYS
package instruction	R-PUFM-D4
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
JESD-30 code	R-PUFM-D4
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum power dissipation	100 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	250 µA
Maximum reverse recovery time	0.035 µs
Reverse test voltage	640 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

DSEI2X31-08B Related Products

	DSEI2X31-08B	DSEI2X31-06B	DSEI2X31-05C	DSEI2X61-06B	DSEI2X61-08B	DSEI2X30-05C	DSEI2X30-06B	DSEI2X30-08B	DSEI2X61-05C
Description	Rectifier Diode, 1 Phase, 2 Element, 30A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 60A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 60A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 60A, 500V V(RRM), Silicon,
package instruction	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	1.4 V	1.4 V	1.5 V	1.8 V	1.4 V	1.4 V	2 V	1.5 V
JESD-30 code	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4
Maximum non-repetitive peak forward current	200 A	300 A	300 A	550 A	500 A	300 A	300 A	200 A	550 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	30 A	30 A	30 A	60 A	60 A	30 A	30 A	30 A	60 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum power dissipation	100 W	100 W	100 W	180 W	180 W	100 W	100 W	100 W	180 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	600 V	500 V	600 V	800 V	500 V	600 V	800 V	500 V
Maximum reverse current	250 µA	250 µA	250 µA	500 µA	500 µA	250 µA	250 µA	250 µA	500 µA
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs
Reverse test voltage	640 V	480 V	400 V	480 V	640 V	400 V	480 V	640 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1	1	-	-	-
