827B-29.999999MHZ-BAW00010 Overview

Series - Fundamental Quartz Crystal, 29.999999MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

827B-29.999999MHZ-BAW00010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant

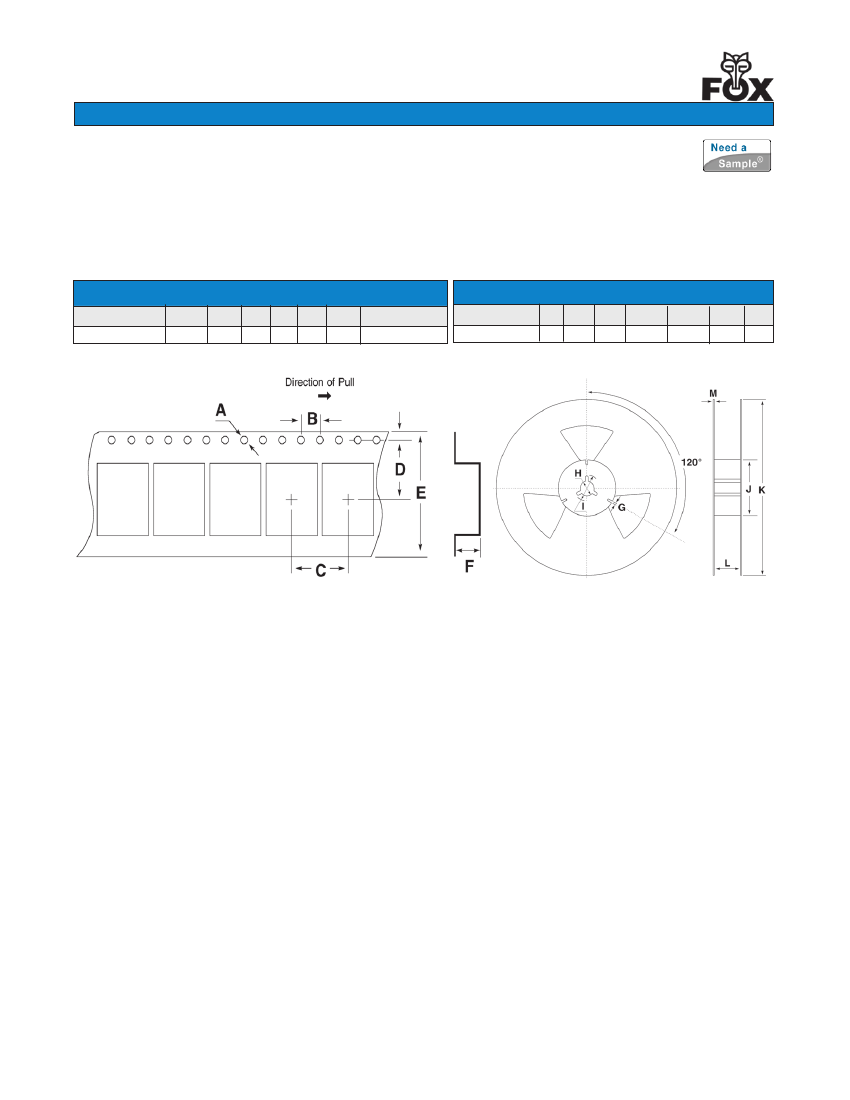

Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	50 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	29.999999 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L2.6XB2.1XH0.6 (mm)/L0.102XB0.083XH0.024 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

Ceramic SMD Automotive Grade Crystal

Model: FXA2520B Series

Page 1 of 2

RoHS Compliant

Rev. 6/2/2009

http://www.foxonline.com/need_a_sample.htm

FEATURES

•

Meets AEC-Q200 Requirements

Fundamental to 50 MHz

Temperatures to -40ºC ~ +125ºC

Seam Seal

Tape and Reel (3,000 pcs. STD)

• PART NUMBER

Learn More - Internet Required

Part Number

827B-Frequency-xxxxx

Model Number

FXA2520B

Frequency Range (MHz)

16.000 ~ 50.000

2.6 Max

Top

View

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

-40 ~ +125ºC

-40 ~ +85ºC

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (C

)

Load Capacitance (C

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

Seal Method

Marking

2.1 Max

MAX

(unless otherwise noted)

16.000 ~ 50.000 MHz

±50 PPM

±100 PPM

±50 PPM

(Customer Specified)

-40ºC ~ +125ºC

-55ºC ~ +150ºC

5pF

7pF~Series

(Customer Specified)

100µW

±5 PPM

260ºC / 10 Seconds

Seam Seal

Bottom

View

1.2

0.6 Max

0.825

0.675

0.9

#2 and #4 connected to lid

Other tolerances and stabilities available. Contact Fox Technical Support for specific requirements.

Recommended

Solder Pad Layout

0.9

0.80

0.45

Frequency Range

(MHz)

16.000 ~ 29.999999

30.000 ~ 50.000000

Operating Mode

Fundamental

Max ESR

Ω

100

Note: Dimensional drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, etc. may vary.

The above specifications, having been carefully prepared and checked, are believed to be accurate at the time

of publication; however, no responsibility is assumed by Fox Electronics for inaccuracies.

0.75

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
