1N1790A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N1790A

1N1790A: DescriptionZener Diode, 62V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2; CategoryDiscrete semiconductor diode; File Size330KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

1N1790A Overview

Zener Diode, 62V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2

1N1790A Parametric

Parameter Name	Attribute value
Parts packaging code	DO-13
package instruction	O-MALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-13
JESD-30 code	O-MALF-W2
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	62 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	5 mA
Base Number Matches	1

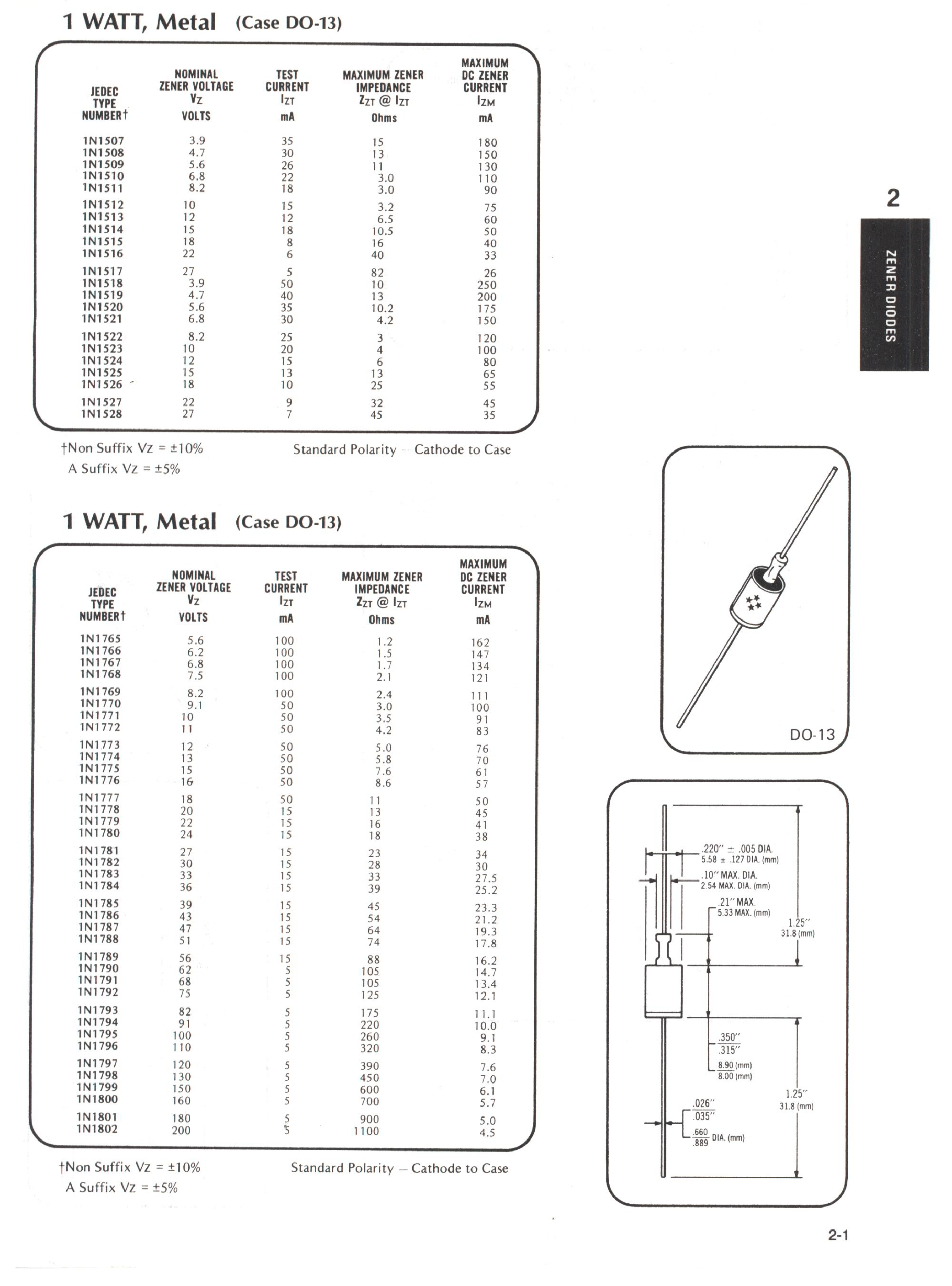

Preview

Download Datasheet

View All

1N1790A Related Products

	1N1790A	1N1510A	1N1515A	1N1777A	1N1779A	1N1782A	1N1775A
Description	Zener Diode, 62V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2	Zener Diode, 6.8V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2	Zener Diode, 18V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2	Zener Diode, 18V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2	Zener Diode, 22V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2	Zener Diode, 30V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2	Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-13, METAL PACKAGE-2
Parts packaging code	DO-13	DO-13	DO-13	DO-13	DO-13	DO-13	DO-13
package instruction	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2
Contacts	2	2	2	2	2	2	2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-13	DO-13	DO-13	DO-13	DO-13	DO-13	DO-13
JESD-30 code	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2	O-MALF-W2
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	62 V	6.8 V	18 V	18 V	22 V	30 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%
Working test current	5 mA	22 mA	8 mA	50 mA	15 mA	15 mA	50 mA
Base Number Matches	1	1	1	1	1	1	1
