BC057-04-C-A-0250-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BC057-04-C-A-0250-L-D

BC057-04-C-A-0250-L-D: DescriptionBoard Connector,; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BC057-04-C-A-0250-L-D Overview

Board Connector,

BC057-04-C-A-0250-L-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact material	PHOSPHOR BRONZE
JESD-609 code	e3
Manufacturer's serial number	BC057
Base Number Matches	1

Preview

Download Datasheet

View All

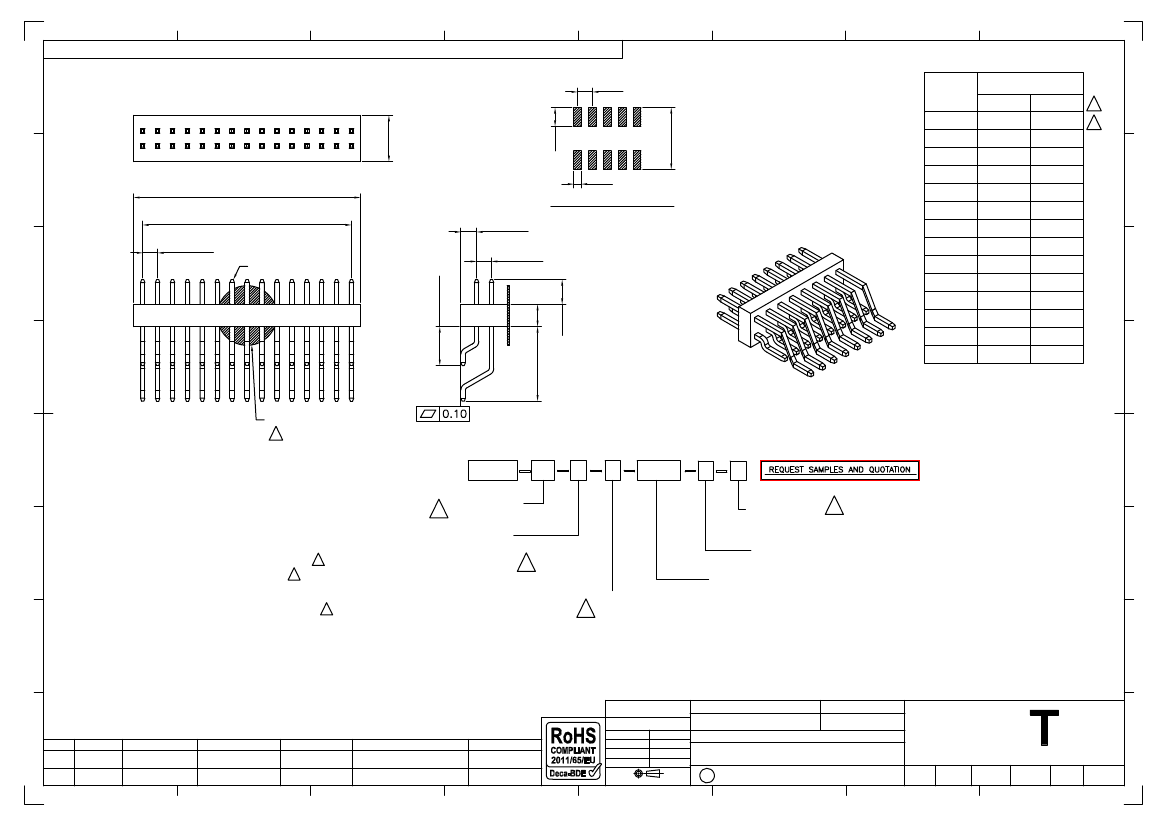

Global Connector Technology Ltd. - BC057: 1.00mm PITCH PIN HEADER, DUAL ROW, SURFACE MOUNT, HORIZONTAL

1.00

Typ (Non-Accum.)

CONTACTS

DIMENSIONS

1.00

2.00

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

12.00

13.00

14.00

2.20

3.20

4.20

5.20

6.20

7.20

8.20

9.20

10.20

11.20

12.20

13.20

14.20

15.20

3.10

1.25

4.15

B±0.30

A±0.25

1.00±0.08

(Typ.)

0.50

(Typ.)

RECOMMENDED PCB LAYOUT

(TOLERANCE: ±0.05)

1.05±0.25

1.00±0.10

2.60±0.25

0.30 SQ PIN (Typ.)

1.50

C±0.2

5.00±0.25

Film

Ø = 3.00mm (6 Contacts)

Ø = 4.00mm (8-30 Contacts)

Thickness = 0.15mm (All)

Ordering Grid

BC057

SPECIFICATIONS

规格

No. of Contacts

04 to 30

XXXX

Packing Options

C = Tape & Reel with Film

(06-30 contacts)

D = Tube

(04 contacts)

Insulator Material

L = LCP

(Standard)

Dimension C (1/100mm)

(Post Height)

0150 = 1.50mm

(Standard)

or specify Dimension C

eg 0250 = 2.50mm

CURRENT RATING

电流额定值：

1 Amp.

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

20 mΩ Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94V-0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BC084

BC085

DETAIL

REV

DATE

ASE

DRAWING

RELEASE

09/09/09

Contact Plating

A = Gold Flash All Over

(Standard)

C = Tin All Over

Insulator Width

A = 1.50mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

AJO

AMENDMENT TO

PACKING OPTIONS

02/07/13

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC057

Description:-

09 SEP 09

AMENDMENT TO

DIMENSION B DATA SPECIFICATION DATA

24/09/09

30/09/09

AMENDMENT TO

AMENDMENT TO HEIGHT

PLATING OPTIONS OPTIONS & NO. OF CONTACTS

29/07/10

21/12/09

1.00mm PITCH PIN HEADER, DUAL ROW,

SURFACE MOUNT, HORIZONTAL

Scale

NTS

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

ASE

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

BC057-04-C-A-0250-L-D Related Products

	BC057-04-C-A-0250-L-D	BC057-04-C-A-0150-L-D	BC057-04-A-A-0250-L-D	BC057-04-A-A-0150-L-D
Description	Board Connector,	Board Connector,	Board Connector,	Board Connector,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Global Connector Technology	Global Connector Technology	Global Connector Technology	Global Connector Technology
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	GOLD FLASH	GOLD FLASH
Contact completed and terminated	TIN	Tin (Sn) - with Nickel (Ni) barrier	GOLD FLASH	Gold (Au) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
JESD-609 code	e3	e3	e4	e4
Manufacturer's serial number	BC057	BC057	BC057	BC057
Base Number Matches	1	1	1	1
