82430FX PCIset DATASHEET 82437FX
SYSTEM CONTROLLER (TSC) AND
82438FX DATA PATH UNIT (TDP)
Y
Y
Supports all 3V Pentium
Processors
Y
Integrated Second Level Cache
Controller
Direct Mapped Organization
Write-Back Cache Policy
Cacheless 256-Kbyte and 512-Kbyte
Standard Burst and Pipelined Burst
SRAMs
Cache Hit Read Write Cycle Timings
at 3-1-1-1 with Burst or Pipelined
Burst SRAMs
Back-to-Back Read Cycles at 3-1-1-1-
1-1-1-1 with Burst or Pipelined Burst
SRAMs
Integrated Tag Valid Status Bits for
Cost Savings and Performance
Supports 5V SRAMs for Tag Address
Integrated DRAM Controller
64-Bit Data Path to Memory
4 Mbytes to 128 Mbytes Main
Memory
EDO Hyper Page Mode DRAM
(x-2-2-2 Reads) or Standard Page
Mode DRAMs
5 RAS Lines
4 Qword Deep Buffer for 3-1-1-1
Posted Write Cycles
Symmetrical and Asymmetrical
DRAMs
3V or 5V DRAMs
EDO DRAM Support
Highest Performance with Burst or
Pipelined Burst SRAMs
Superior Cacheless Designs
Fully Synchronous 25 30 33 MHz PCI
Bus Interface
100 MB s Instant Access Enables
Native Signal Processing (NSP) on
Pentium Processors
Synchronized CPU-to-PCI Interface
for High Performance Graphics
PCI Bus Arbiter PIIX and Four PCI
Bus Masters Supported
CPU-to-PCI Memory Write Posting
with 4 Dword Deep Buffers
Converts Back-to-Back Sequential
CPU to PCI Memory Writes to PCI
Burst Writes
PCI-to-DRAM Posting of 12 Dwords
PCI-to-DRAM up to 120 Mbytes Sec
Bandwidth Utilizing Snoop Ahead
Feature
NAND Tree for Board-Level ATE
Testing
208 Pin QFP for the 82437FX System
Controller (TSC) 100 Pin QFP for Each
82438FX Data Path (TDP)
Supported Kits
82437FX ISA Kit (TSC TDPs PIIX)
Y
Y
Y
Y
Y
The 82430FX PCIset consists of the 82437FX System Controller (TSC) two 82438FX Data Paths (TDP) and
the 82371FB PCI ISA IDE Xcelerator (PIIX) The PCIset forms a Host-to-PCI bridge and provides the second
level cache control and a full function 64-bit data path to main memory The TSC integrates the cache and
main memory DRAM control functions and provides bus control for transfers between the CPU cache main
memory and the PCI Bus The second level (L2) cache controller supports a write-back cache policy for cache
sizes of 256 Kbytes and 512 Kbytes Cacheless designs are also supported The cache memory can be
implemented with either standard burst or pipelined burst SRAMs An external Tag RAM is used for the
address tag and an internal Tag RAM for the cache line status bits For the TSC’s DRAM controller five rows
are supported for up to 128 Mbytes of main memory The TSC’s optimized PCI interface allows the CPU to
sustain the highest possible bandwidth to the graphics frame buffer at all frequencies Using the snoop ahead
feature the TSC allows PCI masters to achieve full PCI bandwidth The TDPs provide the data paths between
the CPU cache main memory and PCI For increased system performance the TDPs contain read prefetch
and posted write buffers
November 1996
Order Number 290518-002
82437FX TSC AND 82438FX TDP
290518– 1
82437FX TSC Simplified Block Diagram
290518 –2
82438FX TDP Simplified Block Diagram
2
82430FX PCIset DATASHEET 82437FX SYSTEM
CONTROLLER (TSC) AND 82438FX DATA PATH UNIT (TDP)
CONTENTS
1 0 ARCHITECTURE OVERVIEW OF TSC TDP
2 0 SIGNAL DESCRIPTION
2 1 TSC Signals
2 1 1 HOST INTERFACE (TSC)
2 1 2 DRAM INTERFACE (TSC)
2 1 3 SECONDARY CACHE INTERFACE (TSC)
2 1 4 PCI INTERFACE (TSC)
2 1 5 TDP INTERFACE (TSC)
2 1 6 CLOCKS (TSC)
2 2 TDP Signals
2 2 1 DATA INTERFACE SIGNALS (TDP)
2 2 2 TSC INTERFACE SIGNALS (TDP)
2 2 3 CLOCK SIGNAL (TDP)
2 3 Signal State During Reset
3 0 REGISTER DESCRIPTION
3 1 Control Registers
3 1 1 CONFADD CONFIGURATION ADDRESS REGISTER
3 1 2 CONFDATA CONFIGURATION DATA REGISTER
3 2 PCI Configuration Registers
3 2 1 VID VENDOR IDENTIFICATION REGISTER
3 2 2 DID DEVICE IDENTIFICATION REGISTER
3 2 3 PCICMD PCI COMMAND REGISTER
3 2 4 PCISTS PCI STATUS REGISTER
3 2 5 RID REVISION IDENTIFICATION REGISTER
3 2 6 SUBC SUB-CLASS CODE REGISTER
3 2 7 BCC BASE CLASS CODE REGISTER
3 2 8 MLT MASTER LATENCY TIMER REGISTER
3 2 9 BIST BIST REGISTER
3 2 10 PCON PCI CONTROL REGISTER
3 2 11 CC CACHE CONTROL REGISTER
3 2 12 DRAMC DRAM CONTROL REGISTER
3 2 13 DRAMT DRAM TIMING REGISTER
3 2 14 PAM PROGRAMMABLE ATTRIBUTE MAP REGISTERS (PAM 6 0 )
3 2 15 DRB DRAM ROW BOUNDARY REGISTERS
PAGE
5
6
7
7
8
9
10
11
11
12
12
12
12
13
14
14
15
15
16
18
18
18
19
19
20
20
20
21
21
22
23
24
26
29
3
CONTENTS
3 2 16 DRT DRAM ROW TYPE REGISTER
3 2 17 SMRAM SYSTEM MANAGEMENT RAM CONTROL REGISTER
4 0 FUNCTIONAL DESCRIPTION
4 1 Host Interface
4 2 PCI Interface
4 3 Secondary Cache Interface
4 3 1 CLOCK LATENCIES
4 3 2 SNOOP CYCLES
4 3 3 CACHE ORGANIZATION
4 3 4 CLARIFICATION ON HOW TO FLUSH THE L2 CACHE
4 4 DRAM Interface
4 4 1 DRAM ORGANIZATION
4 4 2 MAIN MEMORY ADDRESS MAP
4 4 3 DRAM ADDRESS TRANSLATION
4 4 4 DRAM PAGE MODE
4 4 5 EDO MODE
4 4 6 DRAM PERFORMANCE
4 4 7 DRAM REFRESH
4 4 8 SYSTEM MANAGEMENT RAM
4 5 82438FX Data Path (TDP)
4 6 PCI Bus Arbitration
4 6 1 PRIORITY SCHEME AND BUS GRANT
4 6 2 CPU POLICIES
4 7 Clock Generation and Distribution
4 7 1 RESET SEQUENCING
5 0 PINOUT AND PACKAGE INFORMATION
5 1 82437FX Pinout
5 2 82438FX Pinout
5 3 82437FX Package Dimensions
5 4 82438FX Package Dimensions
6 0 82437FX TSC TESTABILITY
6 1 Test Mode Description
6 2 NAND Tree Mode
7 0 82438FX TDP TESTABILITY
7 1 Test Mode Description
7 2 NAND Tree Mode
PAGE
31
32
34
34
34
34
35
35
35
36
41
41
42
42
44
45
46
46
46
46
47
47
48
48
48
49
49
53
55
57
58
58
58
64
64
64
4
82437FX TSC AND 82438FX TDP
The two TDPs provide a 64-bit data path to the host
and to main memory and provide a 16-bit data path
(PLINK) between the TSC and TDP PLINK provides
the data path for CPU to PCI accesses and for PCI
to main memory accesses The TSC and TDP bus
interfaces are designed for 3V and 5V busses The
TSC TDP connect directly to the Pentium proces-
sor 3V host bus The TSC TDP connect directly to
5V or 3V main memory DRAMs and the TSC con-
nects directly to the 5V PCI Bus
1 0 ARCHITECTURE OVERVIEW OF
TSC TDP
The 82430FX PCIset (Figure 1) consists of the
82437FX System Controller (TSC) two 82438FX
Data Path (TDP) units and the 82371FB PCI IDE
ISA Xcelerator (PIIX) The TSC and two TDPs form a
Host-to-PCI bridge The PIIX is a multi-function PCI
device providing a PCI-to-ISA bridge and a fast IDE
interface The PIIX also provides power manage-
ment and has a plug and play port

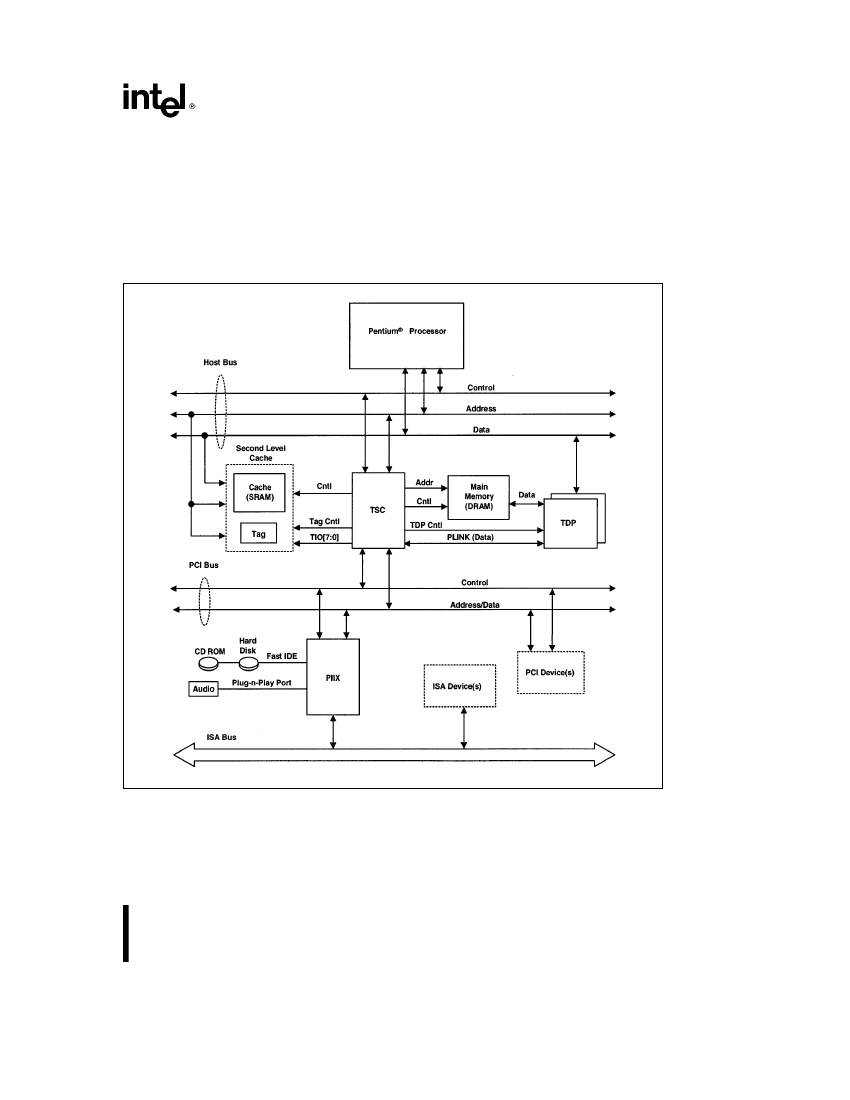

290518 –3
Figure 1 82430FX PCIset System
5
