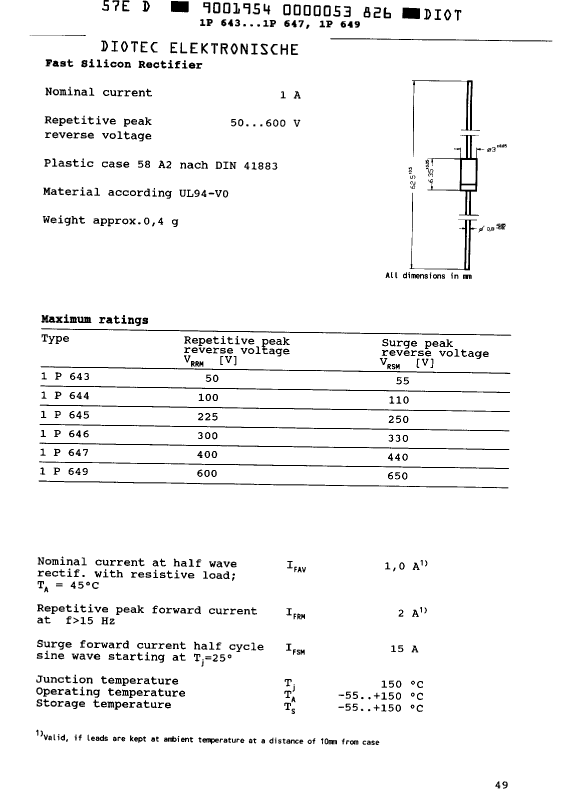

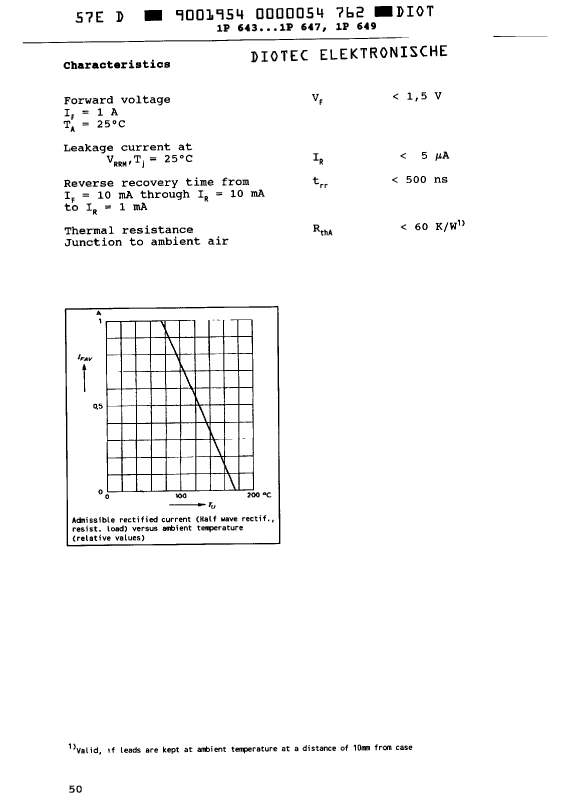

1P646 datasheet, PDF - EEWORLD Datasheet

1P646: DescriptionRectifier Diode, 1 Element, 1A, 300V V(RRM),; CategoryDiscrete semiconductor diode; File Size53KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/

Download Datasheet Parametric Compare View All

1P646 Overview

Rectifier Diode, 1 Element, 1A, 300V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	15 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	1P646	1P643	1P644	1P647	1P645
Description	Rectifier Diode, 1 Element, 1A, 300V V(RRM),	Rectifier Diode, 1 Element, 1A, 50V V(RRM)	Rectifier Diode, 1 Element, 1A, 100V V(RRM)	Rectifier Diode, 1 Element, 1A, 400V V(RRM),	Rectifier Diode, 1 Element, 1A, 225V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compli	compli	compli
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	15 A	15 A	15 A	15 A	15 A
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	300 V	50 V	100 V	400 V	225 V
Maximum reverse recovery time	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1
ECCN code	EAR99	-	-	EAR99	EAR99
