8806-0-18-15-47-01-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size190KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8806-0-18-15-47-01-04-0 Overview

PCB Terminal

8806-0-18-15-47-01-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8806
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

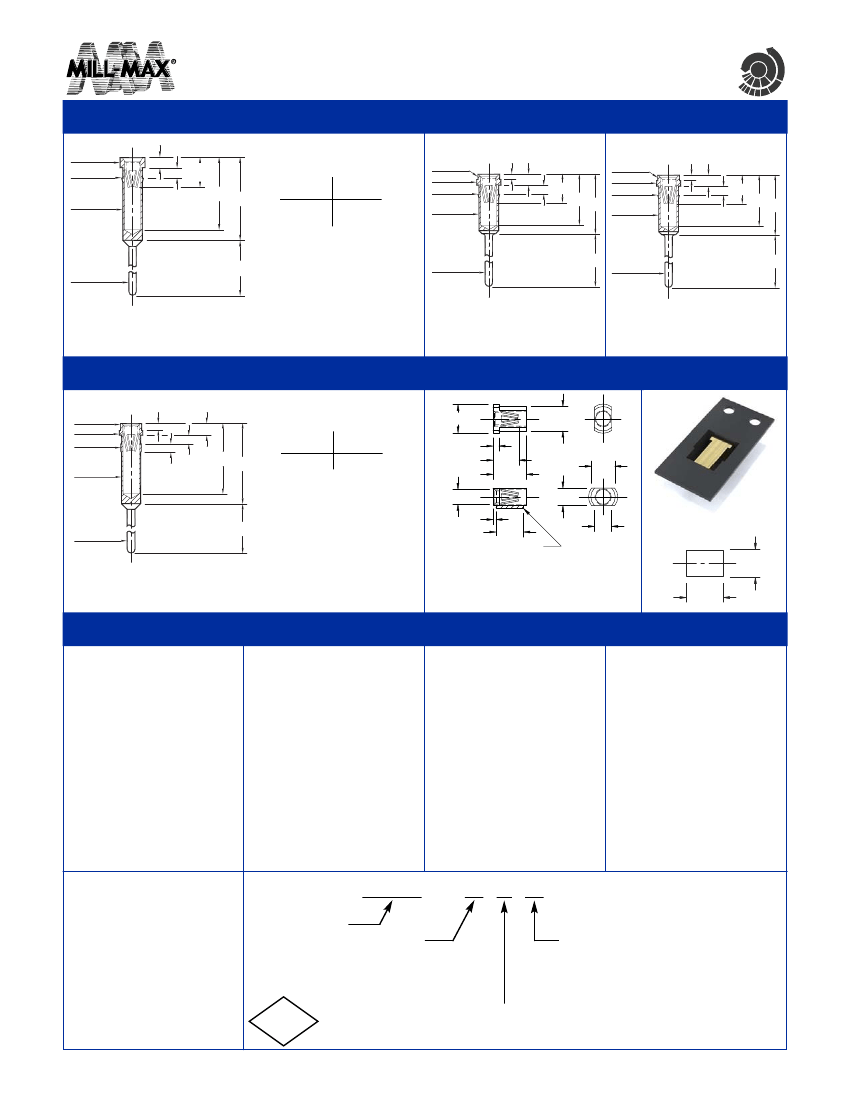

PIN RECEPTACLES

for 0,64 - 0,94 diameter pins

and 0,64 square pins

CHI

PINS

0401/6401

1,98 DIA.

1,7 DIA.

0,81

0,71 2,29

5,84

1,55 DIA.

6,60

1303

0,41

1,68 DIA.

8303

0,41

1,68 DIA.

0,76

0,79 2,24

3,71

4,19

1,83 DIA.

1,63 DIA.

1,5 DIA.

0,76

0,79 2,24

3,71

4,19

Basic Part

Number

Length

1,83 DIA.

1,63 DIA.

1,5 DIA.

0401-0

6401-0

8,64

13,72

0,64 DIA.

0,56 DIA.

3,18

0,51 DIA.

20,32

X401-0-15-XX-47-XX-04-0

Press-fit in 1,63 mounting hole

1303-0-15-XX-47-XX-04-0

Press-fit in 1,55 mounting hole

8303-0-15-XX-47-XX-04-0

Press-fit in 1,55 mounting hole

4095

0,41

1,65 DIA.

1,83 DIA.

1,6 DIA.

KNURL

1,5 DIA.

0,64

0,71

6,35

7,11

0,76

8806

2,54 DIA.

2,13 DIA.

Basic Part

Number

Length

0,51

2,11

4095-0

16,13

1,3 DIA.

0,25

2,92

1,52

2,03

0,64 DIA.

2,41

P.C.B. PAD

1,5

P.C.B. Layout

8806-0-18-XX-47-XX-40-0

409X-0-15-XX-47-XX-04-0

Press-fit in 1,55 mounting hole

Surface mount

Also available on 12mm wide carrier

tape: 4,000 parts per 330mm reel.

Order as: 8806-0-58-XX-47-XX-40-0

2,41

1,75

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - 47 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μmTIN OVER NICKEL (RoHS)



0,25μm GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μm TIN OVER NICKEL (RoHS)



0,76μm GOLD OVER NICKEL (RoHS)

RoHS

CONTACT

#47

CONTACT (DATA ON PAGE 222)

w w w. m i l l - m a x . c o m

150



516-922-6000
