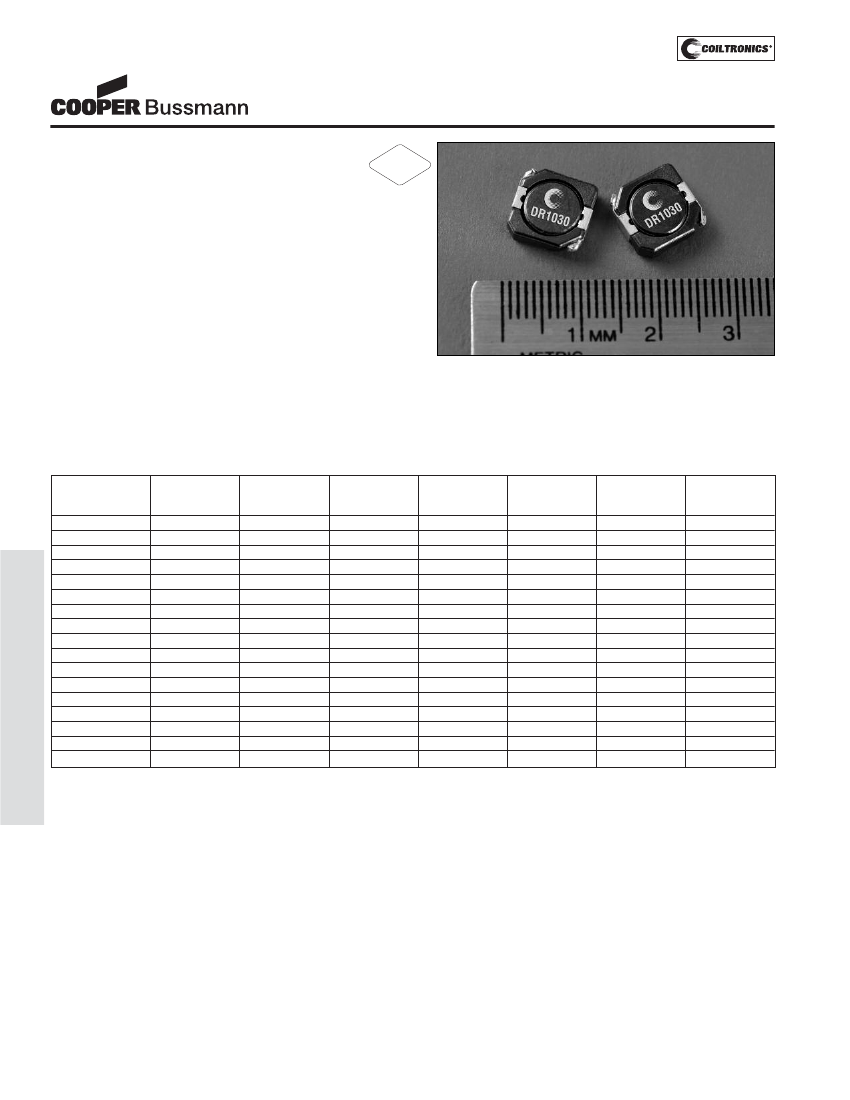

DR1030 Series
Low Profile Power Inductors
Description
RoHS
2002/95/EC
• 125°C maximum total temperature operation
• Low profile surface mount inductors
• 10.3mm x 10.5mm x 3.0mm shielded drum core
• Ferrite core material
• Inductance range from 1.1μH to 150μH
• Current range from 9.5 Amps to 0.68 Amps
• Frequency range up to 1MHz
Applications
• Computer, DVD players, and portable power devices
• Notebook power, LCD panels
• DC-DC converters
• Input/output filter, Buck/Boost regulators
Environmental Data
• Storage temperature range: -40°C to +125°C
• Operating temperature range: -40°C to +125°C
(range is application specific)
• Solder reflow temperature: +260°C max. for 10 seconds
maximum
Part Number
Rated
Inductance
(μH)
1.1
1.8
2.8
3.9
5.2
6.8
8.2
10
15
22
33
47
68
82
100
120
150
OCL (1)
μH ± 30%
1.1
1.9
2.8
4.0
5.2
6.8
8.4
10.4
14.8
22.8
32.4
47.9
66.6
82.4
100
119.3
155.3
Irms (2)
Amperes
7.0
5.9
5.1
4.3
3.7
3.5
3.3
2.8
2.3
1.8
1.6
1.3
1.1
1.0
0.86
0.8
0.68
Packaging
• Supplied in tape and reel packaging,
1000 parts per reel
Isat (3)
Amperes
9.50
7.41
6.08
5.13
4.75
3.90
3.54
3.18
2.66
2.19
1.81
1.52
1.24
1.14
1.05
0.95
0.86
DR1030-1R1-R
DR1030-1R8-R
DR1030-2R8-R
DR1030-3R9-R
DR1030-5R2-R
DR1030-6R8-R
DR1030-8R2-R
DR1030-100-R
DR1030-150-R
DR1030-220-R
DR1030-330-R
DR1030-470-R
DR1030-680-R
DR1030-820-R
DR1030-101-R
DR1030-121-R
DR1030-151-R
DCR
mΩ@20°C
(Typical)
6.5
9.1
12.1
16.4
22.9
24.9
28.4
40.2
57.3
95.5
113.6
166.6
253.1
332.4
375.0
523.4
590.0
DCR
mΩ@20°C
(Maximum)
7.9
11.0
14.5
20.0
27.5
30.0
34.1
48.0
68.8
114.6
136.3
200.0
303.7
382.3
450.0
602.0
700
K-factor
(4)
22
17
14
12
10
9.0
8.0
7.0
6.0
4.5
4
3.4
2.9
2.6
2.4
1.9
1.4
SHIELDED DRUM (DR1030)
(1) Open Circuit Inductance Test Parameters: 100kHz, 0.1V, 0.0Adc.
(2) Irms: DC current for an approximate
ΔT
of 40°C without core loss. Derating is
necessary for AC currents. PCB layout, trace thickness and width, air-flow, and
proximity of other heat generating components will affect the temperature rise. It
is recommended that the temperature of the part not exceed 125°C under worst
case operating conditions verified in the end application.
(3) Isat Amperes peak for approximately 35% rolloff max. (@25°C)

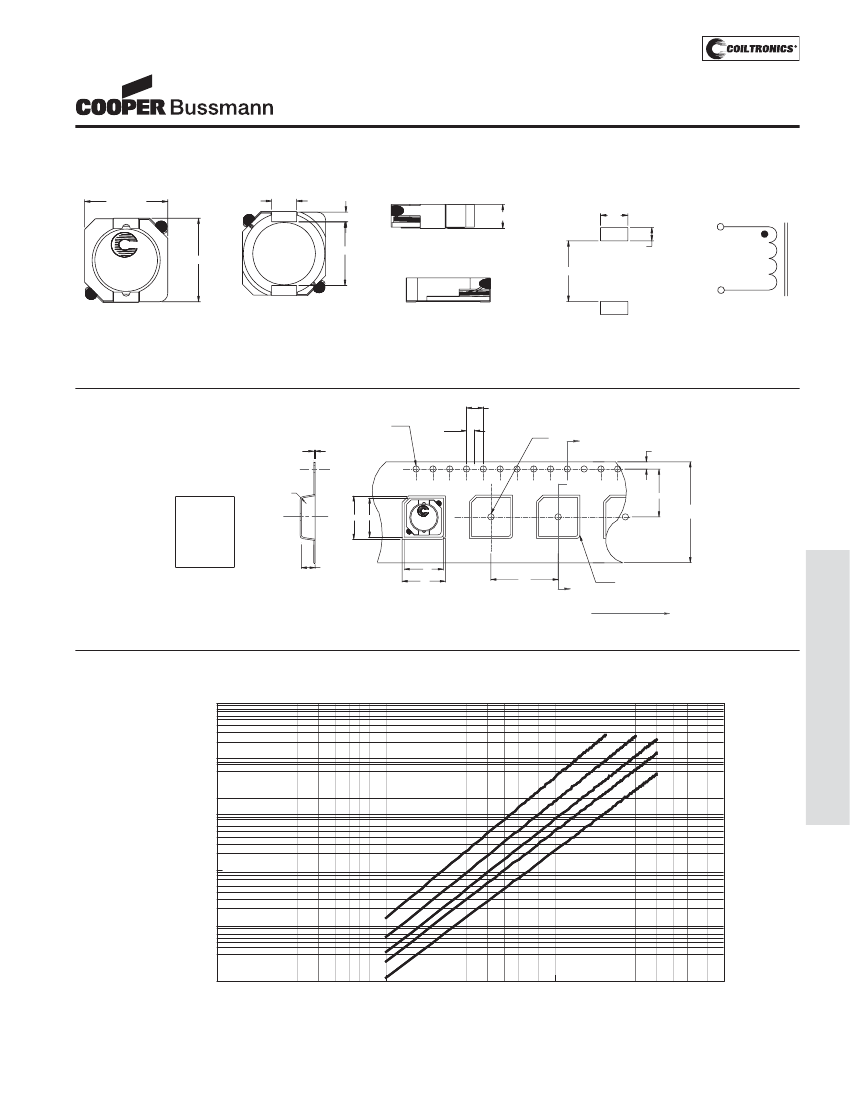

(4) K-factor: Used to determine B p-p for core loss (see graph).
B p-p = K*L*ΔI, B p-p(mT), K: (K factor from table), L: (Inductance in uH),
ΔI
(Peak to peak ripple current in Amps).
(5) Part Number definition: DR1030-xxx-R
DR1030 = Product code and size, xxx = Inductance value in μH, R = decimal
point. If no R is present third character = # of zeros. -R suffix = RoHS compliant
PM-56
