HCTS191DMSR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HCTS191DMSR

HCTS191DMSR: DescriptionBinary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16; Categorylogic logic; File Size258KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCTS191DMSR Overview

Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16

HCTS191DMSR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	BIDIRECTIONAL
series	HCT
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
propagation delay (tpd)	33 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	200k Rad(Si) V
Trigger type	POSITIVE EDGE
Base Number Matches	1

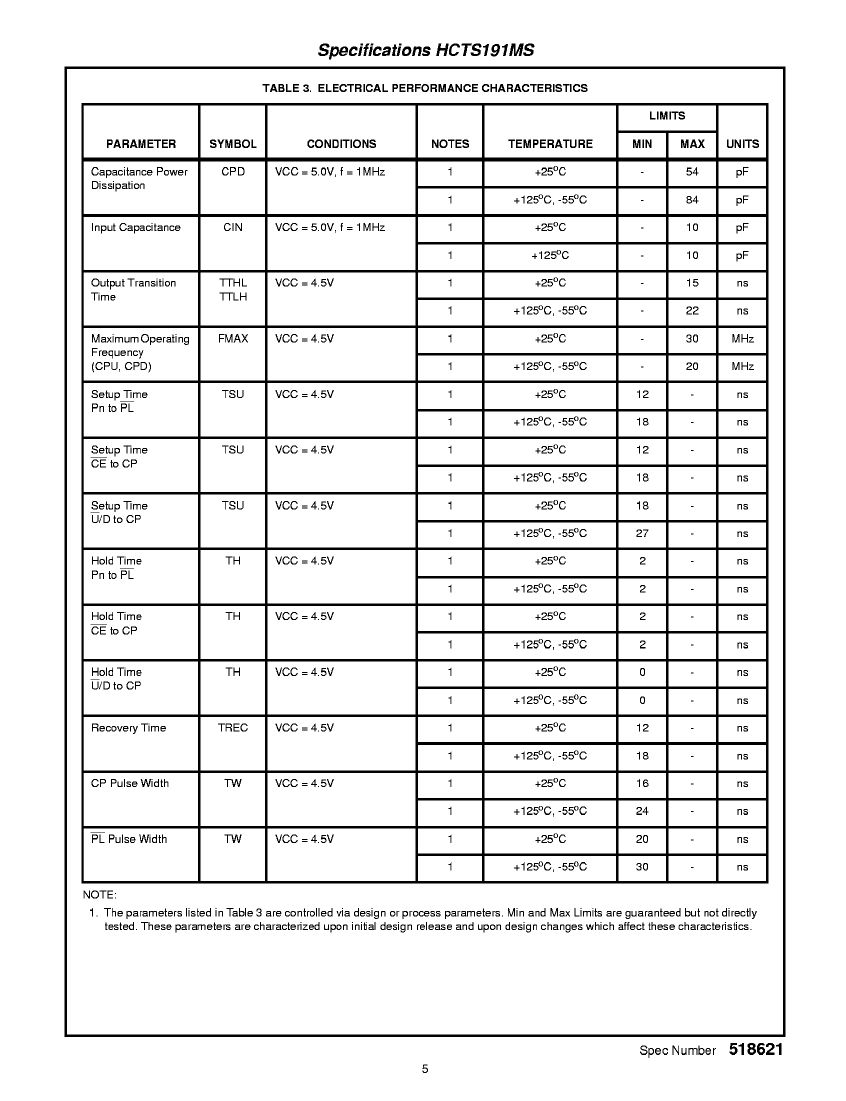

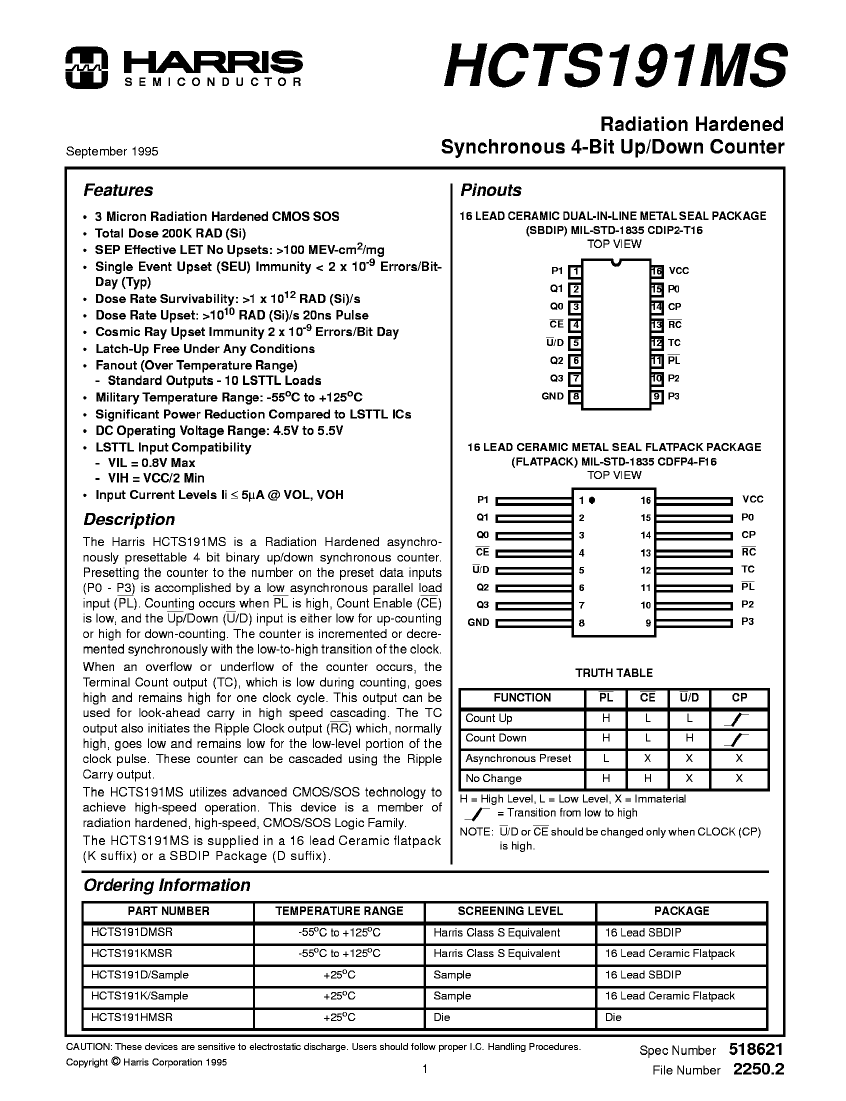

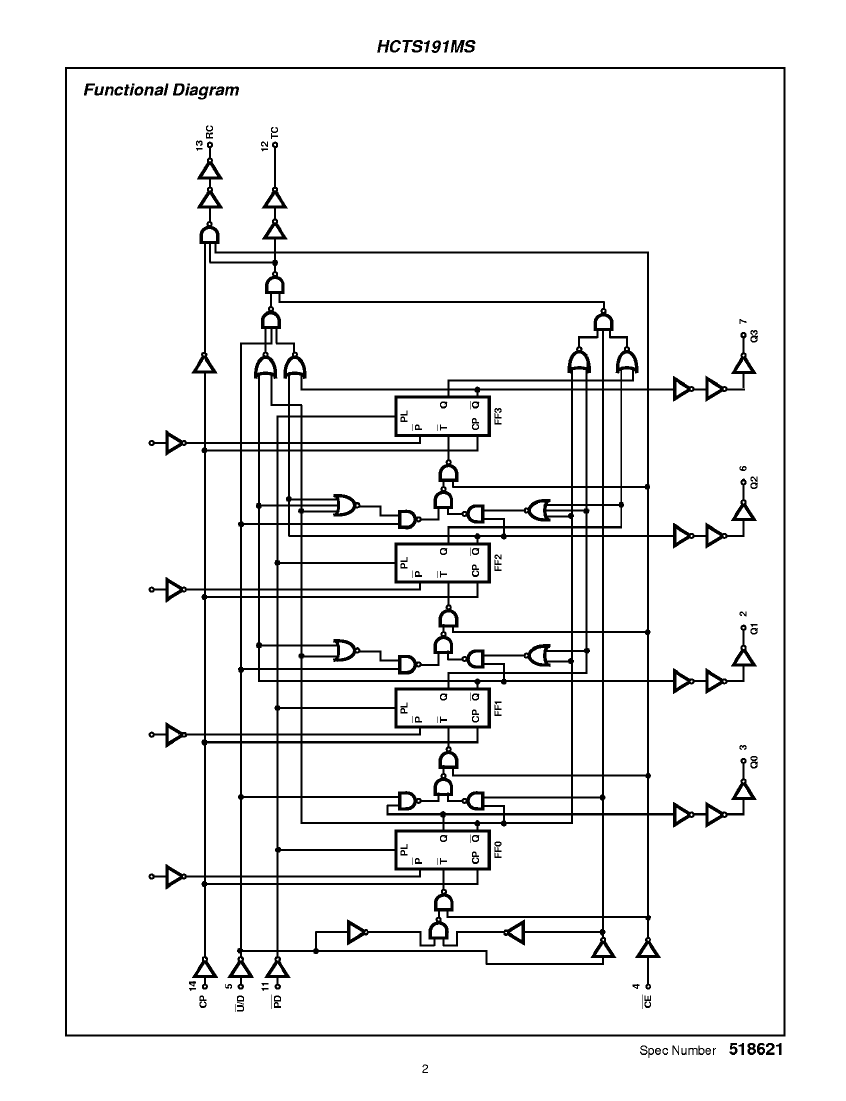

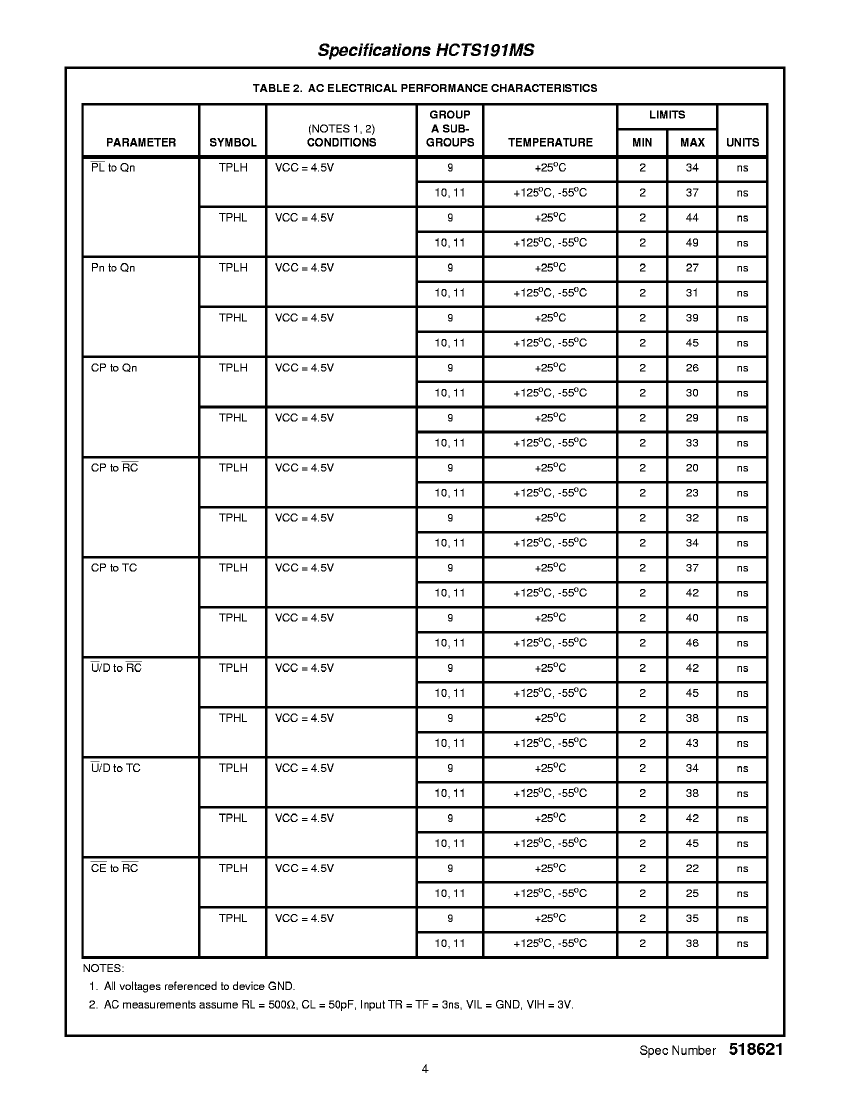

Preview

Download Datasheet

View All

HCTS191DMSR Related Products

	HCTS191DMSR	5962R9575601VXC	5962R9575601VEC	5962R9575601V9A	HCTS191KMSR	HCTS191K/SAMPLE	HCTS191D/SAMPLE	HCTS191HMSR
Description	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16, CERAMIC, DFP-16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, CERAMIC, DIP-16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, DIE-16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS
package instruction	DIP, DIP16,.3	DFP,	DIP,	DIE,	DFP, FL16,.3	,	,	DIE,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	HCT	HCT	HCT	HCT	HCT	HCT	HCT	HCT
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16	X-XUUC-N16	R-CDFP-F16	R-CDFP-F16	R-CDIP-T16	X-XUUC-N16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	FLATPACK	IN-LINE	UNCASED CHIP	FLATPACK	FLATPACK	IN-LINE	UNCASED CHIP
propagation delay (tpd)	33 ns	33 ns	33 ns	33 ns	33 ns	33 ns	33 ns	33 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	NO LEAD	FLAT	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	DUAL	UPPER	DUAL	DUAL	DUAL	UPPER
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maker	Harris	-	-	-	Harris	Harris	Harris	Harris
JESD-609 code	e0	e4	e4	e0	e0	-	-	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-55 °C
encapsulated code	DIP	DFP	DIP	DIE	DFP	-	-	DIE
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	-	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	GOLD	GOLD	TIN LEAD	Tin/Lead (Sn/Pb)	-	-	-
total dose	200k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	200k Rad(Si) V	-	-	-
Base Number Matches	1	1	1	1	1	1	1	-
