1.5KE7.5CTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5KE7.5CTR

1.5KE7.5CTR: DescriptionTrans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size143KB，4 Pages; ManufacturerFagor Electrónica

Download Datasheet Parametric Compare View All

1.5KE7.5CTR Overview

Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2

1.5KE7.5CTR Parametric

Parameter Name	Attribute value
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	8.25 V
Minimum breakdown voltage	6.75 V
Breakdown voltage nominal value	7.5 V
Shell connection	ISOLATED
Maximum clamping voltage	11.7 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum reverse current	500 µA
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

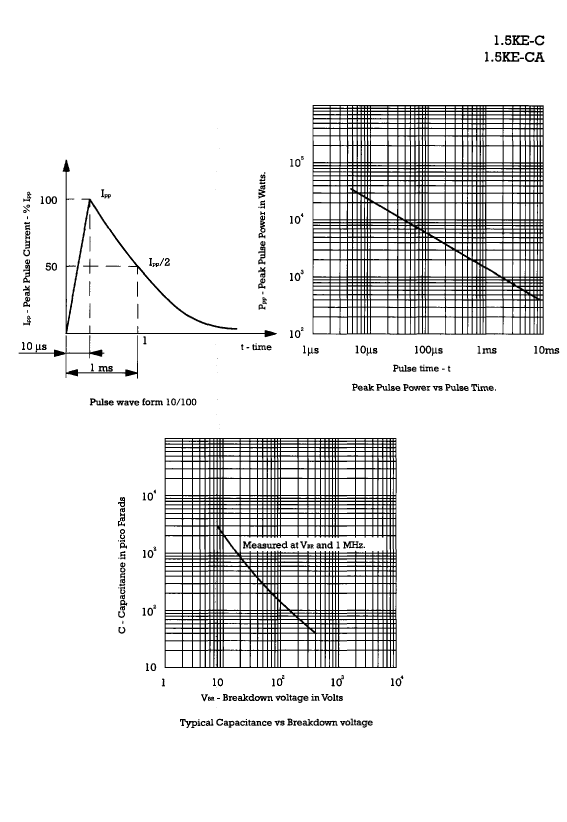

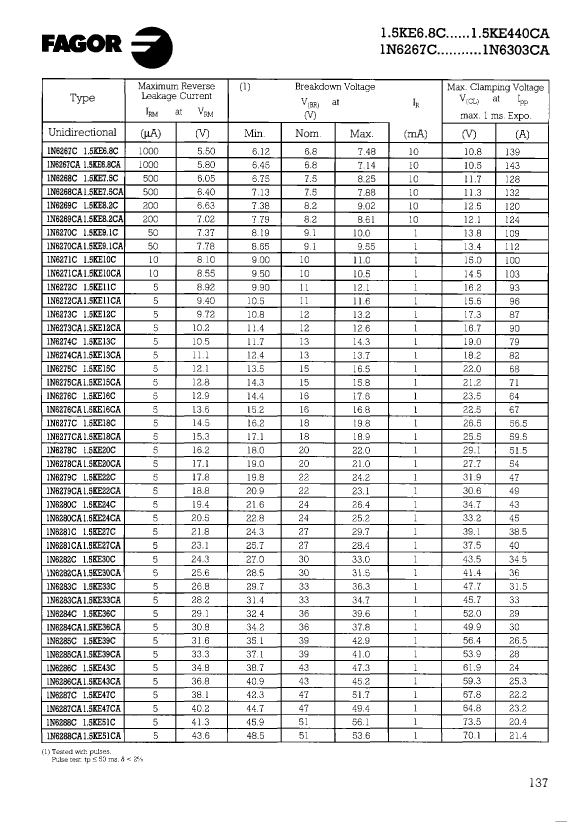

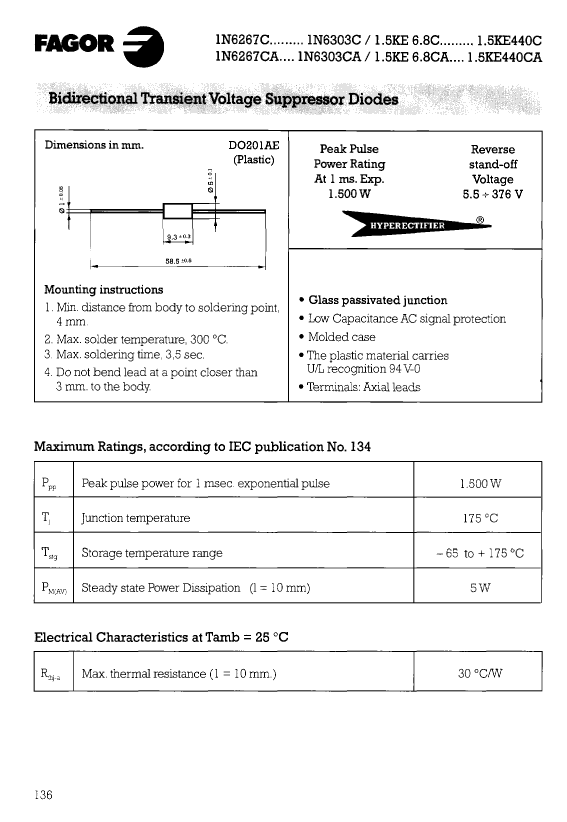

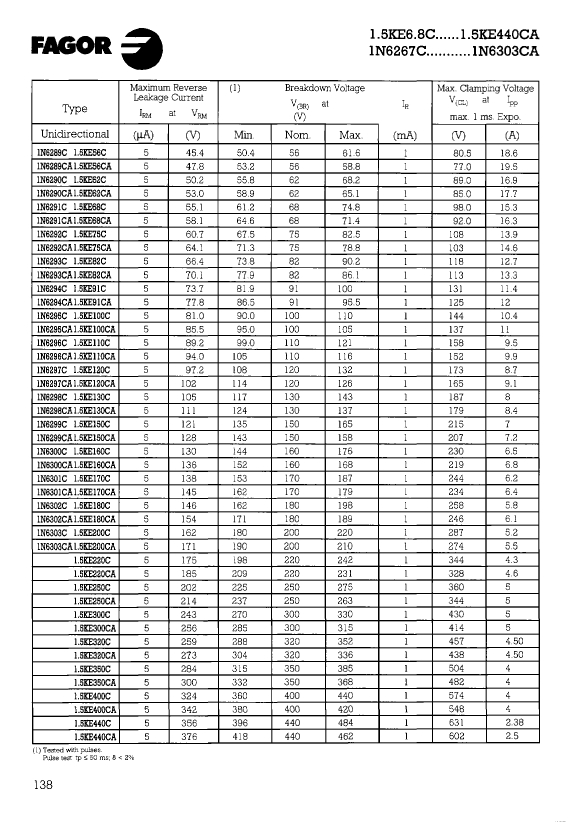

Preview

Download Datasheet

View All

1.5KE7.5CTR Related Products

	1.5KE7.5CTR	1.5KE7.5CAMP	1.5KE6.8CAAMP	1.5KE6.8CTR	1.5KE6.8CAMP	055Q200B251PT-A
Description	Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2	Ceramic Capacitor, Multilayer, Ceramic, 250V, 0.5% +Tol, 0.5% -Tol, 90ppm/Cel TC, 0.00002uF, 0606,
package instruction	O-PALF-W2	PLASTIC PACKAGE-2	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	, 0606
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	125 °C
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	SMT
Contacts	2	2	2	2	2	-
Maximum breakdown voltage	8.25 V	8.25 V	7.14 V	7.48 V	7.48 V	-
Minimum breakdown voltage	6.75 V	6.75 V	6.45 V	6.12 V	6.12 V	-
Breakdown voltage nominal value	7.5 V	7.5 V	6.8 V	6.8 V	6.8 V	-
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	-
Maximum clamping voltage	11.7 V	11.7 V	10.5 V	10.8 V	10.8 V	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	-
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	-
Maximum non-repetitive peak reverse power dissipation	1500 W	1500 W	1500 W	1500 W	1500 W	-
Number of components	1	1	1	1	1	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	-
polarity	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	-
Maximum power dissipation	5 W	5 W	5 W	5 W	5 W	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum reverse current	500 µA	500 µA	1000 µA	1000 µA	1000 µA	-
surface mount	NO	NO	NO	NO	NO	-
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	-
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	-
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	-
Base Number Matches	1	1	1	1	1	-
