26-61-2131 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 26-61-2131

26-61-2131: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size132KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

26-61-2131 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

26-61-2131 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	41771
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0
Base Number Matches	1

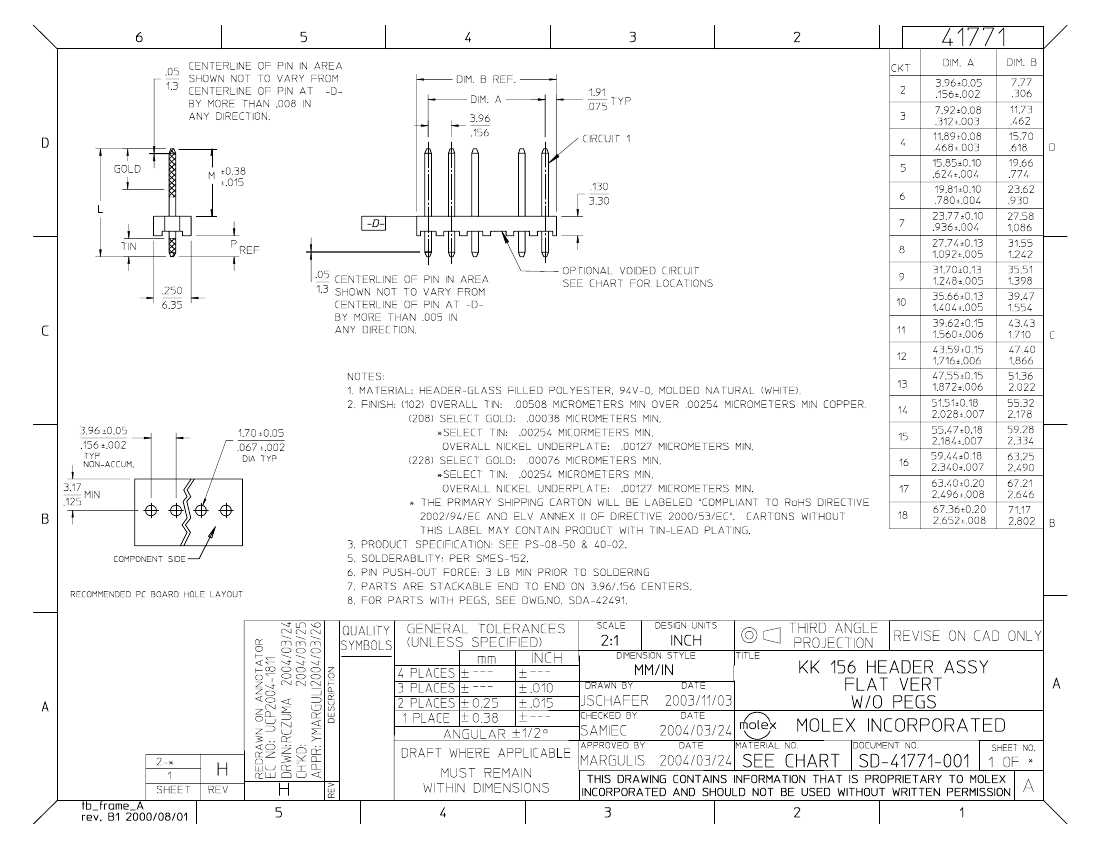

Preview

Download Datasheet

View All

26-61-2131 Related Products

	26-61-2131	26-61-2071	26-60-2141	26-61-2051	26-61-2141	26-60-2111	26-60-2131	26-60-2051
Description	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	13	7	14	5	14	11	13	5
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
Manufacturer's serial number	41771	-	41771	41771	41771	-	41771	-
