HCSD-07-D-36.42-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> HCSD-07-D-36.42-01

HCSD-07-D-36.42-01: DescriptionInterconnection Device,; CategoryThe connector The connector; File Size338KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HCSD-07-D-36.42-01 Overview

Interconnection Device,

HCSD-07-D-36.42-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	INTERCONNECTION DEVICE
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e3
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION AB

DO NOT

SCALE FROM

THIS PRINT

XX.XX (SEE NOTE 10)

HCSD-XX-X-XX.XX-01-XXX-XXX

No OF POSITIONS

-02 THRU -36

(STANDARD COLOR

CODED CABLE)

(-32 & -36 ONLY AVAILABLE

WITH -G OPTION)

CB-XX-28-7/36-050-G

END ASSEMBLY

-S: SINGLE END

-D: DOUBLE END

-G: GRAY CABLE

(DIFFERENT AS SHOWN, OTHERWISE

SAME AS FIG1)

OPTION #2

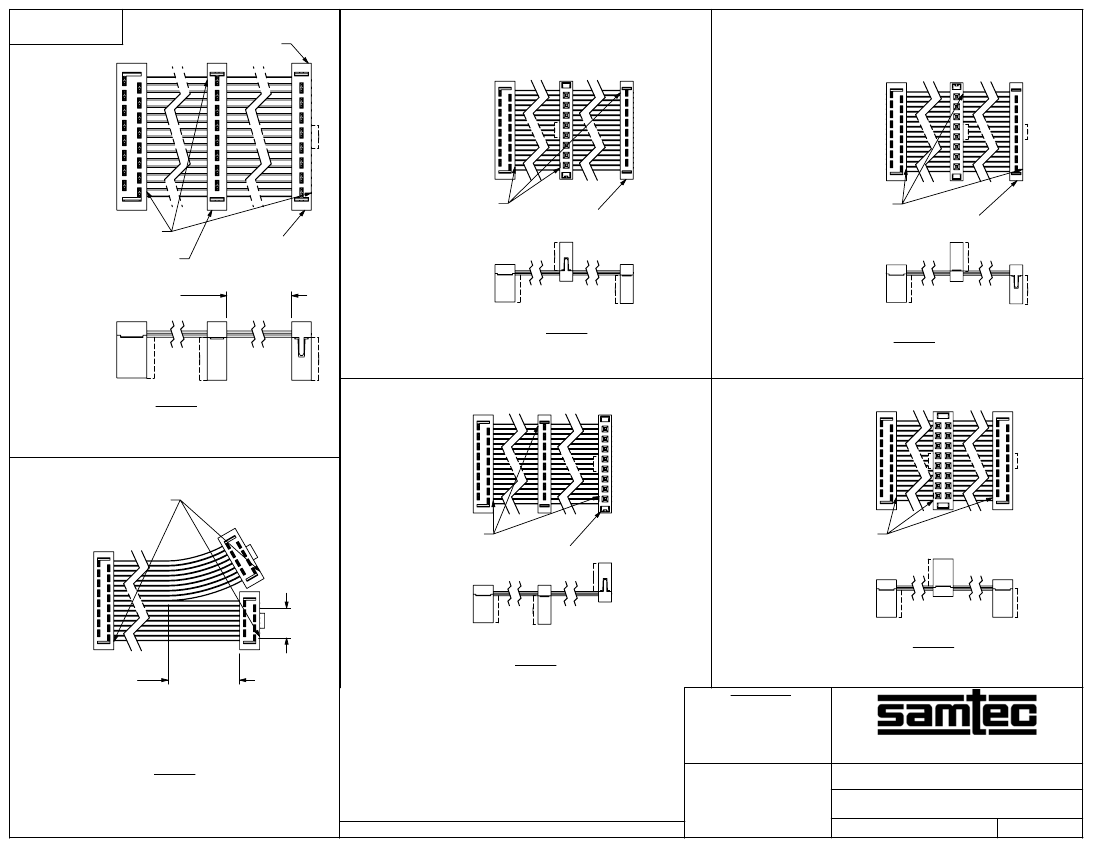

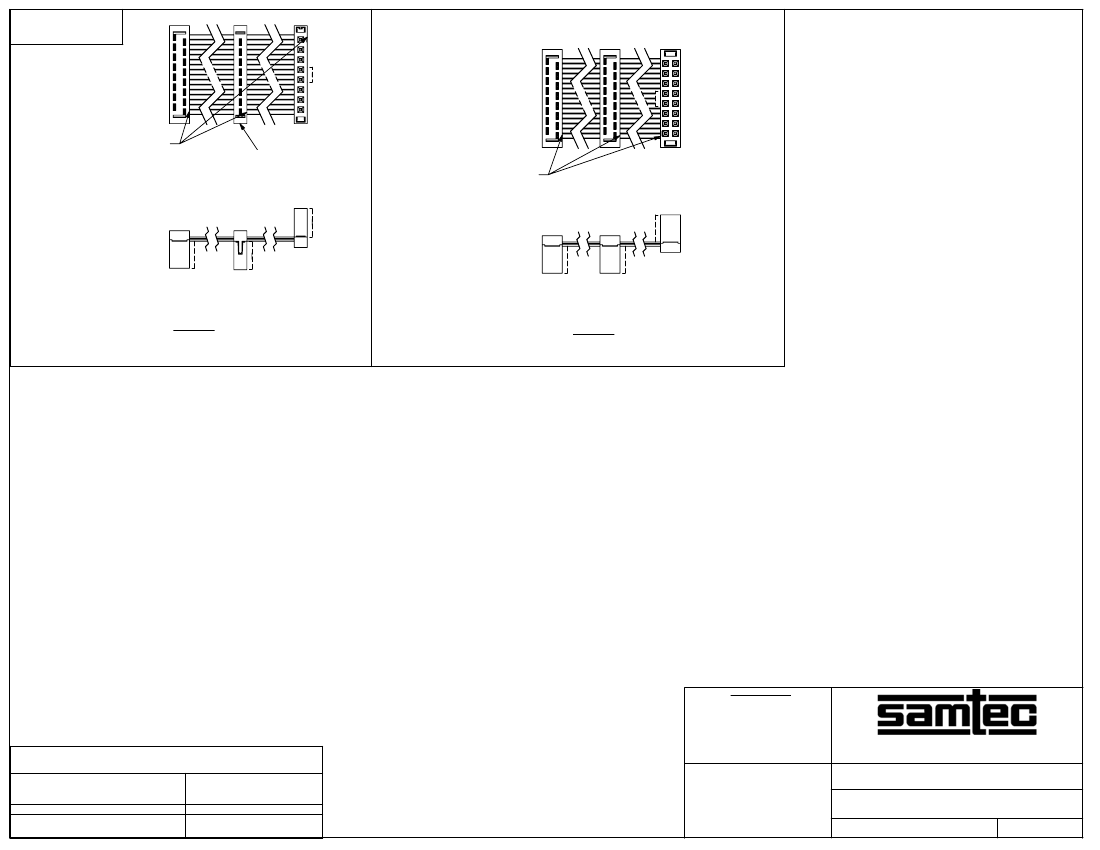

(SEE FIG 3 THRU FIG 19

FOR AVAILABLE OPTIONS)

OPTION #1

(SEE FIG 3 THRU FIG 19 FOR

AVAILABLE OPTIONS)

LEAD STYLE

ASSEMBLY LENGTH

(2 INCH MINIMUM)

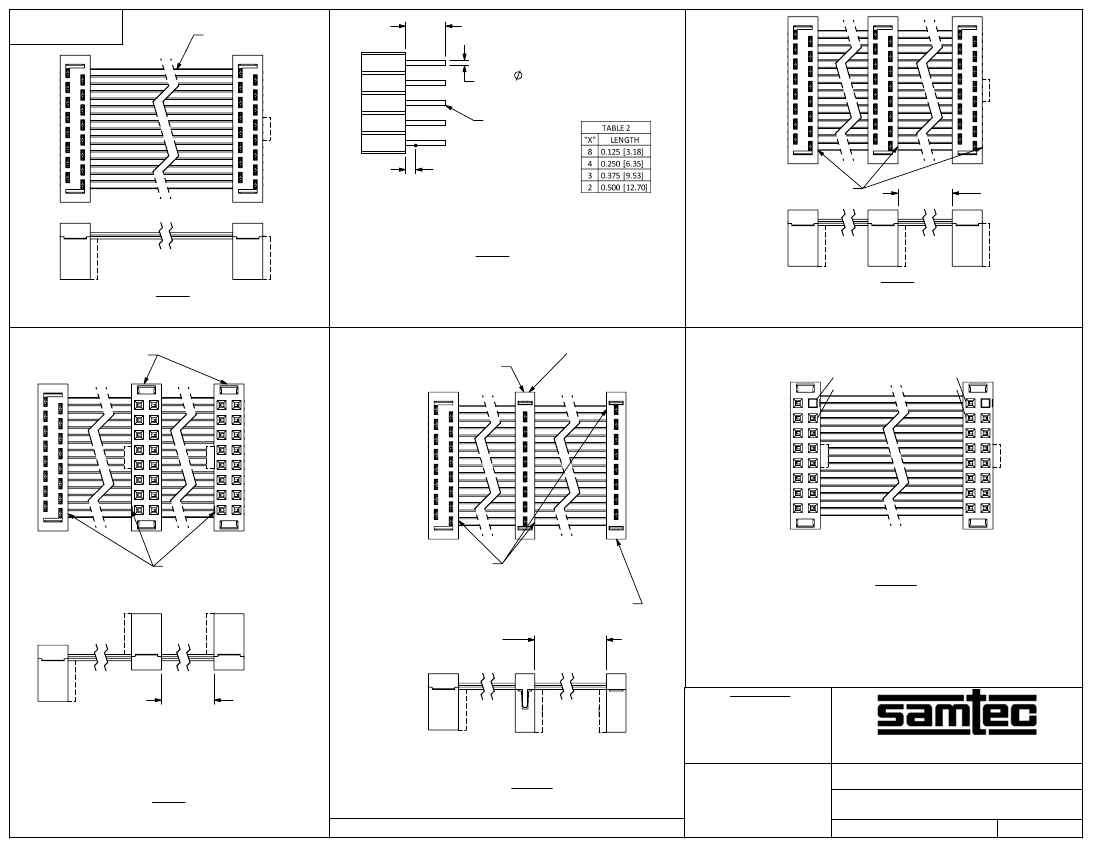

FIG 3

HCSD-08-S-XX.XX-01 SHOWN

(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)

XX.XX (SEE NOTE 10)

.200 5.08 REF

FIG 2

-T: BRIGHT ACID TIN ON ENTIRE PIN

(USE HCSD-XX-01-TX)

LEAVE BLANK FOR 10µ" SELECTIVE GOLD IN

CONTACT AREA, BRIGHT ACID TIN ON TAIL.

-T: TIN PLATING

FIG 4

(NO OF POS x .100[2.54] + .180[4.57] REF

.150 3.81 REF

HCSD-XX-01-N

BROWN OR RED WIRE

INDICATES POS #1

.375 9.53 REF

(SEE NOTE 5)

NOTCH DENOTES

FIRST POSITION

(SEE NOTE 8)

PROPRIETARY NOTE

CB-XX-28-7/36-050-C

.010[0.25] MAX

CABLE OVERHANG

(TYP)

.050 1.27 REF

-N: NOTCH

(NOT AVAILABLE ON -02 POSITION)

(DIFFERENT AS SHOWN, OTHERWISE

SAME AS FIG1)

FIG 5

HCSD-XX-01-X

NOTES:

HCSD-08-D-XX.XX-01 SHOWN

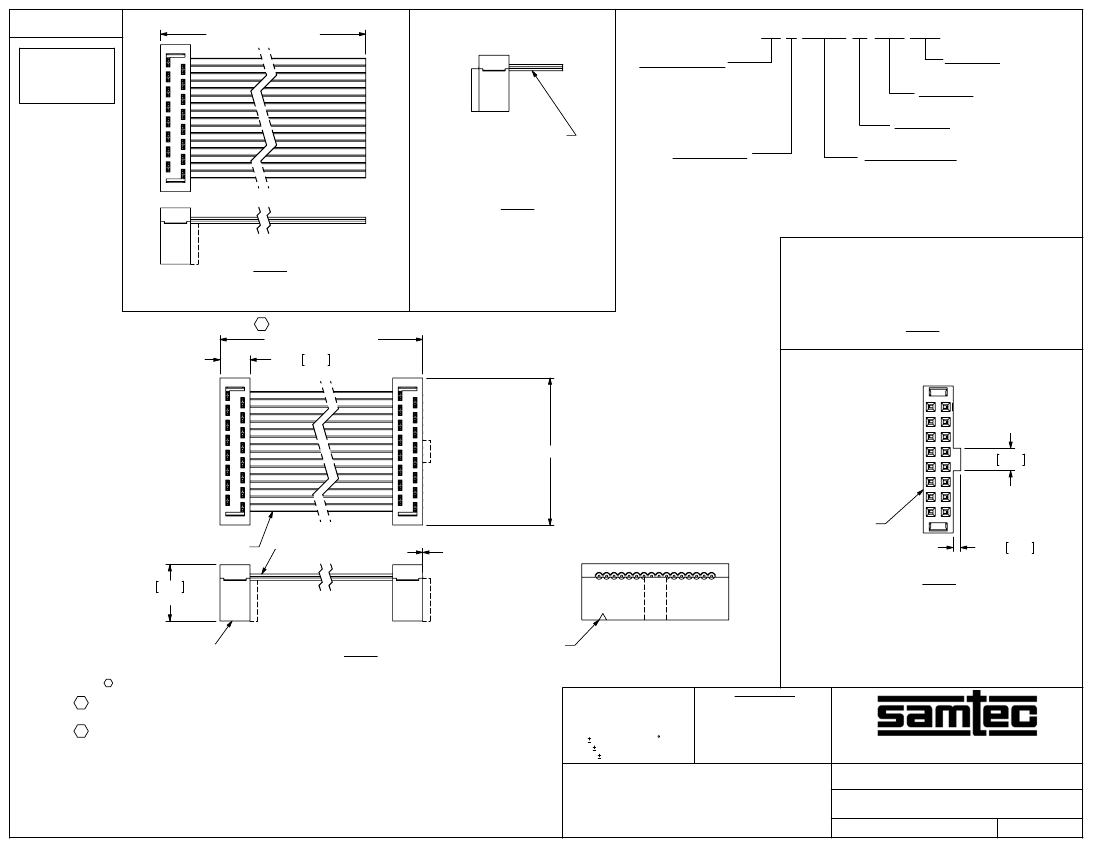

FIG 1

REPRESENTS A CRITICAL DIMENSION.

2. HIDDEN LINES ARE USED TO SHOW POLARIZATION WHEN USING -N OPTION.

3. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED FOR SHORTS AND OPENS

4. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 1000V.

5. HCSD-XX-01-X TO BE PRESSED TOGETHER WITH NO GAPS BETWEEN CABLE & BODIES.

6. CONDUCTORS SHALL BE CONSISTENT IN APPEARANCE, SOLDER MUST MAINTAIN

CABLE STRANDS WITHIN THE MAX DIA. TOLERANCE.

7. NOTE DELETED.

8. FOR R OR RW OPTION, CABLE RIB ORIENTATION CAN BE EITHER TOWARDS OR AWAY

FROM THE CAP.

9. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS SHOULD NOT EXTEND PAST THE CABLE

INSULATION, EXTENDING LESS THAN 25% OF CABLE THICKNESS ON CONSECUTIVE AND LESS

THAN 50% OF THE CABLE THICKNESS ON NON-CONSECUTIVE STRANDS IS CONSIDERED A

PROCESS INDICATOR.

10. FOR LENGTHS LESS THAN 12.5", TOLERANCE SHALL BE ±.125[3.18], ALL OTHER LENGTHS SHALL BE ±1%.

F:\DWG\MISC\MKTG\HCSD-XX-X-XX.XX-01-XXX-XXX-MKT.SLDDRW

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:2

INSULATOR: LCP, UL 94 VO, COLOR: BLACK

CONTACT: PHOS BRONZE

CABLE: COLOR-CODED OR GRAY PVC/TIN PLATED COPPER

.100 CL MOLD TO POS DOUBLE

ROW FEMALE ASSEMBLY

HCSD-XX-X-XX.XX-01-XXX-XXX

08/03/1990

SHEET

BY:

KOLB
