BD035-26A-L-0480-0250-0800-N-G: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD035-26A-L-0480-0250-0800-N-G Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,

BD035-26A-L-0480-0250-0800-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.134 inch
subject depth	0.18 inch
body length	0.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BD035
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

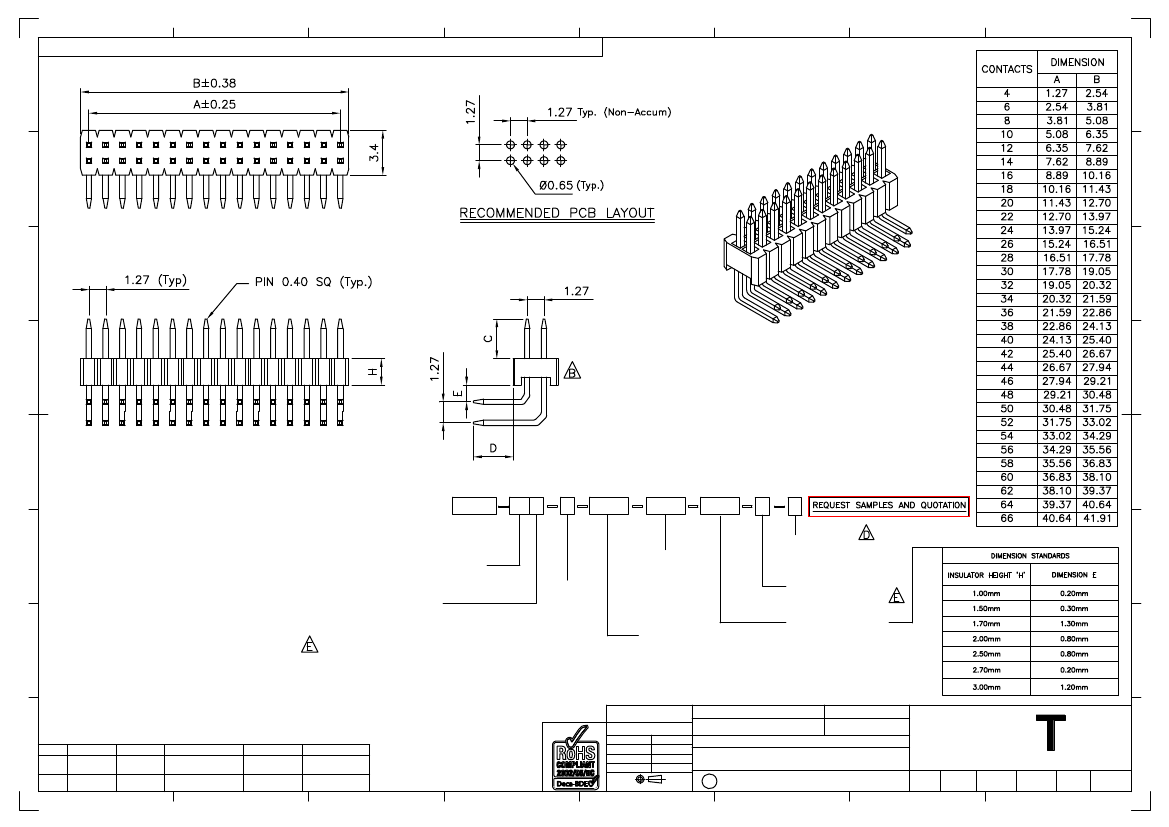

Global Connector Technology Ltd. - BD035: 1.27mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, HORIZONTAL

A

5

6

7

8

A

B

C

D

E

Ordering Grid

E

BD035

SPECIFICATIONS

规格:

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BD050

BD055

BD057

BD060

BD064

BD065

BD067

BD091

BD092

BD093

By

DETAIL

REV

DATE

VJ

DRAWING

RELEASE

A

21/12/07

PN

SIDE VIEW

AMENDED

B

17/04/09

AE

STANDARD INSULATOR

PACKING OPTIONS

INSULATOR INFO

CHANGED

AMMENDED

MATERIAL CHANGED

C

E

D

27/04/09

27/07/09

20/05/09

CB

PN

XX X

X

XXXX

N

X

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

N = Nylon 6T (Standard)

Dimension E (1/100mm)

(Centre of Pin to Insulator)

Minimum = 2 x 'H'

or specify Dimension E

(See table opposite for standards)

e.g. 2.50mm = 0250

Tol +/- 0.2mm

F

No. of Contacts

04 to 66

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

G

Insulator

Height 'H'

K = 1.0mm

A = 1.5mm

G = 1.7mm

B = 2.0mm

L = 2.5mm

M = 2.7mm

F = 3.0mm

Standard = 2.5mm

Dimension D (1/100mm)

(Tail Length)

Standard - 2.50mm = 0250

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Dimension C (1/100mm)

(Post Height)

Standard - 4.80mm = 0480

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

F

G

Part Number:-

Date:-

Dimensions in mm

X.°±5°

X.X ± 0.20

.X°±2°

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

Third Angle Projection

X. ± 0.30

BD035

Description:-

21 DEC 07

H

1.27mm PITCH PIN HEADER, DUAL ROW,

THROUGH HOLE, HORIZONTAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

E

Drawn by

VJ

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
