832-00066: DescriptionData Line Filter, 2 Function(s), 1A, LEAD FREE PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size77KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

832-00066 Overview

Data Line Filter, 2 Function(s), 1A, LEAD FREE PACKAGE-4

832-00066 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.65 Ω
filter type	DATA LINE FILTER
high	34.29 mm
inductance	32000 µH
length	43.18 mm
Manufacturer's serial number	832-00066
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L43.18XB25.4XH34.29 (mm)/L1.7XB1.0XH1.35 (inch)
Rated current	1 A
width	25.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

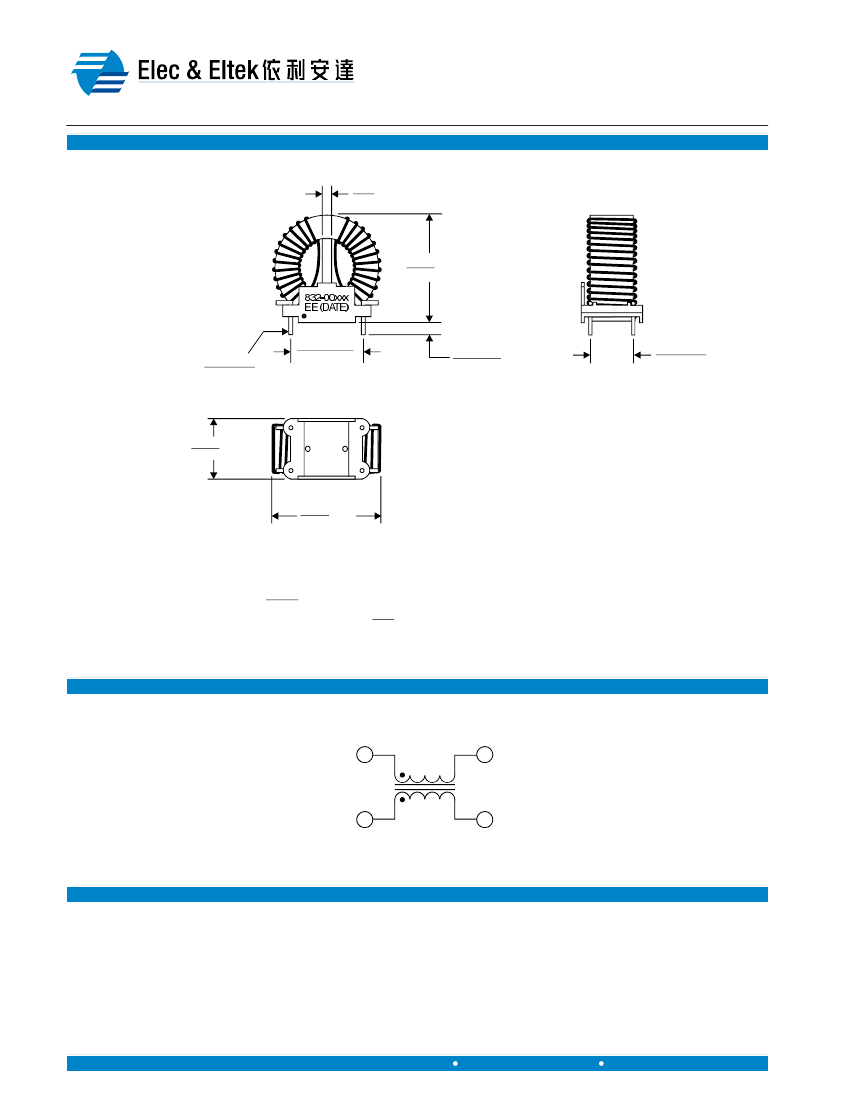

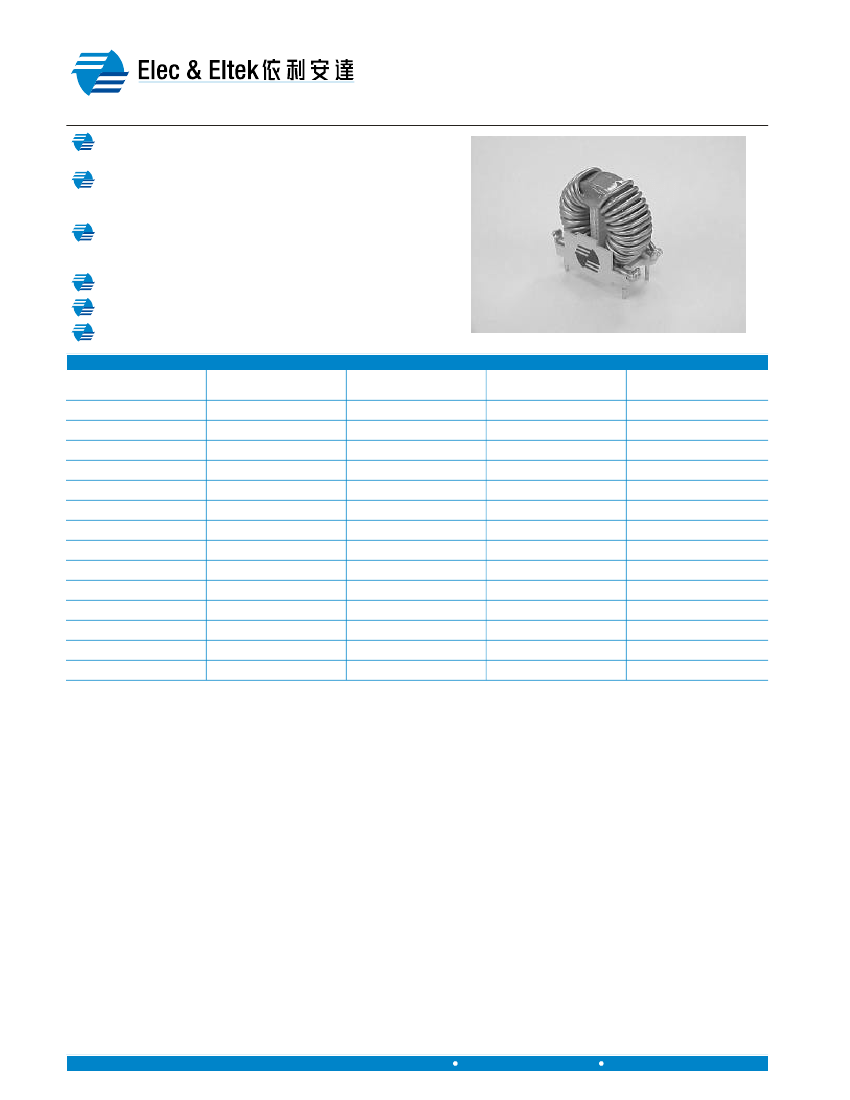

COMMON MODE CHOKE

E & E Magnetic Products Limited

Toroid Type, Vertical Mount

Effective in filtering supply lines having in-phase

S

CHEMATICS

signals of equal amplitude

Substantial attenuation can be achieved when the

part is used in conjunction with input and output

capacitors

Broad frequency range can be filtered by placing

high and low inductance common mode toroids in

series

1250 Vrms isolation between windings

Operating temperature: -40° to +85°C

Lead(Pb)-free versions are available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

832-00066

832-00065

832-00064

832-00063

832-00062

832-00061

832-00060

832-00059

832-00058

832-00057

832-00056

832-00055

832-00054

832-00053

Inductance, Ls

¹

(mH) Min.

32.0

56.0

16.0

28.0

8.0

14.0

6.6

11.5

4.0

7.0

3.0

5.2

2.5

4.4

Leakage Inductance, LL

(

µ

H) Max

485

780

210

410

58

180

49

140

37

104

40

47

42

48

DCR

(

Ω)

Max

.650

.900

.240

.330

.061

.120

.048

.088

.026

.045

.022

.025

.019

.017

Rated Current, Irms

(A) Max.

1

2

4

6

9

12

15

Notes:

1. Inductance tested at 15.75kHz, 0ADC.

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2954 3333

Fax: (852) 2954 3304

PC103(02)
