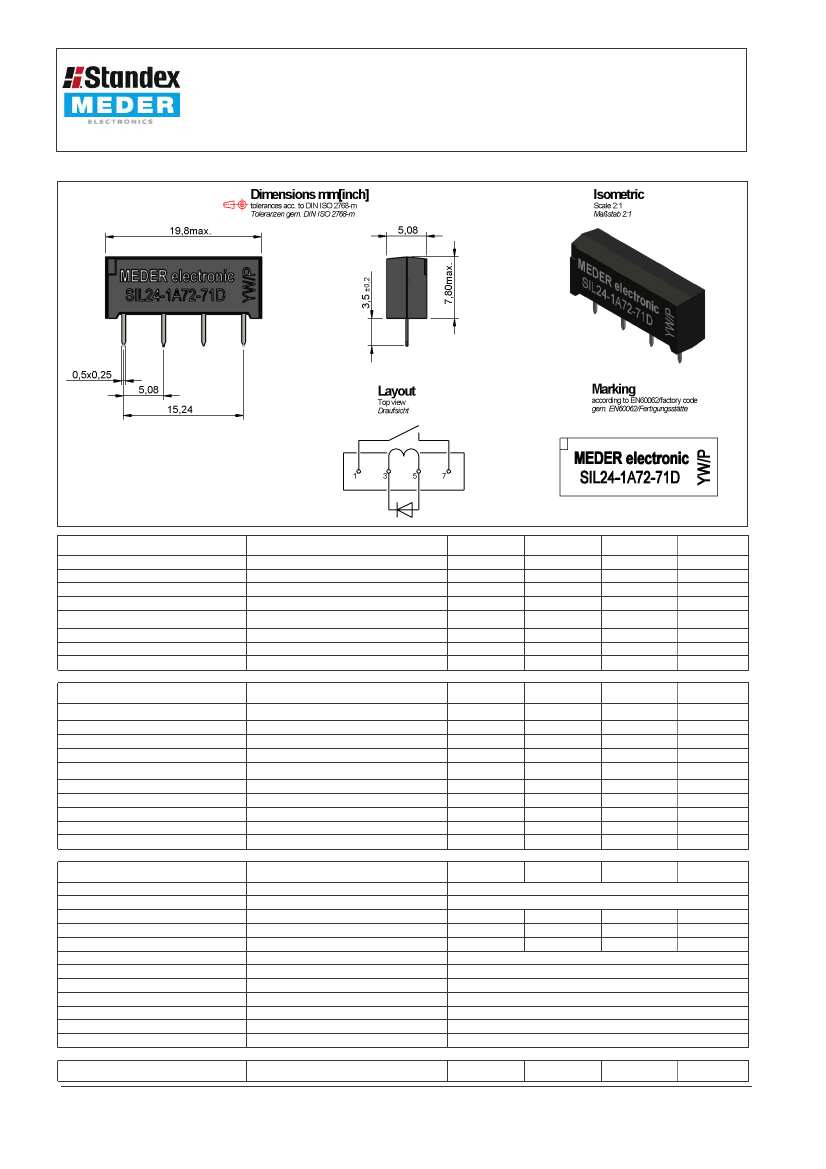

3324100171: DescriptionDry Reed Relay, SPST, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 1A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT; CategoryMechanical and electronic products relay; File Size132KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

3324100171 Overview

Dry Reed Relay, SPST, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 1A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT

3324100171 Parametric

Parameter Name	Attribute value
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	5.08 mm
body height	7.8 mm
Body length or diameter	19.8 mm
Maximum coil current (DC)	0.012 A
Coil operating voltage (DC)	16.8 V
Coil power	288 mW
Coil release voltage (DC)	3.6 V
Coil resistance	2200 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	1A@200VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@200VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	200 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3324100171
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	BULK
physical size	19.8mm x 5.08mm x 7.8mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	0.1 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1
