SMCJ1.5KE11AP

Description
Trans Voltage Suppressor Diode, 1500W, 9.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN
CategoryDiscrete semiconductor    diode
File Size781KB,5 Pages
ManufacturerMicro Commercial Components (MCC)
Environmental Compliance
Download Datasheet Parametric View All

SMCJ1.5KE11AP Overview

Trans Voltage Suppressor Diode, 1500W, 9.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN

SMCJ1.5KE11AP Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeDO-214AB
package instructionSMCJ, 2 PIN
Contacts2
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresLOW INDUCTANCE, UL RECOGNIZED
Maximum breakdown voltage11.6 V
Minimum breakdown voltage10.5 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-214AB
JESD-30 codeR-PDSO-C2
JESD-609 codee3
Maximum non-repetitive peak reverse power dissipation1500 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Certification statusNot Qualified
Maximum repetitive peak reverse voltage9.4 V
surface mountYES
technologyAVALANCHE
Terminal surfaceMATTE TIN
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperature10
Base Number Matches1
MCC
TM
Micro Commercial Components
  omponents
20736 Marilla Street Chatsworth

  !"#
$ %    !"#
SMCJ1.5KE6.8(C)A
THRU
SMCJ1.5KE550(C)A
Transient
Voltage Suppressor
6.8 to 550 Volts
1500 Watt
DO-214AB
(SMCJ) (LEAD
FRAME)
G
Features
For surface mount applicationsin in or der to optimize
boar d space
L ow pr ofil e package
Fast response time: typical less than 1.0ps from 0 volts to
V
BR
minimum
Low inductance
Excellent clamping capability
UL Recognized File # E222849
Mechanical Data
Case:
Molded Plastic. UL Flammability Classification Rating 94V-0
Terminals: solderable per MIL-STD-750, Method 2026
Polarity: Color band denotesposit ive end (cathode)
except Bidirectional
Maximum soldering temperature: 260 C for 10 seconds
o
H
D
A
C
Maximum Ratings @ 25
o
C Unless Otherwise Specified
Peak Pulse Current on
I
PP
See Table 1 Note: 1
10/1000us waveform
Peak Pulse Power
P
PP
1500W
Note: 1,
Dissipation
Peak Forward Surge
I
FSM)
200A
Note: 3
Current
Operation And Storage T
J
, T
STG
Temperature Range
-55
o
C to
+150
o
C
E
B
F
DIMENSIONS
INCHES
MIN
.079
.108
.002
.006
.030
..305
.260
.220
MM
MIN
2.00
2.75
0.051
0.152
0.76
7.75
6.60
5.59
DIM
A
B
C
D
E
F
G
H
MAX
.103
.128
.008
.012
.050
.320
.280
.245
MAX
2.62
3.25
0.203
0.305
1.27
8.13
7.11
6.22
NOTE
SUGGESTED SOLDER
PAD LAYOUT
0.185
NOTES:
0.121”
1.
2.
3.

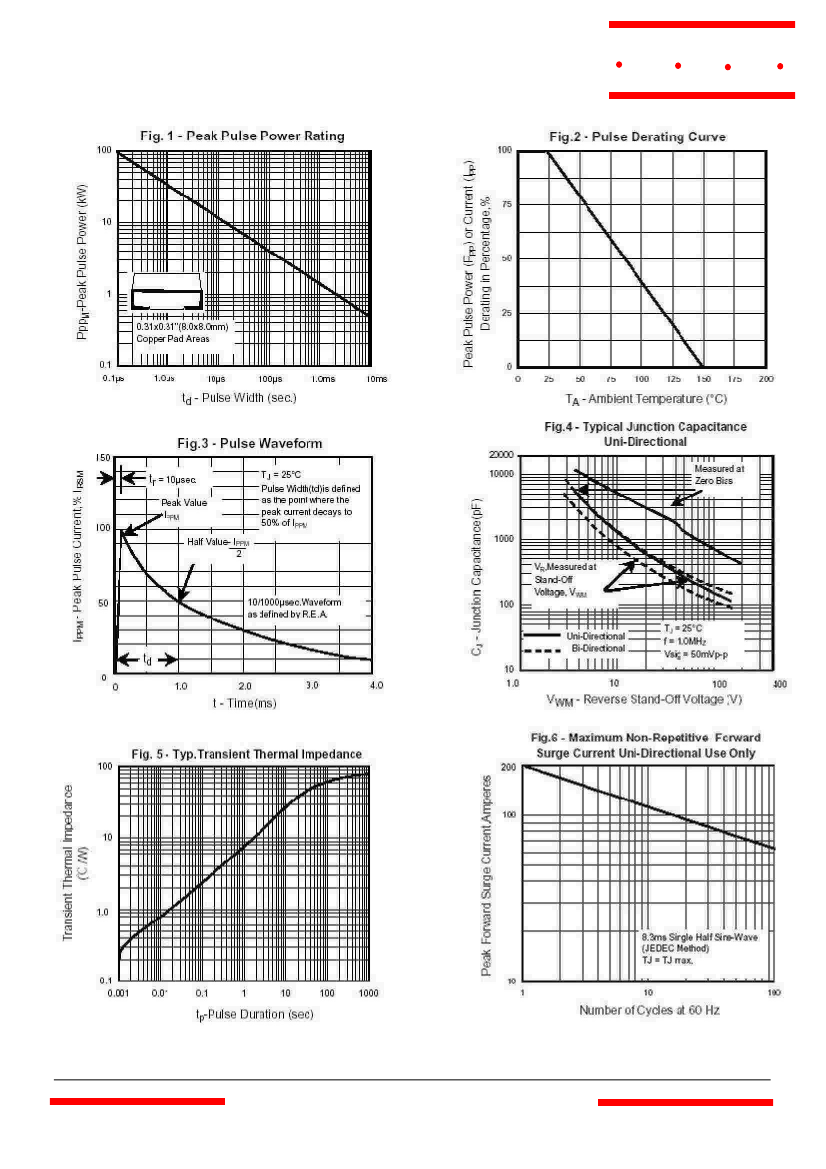

Non-repetitive current pulse, per Fig.3 and derated above
o
T
A
=25 C per Fig.2.
2
Mounted on 8.0mm copper pads to each terminal.
8.3ms, single half sine wave duty cycle=4 pulses per. Minute
maximum.
0.060”
www.mccsemi.com
Revision: 3
1 of 5
2006/08/19
